Panasonic Projector PT-DZ10K Specifications

PT-DZ13K
PT-DS12K
PT-DW11K
PT-DZ10K
3-Chip DLP™ Projectors
PT-DZ13K Series
The New Era of Professional Visual Imaging

The Panasonic PT-DZ13K Series of 3-chip DLP™ projectors combine high levels of
picture quality, reliability, function and system expandability into a compact body.
Packed with original, advanced Panasonic technology, these projectors supply
the !exibility to meet a wide range of applications.
Higher Brightness, Picture Quality and
Reliability—All in a Compact Body

Detail Clarity Processor 3 Gives Natural Clarity to Even the Finest Details
This  unique  Panasonic  circuit  optimizes  the sharpness  of  each  image,  based  on  the superhigh-,  high-,  medium-,  and  low- frequency  components  of  the  extracted image  information.  The  resulting  images have  more  natural,  lifelike  expression.
It combines with either a separate, external 100/120/144 Hz drive with IR emitter and active shutter glasses, or an active filter and passive glasses, for viewing 3D...

System Integration
Flexibility
Reliability and
Stability
A Wide Selection of Lenses (optional)
Choose  from  a  wide  lineup  of  lenses  for your  system,  including  short-throw,  long-throw  zoom  and  fixed-throw  lenses  for  rear projection  use.  The  additional  lenses  make it  easy  to  adapt  your  projector  to  the installation  site.  The  lenses  attach  and detach  with  one-touch  ease.
Lens Memory*10
The  settings  of  projection  size,  lens  shiftposition,  and  focus/zoom  can  be...

PT-
DZ13K  Series

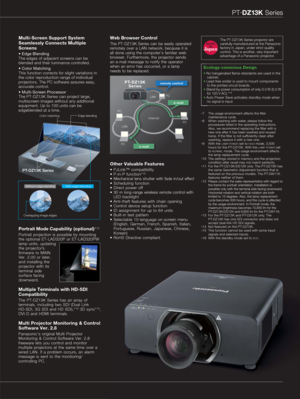

Multi-Screen Support System
Seamlessly Connects Multiple
Screens
• Edge Blending
The edges of adjacent screens can be
blended and their luminance controlled.
• Color Matching
This function corrects for slight variations in
the color reproduction range of individual
projectors. The PC software assures easy,
accurate control.
• Multi-Screen Processor
The PT-DZ13K Series can project large,
multiscreen images without any additional
equipment. Up to 100 units can be
edgeblended at a...

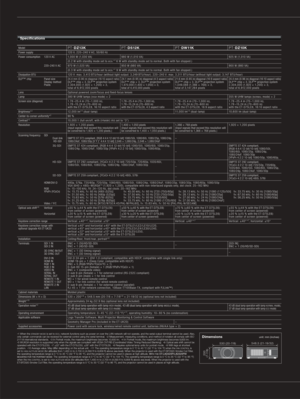

Specifications
Dimensions
24.4 mm (0.96 in) diagonal (16:10 aspect ratio)DLP™ chip ! 3, DLP™ projection system
2,304,000 (1,920  ! 1,200)  ! 3,
total of 6,912,000 pixels
380 W UHM lamps (
HIGH mode) ! 2
1.7 8 – 2 5 .4 m ( 70 – 1,0 0 0 in),
1.7 8 –15 . 24 m ( 70 – 6 0 0 in)
with the ET-D75LE8, 16:10 aspect ratio
12,0 0 0 lm*
3 (dual-lamp)
1, 9 2 0  ! 1, 2 0 0 p i xels
(Input signals that exceed this resolution will
be converted to 1,920  ! 1,200 pixels.)
SMPTE ST 372 compliant, [RGB 4:4:4...

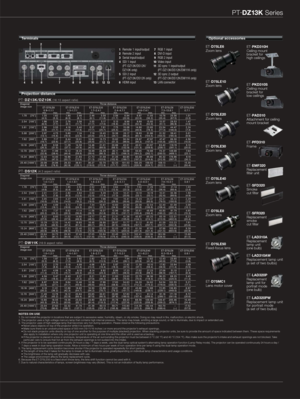

PT-DZ13K Series
PT-DS12K (4:3 aspect ratio)
PT-DW11K (16:9 aspect ratio)
PT-DZ13K/DZ10K (16:10 aspect ratio)
ET-D75LE500.7:1ET-D75LE87. 3 –13 . 8 : 1ET-D75LE404.6–7.4:1ET-D75LE302.4–4.7:1
Throw distanceET-D75LE201.7–2.4:1ET-D75LE101. 3 –1.7:1ET-D75LE60.9–1.1:1
Diagonal image size
1.78
2.54
3.81
5.08
7. 6 2
10.16
12.70
15. 24
25.40
[70˝]
[100˝ ]
[150˝ ]
[200˝ ]
[300˝ ]
[400 ˝ ]
[500˝ ]
[600˝ ]
[1000˝ ]
max.min.max.min.max.min.max.min.max.min.max.min.1.01
1.47
2.24
3.01
4.56
6.10
7. 6 4
9.18
15.3 5
20.56...

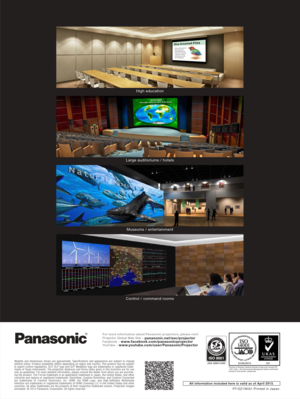

High education
PT-DZ13KG1 Printed in Japan.
All information included here is valid as of April 2013.
Weights  and  dimensions  shown  are  approximate.  Specifications  and  appearance  are  subject  to  change without notice. Product availability differs depending on region and country. This product may be subject to export control regulations. DLP, DLP logo and DLP Medallion logo are trademarks or registered trade- marks of Texas Instruments. The projection distances and throw ratios given in this...
