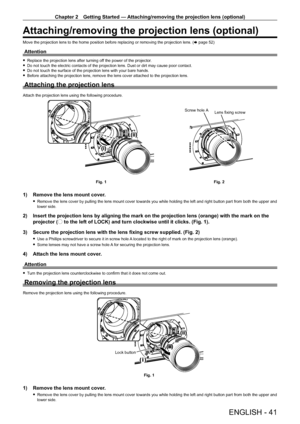

Panasonic Projector PT-DZ16KU User Manual

Chapter 2 Getting Started — Attaching/removing the projection lens (optional)
ENGLISH - 41
Attaching/removing the projection lens (optional)
Move the projection lens to the home position before replacing or removing the projection lens. (x   page   52)
Attention
 fReplace the projection lens after turning of f the power of the projector. fDo not touch the electric contacts of the projection lens. Dust or dirt may cause poor contact. fDo not touch the surface of the projection lens with your bare hands....

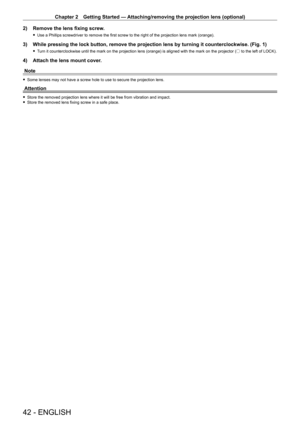

Chapter 2 Getting Started — Attaching/removing the projection lens (optional)
42 - ENGLISH
2) Remove the lens fixing screw.
 fUse a Phillips screwdriver to remove the first screw to the right of the projection lens mark (orange).
3) While pressing the lock button, remove the projection lens by turning it counterclockwise. (Fig. 1)
 fTurn it counterclockwise until the mark on the projection lens (orange) is aligned with the mark on the projector ( E to the left of LOCK).
4) Attach the lens mount cover....

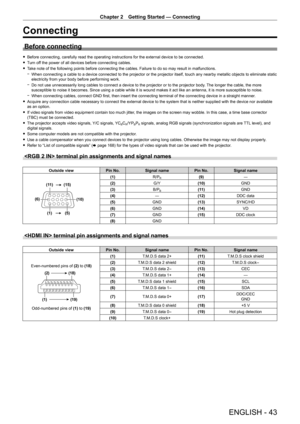

Chapter 2 Getting Started — Connecting
ENGLISH - 43
Connecting
Before connecting
 fBefore connecting, carefully read the operating instructions for the external device to be connected.
 fT

urn off the power of all devices before connecting cables.
 fT

ake note of the following points before connecting the cables. Failure to do so may result in malfunctions.
 g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static...

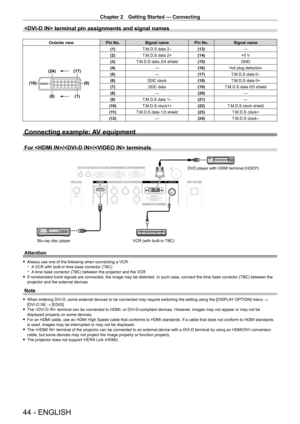

Chapter 2 Getting Started — Connecting
44 - ENGLISH
 terminal pin assignments and signal names
Outside viewPin No.Signal name Pin No.Signal name
(17)
(24)
(16)
(9)
(1)
(8)
(1) T.M.D.S data 2-(13) —
(2) T.M.D.S data 2+ (14)+5
  V
(3) T.M.D.S data 2/4 shield (15)GND
(4) —(16)Hot plug detection
(5) —(17)T.M.D.S data 0
-
(6) DDC clock (18)T.M.D.S data 0+
(7) DDC data (19)T.M.D.S data 0/5 shield
(8) —(20) —
(9) T.M.D.S data 1
-(21) —
(10) T.M.D.S clock1+ (22)T.M.D.S clock shield
(11) T.M.D.S data 1/3 shield...

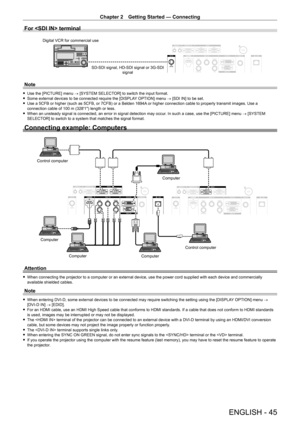

Chapter 2 Getting Started — Connecting
ENGLISH - 45
For  terminal
SD-SDI signal, HD-SDI signal or 3G-SDI signal
Digital VCR for commercial use
Note
 f
Use the [PICTURE] menu  → [SYSTEM SELECTOR] to switch the input format. fSome external devices to be connected require the [DISPLA
Y OPTION] menu → [SDI IN] to be set.
 fUse a 5CFB or higher (such as 5CFB, or 7CFB) or a Belden 1694A

 or higher connection cable to properly transmit images. Use a
connection cable of 100
  m (328'1") length or...

46 - ENGLISH
Chapter 3 Basic Operations
This chapter describes basic operations to start with.

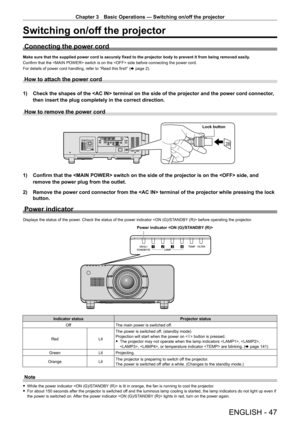

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 47
Switching on/off the projector
Connecting the power cord
Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily.
Confirm that the  switch is on the  side before connecting the power cord.
For details of power cord handling, refer to “Read this first!” ( x page 2).
How to attach the power cord
1) Check the shapes of the  terminal on the side of the projector and the...

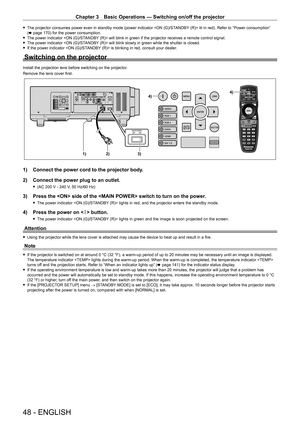

Chapter 3 Basic Operations — Switching on/off the projector
48 - ENGLISH
 fThe projector consumes power even in standby mode (power indicator  lit in red). Refer to “Power consumption”
(x   page   170) for the power consumption.
 fThe power indicator  will blink in green if the projector receives a remote control signal.
 fThe power indicator  will blink slowly in green while the shutter is closed.
 fIf the power indicator  is blinking in red, consult your dealer.
Switching on the projector
Install the...

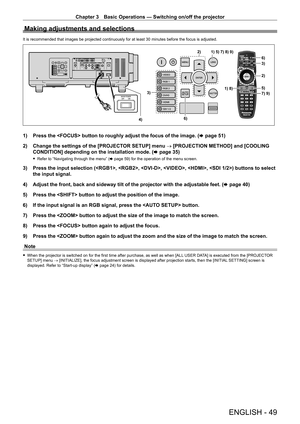

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 49
Making adjustments and selections
It is recommended that images be projected continuously for at least 30 minutes before the focus is adjusted.
1) 8)5)
6)
3)
7) 9)3)
2)
4) 1) 5) 7) 8) 9)
2)
6)
1) Press the  button to roughly adjust the focus of the image. ( x   page   51)
2)
Change the settings of the [PROJECT
 OR SETUP] menu → [PROJECTION METHOD] and [COOLING
CONDITION] depending on the installation mode. ( x
  page   35)...

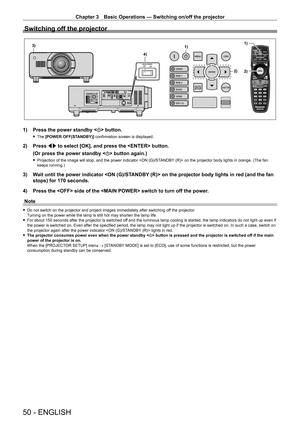

Chapter 3 Basic Operations — Switching on/off the projector
50 - ENGLISH
Switching off the projector
1)
2)
1)
4)3)
2)
1) Press the power standby < v> button.
 fThe  [POWER OFF(STANDBY)] confirmation screen is displayed.
2) Press  qw to select [OK], and press the  button.
(Or press the power standby < v> button again.)
 fProjection of the image will stop, and the power indicator  on the projector body lights in orange. (The fan
keeps running.)
3) Wait until the power indicator  on the projector body...
