Panasonic Projector PT-DZ21KU User Manual

[NETWORK] menu
ENGLISH - 141
Settings
▶■[Authentication set up] page
You can set the authentication items when POP authentication or SMTP authentication is necessary to send
an E-mail message.
Click [Detailed set up] → [Authentication set up].
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(1) [Auth] Select the authentication method specified by your
Internet service provider.
(2) [SMTP Auth] Set when the SMTP authentication is selected.
(3) [POP server name] Enter the POP server name. (Up to 63 characters in
single...

[NETWORK] menu
142 - ENGLISH
Settings
▶■Contents of mail sent
▶z
Example of E-mail sent when E-mail is set
The following E-mail is sent when the E-mail settings have been established.

[NETWORK] menu
ENGLISH - 143
Settings
▶zExample of the E-mail sent for an error
The following E-mail is sent when an error has occurred.

[NETWORK] menu
144 - ENGLISH
Settings
▶■User name [Change password] page
Click [Change password].
(1)
(2)
(3)
(1) [Administrator]
Used to change the setting of the [Administrator].
(2) [User] Used to change the setting of the [User].
(3) [Next] Used to change the setting of the password.
▶z[Administrator] account
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(1) [Account]
Displays the account to change.
(2) [Current][User name] Enter the user name before the change.
(3) [Current][Password] Enter the current password.
(4)...

[NETWORK] menu
ENGLISH - 145
Settings
▶z[User] account
(1)
(2)
(3)
(5) (4)
(1) [Account]
Displays the account to change.
(2) [New][User name] Enter the desired new user name. (Up to 16
characters in single byte)
(3) [New][Password] Enter the desired new password. (Up to 16 characters
in single byte)
(4) [New][Password(Retype)] Enter the desired new password again.
(5) [OK] Determines the change of password.
▶z[Change password] (For user rights)
Only the change of password is enabled under the user...

Lamp/Temperature/Filter Indicators
146 - ENGLISH
Maintenance
Lamp/Temperature/Filter Indicators
Managing the indicated problems
If a problem should occur inside the projector, the lamp indicators ///, the
temperature indicator , and the filter indicator  will inform you by lighting or flashing.
Check the status of the indicators and manage the indicated problems as follows.Attention
 z When switching of

f the power to deal with problems, make sure to follow the procedure in “Switching of f the...

Lamp/Temperature/Filter Indicators
ENGLISH - 147
Maintenance
▶■Temperature indicator
Indicator
status Lighting in red Flashing in red
(2 times) Flashing in red
(3 times)
Status Warm-up status Internal
temperature
is high.
(WARNING)Internal temperature is high
(standby mode)
The cooling fan has
stopped.
Cause
 z Did you turn on the
power when the
room temperature
was about 0°C
(32°F)? zIs the air intake/exhaust port blocked?
 zIs the room temperature high?
 zIs the filter indicator  not lit?
―...

Maintenance/replacement
148 - ENGLISH
Maintenance
Maintenance/replacement
Before maintaining/replacing the unit
 zMake sure to turn of
f the power before maintaining or replacing the unit. ( pages 50, 53)
 zW

hen switching off the projector, make sure to follow the procedures in “Switching off the projector” (
 page 53).
Maintenance
▶■ Outer case
Wipe off dirt and dust with a soft, dry cloth.
▶z
If the dirt is persistent, soak the cloth with water and wring it thoroughly before wiping. Dry of
f the...

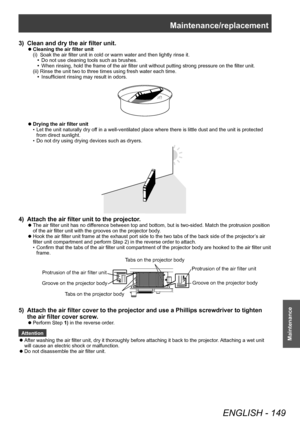

Maintenance/replacement
ENGLISH - 149
Maintenance
3) Clean and dry the air filter unit.
 zCleaning the air filter unit
(i)

Soak the air filter unit in cold or warm water and then lightly rinse it.
•

▶
Do not use cleaning tools such as brushes.
•

▶
When rinsing, hold the frame of the air filter unit without putting strong pressure on the filter unit.
(ii)


Rinse the unit two to three times using fresh water each time.
•

▶
Insufficient rinsing may result in odors.
 zDrying the air filter unit
•...

Maintenance/replacement
150 - ENGLISH
Maintenance
Note
 zT

ake care not to touch the radiator fin when removing dirt or dust.
 zMake sure that the air filter unit is properly attached before using the projector
. If it is not properly attached, the
projector will suck in dirt and dust causing a malfunction.
–

▶
If you use the projector without attaching the air filter unit, the message appears on the projection screen for
approximately 30 seconds.
 zReplace the air filter unit with a replacement...
