Panasonic Projector PT-EW730Z User Manual

Chapter 6 Appendix — Technical information
ENGLISH - 141

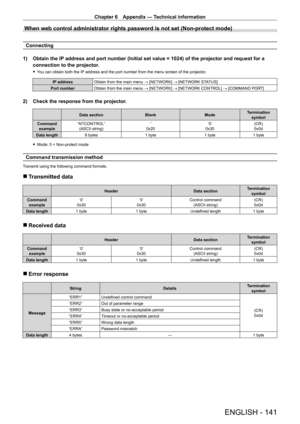

When web control administrator rights password is not set (Non-protect mode)
Connecting
1)  Obtain the IP address and port number (Initial set value = 1024) of the projector and request for a
connection to the projector.

f You can obtain both the IP address and the port number from the menu screen of the projector.
IP address
Obtain from the main menu → [NETWORK]  → [NETWORK STATUS]
Port number Obtain from the main menu → [NETWORK]  → [NETWORK...

Chapter 6 Appendix — Technical information
142 - ENGLISH

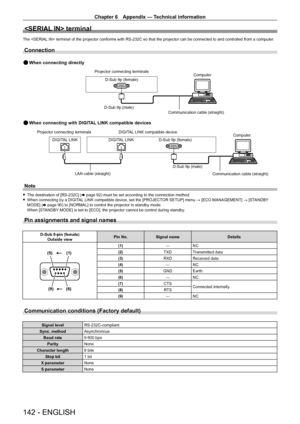

 terminal
The  terminal of the projector conforms with RS-232C so that the projector can be connected to and controlled from a computer.
Connection
LAN cable (straight)
Communication cable (straight)
D-Sub 9p (male)
D-Sub 9p (female)
DIGITAL LINK
DIGITAL LINK Computer
DIGITAL LINK compatible device
Projector connecting terminals
When connecting with DIGITAL LINK compatible devices
Communication cable (straight)
D-Sub 9p (male) D-Sub 9p (female)...

Chapter 6 Appendix — Technical information
ENGLISH - 143

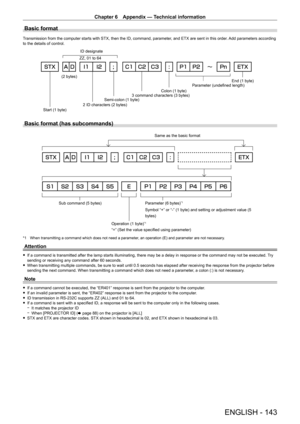

Basic format
Transmission from the computer starts with STX, then the ID, command, parameter, and ETX are sent in this order. Add parameters according
to the details of control.
(2 bytes)2 ID characters (2 bytes)Semi-colon (1 byte) Colon (1 byte)
3 command characters (3 bytes) Parameter (undefined length)
Start (1 byte) ZZ, 01 to 64
ID designate
End (1 byte)
Basic format (has subcommands)
Parameter (6 bytes)*1
Symbol “+” or “-” (1 byte) and...

Chapter 6 Appendix — Technical information
144 - ENGLISH

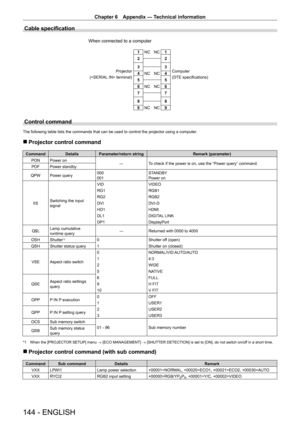

Cable specification
1NC    NC 1
2 2
3 3
4 NC    NC 4
5 5
6 NC    NC 6
7 7
8 8
9 NC    NC 9
When connected to a computer
Projector
( terminal) Computer
(DTE specifications)
Control command
The following table lists the commands that can be used to control the p\
rojector using a computer.

r Projector control command
Command DetailsParameter/return string Remark (parameter)
PON Power on
―To check if the power is on, use the “Power query” command....

Chapter 6 Appendix — Technical information
ENGLISH - 145

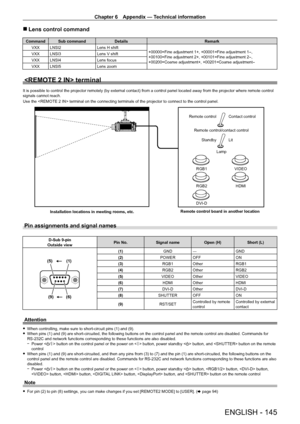

r Lens control command
Command Sub command Details Remark
VXX LNSI2 Lens H shift
+00000=Fine adjustment 1+, +00001=Fine adjustment 1
-,
+00100=Fine adjustment 2+, +00101=Fine adjustment 2-,
+00200=Coarse adjustment+, +00201=Coarse adjustment-
VXX LNSI3 Lens V shift
VXX LNSI4 Lens focus
VXX LNSI5 Lens zoom
 terminal
It is possible to control the projector remotely (by external contact) from a control panel located away from the projector where...

Chapter 6 Appendix — Technical information
146 - ENGLISH

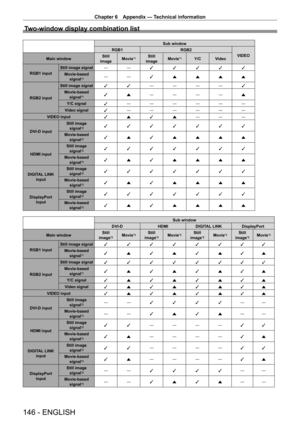

Two-window display combination list
Sub window
RGB1 RGB2
VIDEO
Main window Still
image Movie
*1Still
image Movie*1Y/C
Video
RGB1 input Still image signal
――
lllll
Movie-based  signal
*1― ―
la aaa
RGB2 input Still image signal
ll―
―――
l
Movie-based  signal
*1l a ―
―――
a
Y/C signal l―
― ――――
Video signal l―
― ――――
VIDEO input la la ―
――
DVI-D input Still image
signal
*2l ll llll
Movie-based  signal
*3l a la aaa
HDMI input Still image
signal
*2l...

Chapter 6 Appendix — Technical information
ENGLISH - 147

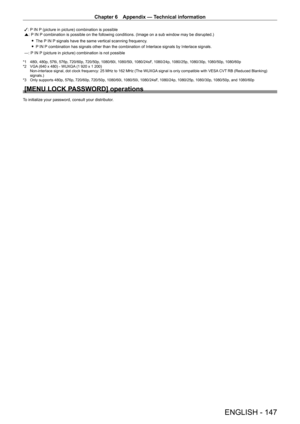

l: P IN P (picture in picture) combination is possible
a: P IN P combination is possible on the following conditions. (Image on a sub window may be disrupted.)
f The P IN P signals have the same vertical scanning frequency.

f P IN P combination has signals other than the combination of Interlace signals by Interlace signals.
―: P IN P (picture in picture) combination is not possible
*1  480i, 480p, 576i, 576p, 720/60p, 720/50p, 1080/60i,...

Chapter 6 Appendix — Technical information
148 - ENGLISH

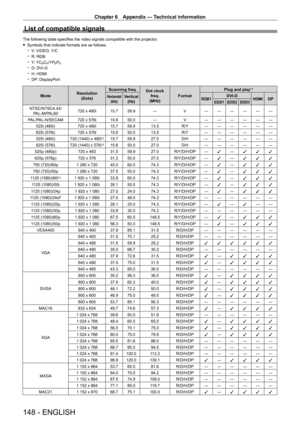

List of compatible signals
The following table specifies the video signals compatible with the projector.

f Symbols that indicate formats are as follows.

g V: VIDEO, Y/C

g R: RGB

g Y: YC
BCR/YPBPR
g D: DVI-D

g H: HDMI

g DP: DisplayPort
Mode Resolution
(Dots) Scanning freq.
Dot clock
freq.
(MHz) Format Plug and play
*1
Horizontal
(kHz)Vertical(Hz)RGB1DVI-DHDMIDPEDID1 EDID2EDID3
NTSC/NTSC4.43/
PAL-M/PAL60 720 x 480i
15.759.9 ― V――――――...

Chapter 6 Appendix — Technical information
ENGLISH - 149

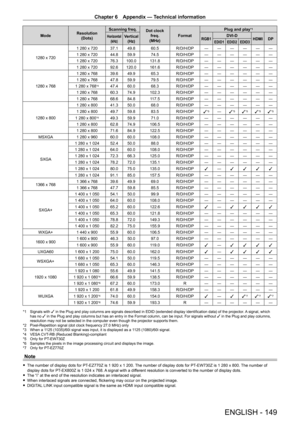

ModeResolution
(Dots) Scanning freq.
Dot clock
freq.
(MHz) Format Plug and play
*1
Horizontal
(kHz)Vertical(Hz)RGB1DVI-DHDMIDPEDID1 EDID2EDID3
1280 x 720 1 280 x 720
37.149.8 60.5 R/D/H/DP ――――――
1 280 x 720 44.859.9 74.5 R/D/H/DP ――――――
1 280 x 720 76.3100.0 131.8 R/D/H/DP ――――――
1 280 x 720 92.6120.0 161.6 R/D/H/DP ――――――
1280 x 768 1 280 x 768
39.649.9 65.3 R/D/H/DP ――――――
1 280 x 768 47.859.9 79.5 R/D/H/DP ――――――
1 280 x 768
*447.4 60.0 68.3...

Chapter 6 Appendix — Technical information
150 - ENGLISH

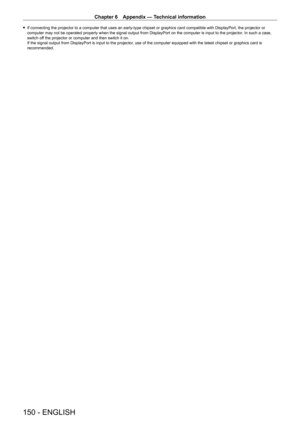

f If connecting the projector to a computer that uses an early-type chipset or graphics card compatible with DisplayPort, the projector or
computer may not be operated properly when the signal output from DisplayPort on the computer is input to the projector . In such a case,
switch off the projector or computer and then switch it on.
If the signal output from DisplayPort is input to the projector, use of the computer equipped with the latest...
