Panasonic Projector PT-EW730Z User Manual

Here you can view all the pages of manual Panasonic Projector PT-EW730Z User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.

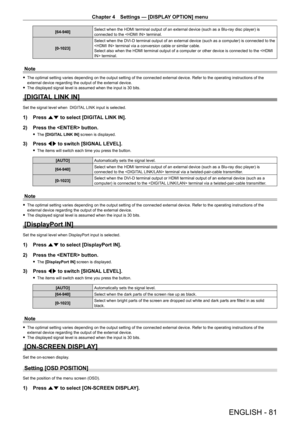

Page 81

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 81
[64-940]Select when the HDMI terminal output of an external device (such as a Blu-ray disc player) is
connected to the  terminal.
[0-1023] Select when the DVI-D terminal output of an external device (such as a computer) is connected to the
 terminal via a conversion cable or similar cable.
Select also when the HDMI terminal output of a computer or other device is connected to the  terminal.
Note

f The optimal setting varies depending on the...

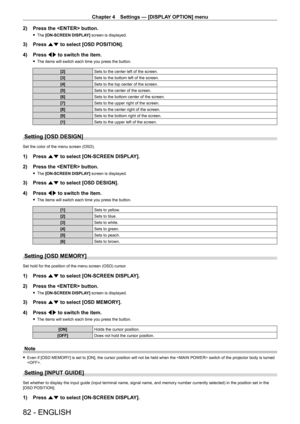

Page 82

Chapter 4 Settings — [DISPLAY OPTION] menu
82 - ENGLISH
2) Press the  button.

f The [ON-SCREEN DISPLAY] screen is displayed.
3)  Press as to select [OSD POSITION].
4)  Press qw to switch the item.

f The items will switch each time you press the button.
[2] Sets to the center left of the screen.
[3] Sets to the bottom left of the screen.
[4] Sets to the top center of the screen.
[5] Sets to the center of the screen.
[6] Sets to the bottom center of the screen.
[7] Sets to the upper right of the...

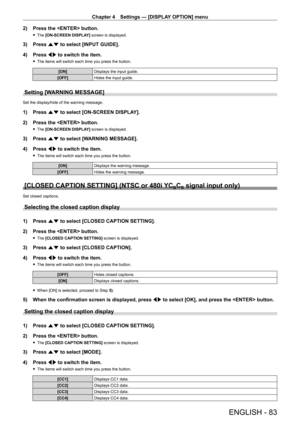

Page 83

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 83
2) Press the  button.

f The [ON-SCREEN DISPLAY] screen is displayed.
3)  Press as to select [INPUT GUIDE].
4)  Press qw to switch the item.

f The items will switch each time you press the button.
[ON] Displays the input guide.
[OFF] Hides the input guide.
Setting [WARNING MESSAGE]
Set the display/hide of the warning message.
1) Press as to select [ON-SCREEN DISPLAY].
2)  Press the  button.

f The [ON-SCREEN DISPLAY] screen is displayed.
3)...

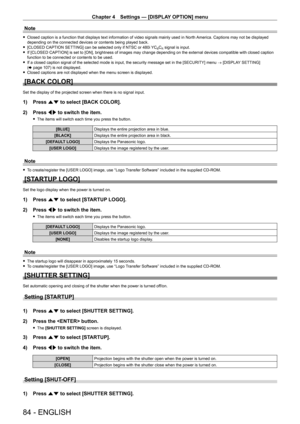

Page 84

Chapter 4 Settings — [DISPLAY OPTION] menu
84 - ENGLISH
Note

f Closed caption is a function that displays text information of video signals mainly used in North  America. Captions may not be displayed
depending on the connected devices or contents being played back.

f [CLOSED CAPTION SETTING] can be selected only if NTSC or 480i YC
BCR signal is input.

f If [CLOSED CAPTION] is set to [ON], brightness of images may change depending on the external devices compatible with closed caption
function to...

Page 85

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 85
2) Press the  button.

f The [SHUTTER SETTING]  screen is displayed.
3) Press as to select [SHUT-OFF].
4)  Press qw to switch the item.
[KEEP CURRENT STATE] When the projector is switched off, the projector turns into standby with the shutter status as is.
[OPEN] When the projector is switched off, the projector turns into standby with the shutter left opened.
[CLOSE] When the projector is switched off, the projector turns into standby with the...

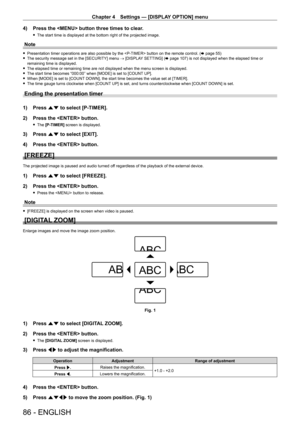

Page 86

Chapter 4 Settings — [DISPLAY OPTION] menu
86 - ENGLISH
4) Press the  button three times to clear.

f The start time is displayed at the bottom right of the projected image.
Note

f Presentation timer operations are also possible by the  button on the remote control. ( x page 55)

f The security message set in the [SECURITY] menu → [DISPLAY SETTING] ( x page 107) is not displayed when the elapsed time or
remaining time is displayed.

f The elapsed time or remaining time are not displayed when the...

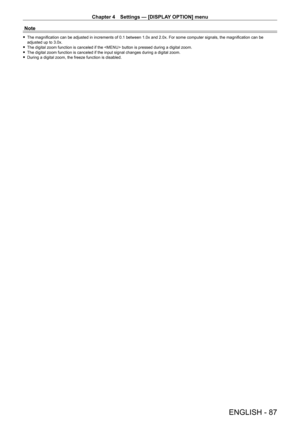

Page 87

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 87
Note

f The magnification can be adjusted in increments of 0.1 between 1.0x and 2.0x. For some computer signals, the magnification can be
adjusted up to 3.0x.

f The digital zoom function is canceled if the  button is pressed during a digital zoom.

f The digital zoom function is canceled if the input signal changes during\
 a digital zoom.

f During a digital zoom, the freeze function is disabled.

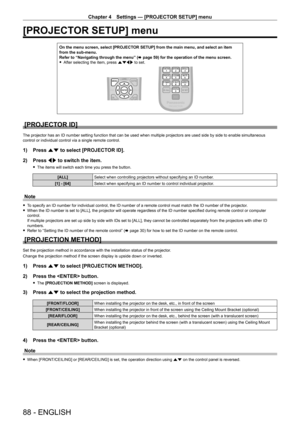

Page 88

Chapter 4 Settings — [PROJECTOR SETUP] menu
88 - ENGLISH
[PROJECTOR SETUP] menu
On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item
from the sub-menu.
Refer to “Navigating through the menu” (x page 59) for the operation of the menu screen.

f After selecting the item, press asqw  to set.
[PROJECTOR ID]
The projector has an ID number setting function that can be used when multiple projectors are used side by side to enable simultaneous
control or individual control via a...

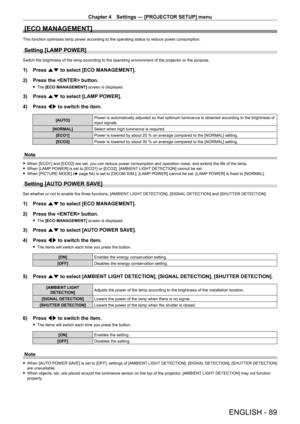

Page 89

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 89
[ECO MANAGEMENT]
This function optimizes lamp power according to the operating status to \
reduce power consumption.
Setting [LAMP POWER]
Switch the brightness of the lamp according to the operating environment of the projector or the purpose.
1) Press as to select [ECO MANAGEMENT].
2)  Press the  button.

f The [ECO MANAGEMENT] screen is displayed.
3)  Press as to select [LAMP POWER].
4)  Press qw to switch the item.
[AUTO] Power is automatically...

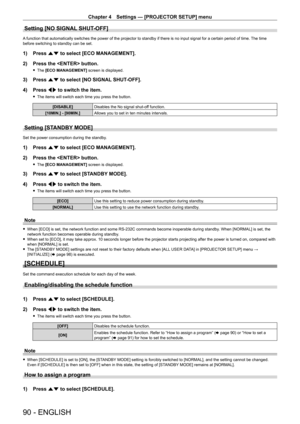

Page 90

Chapter 4 Settings — [PROJECTOR SETUP] menu
90 - ENGLISH
Setting [NO SIGNAL SHUT-OFF]
A function that automatically switches the power of the projector to standby if there is no input signal for a certain period of time. The time
before switching to standby can be set.
1) Press as to select [ECO MANAGEMENT].
2)  Press the  button.

f The [ECO MANAGEMENT] screen is displayed.
3)  Press as to select [NO SIGNAL SHUT-OFF].
4)  Press qw to switch the item.

f The items will switch each time you press the...
