Panasonic Projector PT-FW530 Specifications

LCD Projectors
PT-FZ570 Series
PT-FZ570
PT-FW530
PT-FX500
Learning Comes Easy with Bright and Efficient Dustproof Projection
Dust-resistant
for lasting
brightness!

2* Requires optional ET-WML100 Wireless Module
Get Better Results and Better Economy with Panasonic
Simplified Installation and
System Integration
Versatile Features for
Best Results in Any Space
User-friendly Wired or Wireless* Projection
Dustproof Design to Maintain Brightness
Whisper Quiet to Prevent Distractions
Brilliant Picture Quality in Bright Rooms
Endurance is the defining quality of our PT-FZ570
Series projector. Engineered to extend
picture-perfect performance, it features a new
dustproof...

3
Compact Design Delivers Up to 5,000 lm
PT-FX500 features 5,000 lm and PT-FZ570/FW530 4,500 lm of brightness to
produce bright and clear images even with the lights on. Documents with text
and graphics are easy to read, while still images and video are reproduced with
colorful vibrancy.
Image Optimization for Bright Ambient Light
Panasonic’s original Daylight View Basic uses a built-in sensor to measure
ambient light and calibrate image projection to suit, optimizing brightness and
halftone color...

 Pre-filter Main filter
4
Curved Screen
Correction Vertical,
Horizontal,
and Corner
Keystone
Correction
Vertical Horizontal
4 Corners H Linearity* V Linearity*
Ver tical ARC
Horizontal ARC Ver tical Balance*
Dustproof Cabinet with Dual-Layer Eco Filter
Wide-Range 1.8x Zoom and Lens Shift
PT-FZ570 Series projectors extend lamp replacement to 8,000 hours
(with lamp power set to Eco) or 6,000 hours (lamp power set to
Normal), significantly reducing operating costs, labor, and
environmental impact....

5

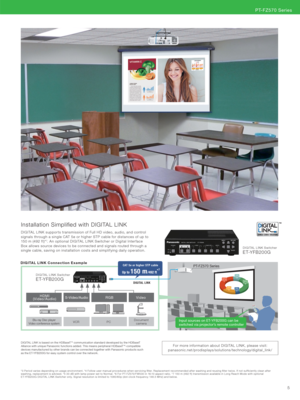

DIGITAL LINK supports transmission of Full HD video, audio, and control
signals through a single CAT 5e or higher STP cable for distances of up to
150 m (492 ft)*
7. An optional DIGITAL LINK Switcher or Digital Interface
Box allows source devices to be connected and signals routed through a
single cable, saving on installation costs and simplifying daily operation.
Installation Simplified with DIGITAL LINK
*3 Period varies depending on usage environment. *4 Follow user manual procedures when...

6
A symmetrical lens-centered design reduces
installation complexity and makes these
projectors easier to adapt to a wider range of
installation sites.
Lens-Centered Design
The optional ET-WML100 wireless USB module enables projection of a
variety of media via Windows® PCs, iOS devices, or Android™ devices
loaded with an appropriate app. Whether projecting from
desk or ceiling, there’s no need for cables—and it’s also
possible to display content from more than one device at a
time in Multi-Live...

7
Lower edge of projected image Upper edge of projected image
L
Projected image
L
H
H
* The value for H (the height from the edge of the screen to the centre of the lens) is the value when the horizontal optical axis shif t function is not used. The value decreases when the horizontal optical a xis shif t function is used.
Note: The value for L (distance to screen) varies slightly depending on the zoom lens characteristics. At the shortest projection distance, the zoom lens characteristics may cause...

For more information about Panasonic projectors, please visit :
Projector Global Website – panasonic.net/avc/projectorFacebook – www.facebook.com/panasonicprojectorYouTube – www.youtube.com/user/PanasonicProjector
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without
notice. Product availability differs depending on region and country. This product may be subject to export control
regulations. HDMI, the HDMI logo, and High-Definition Multimedia...
