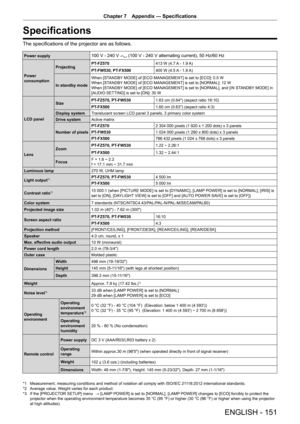

Page 151

Chapter 7 Appendix — Specifications
ENGLISH - 151
Specifications
The specifications of the projector are as follows.
Power supply100 V - 240 V  (100 V - 240 V alternating current), 50 Hz/60 Hz
Power
consumption Projecting
PT
-FZ570 413 W (4.7 A - 1.9 A)
PT -FW530, PT -FX500 400 W (4.5 A - 1.8 A)
In standby mode When [STANDBY MODE] of [ECO MANAGEMENT] is set to [ECO]: 0.5 W
When [STANDBY MODE] of [ECO MANAGEMENT] is set to [NORMAL]: 12 W
When [STANDBY MODE] of [ECO MANAGEMENT] is set to [NORMAL], and [IN...

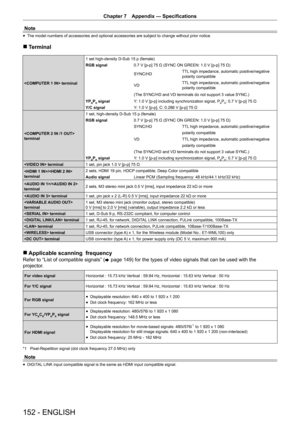

Page 152

$Page 152 Chapter 7 Appendix — Specifications 152 - ENGLISH Note f The model numbers of accessories and optional accessories are subject to\ change without prior notice. r Terminal terminal 1 set high-density D-Sub 15 p (female) RGB signal 0.7 V [p-p] 75 Ω (SYNC ON GREEN: 1.0 V [p-p] 75 Ω) SYNC/HDTTL high impedance, automatic positive/negative polarity compatible VD TTL high impedance, automatic positive/negative polarity compatible (The SYNC/HD and VD terminals do not support 3 value SYNC.) YP BPR signal...$

Chapter 7 Appendix — Specifications
152 - ENGLISH
Note

f The model numbers of accessories and optional accessories are subject to\
 change without prior notice.

r Terminal
 terminal 1 set high-density D-Sub 15 p (female)
RGB signal
0.7 V [p-p] 75 Ω (SYNC ON GREEN: 1.0 V [p-p] 75 Ω)
SYNC/HDTTL high impedance, automatic positive/negative
polarity compatible
VD TTL high impedance, automatic positive/negative
polarity compatible
(The SYNC/HD and VD terminals do not support 3 value SYNC.)
YP
BPR signal...

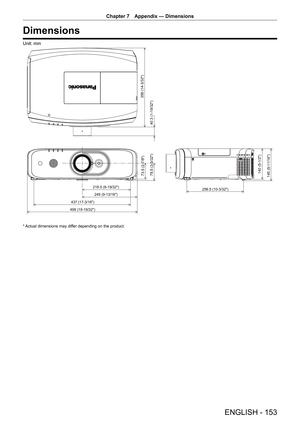

Page 153

Chapter 7 Appendix — Dimensions
ENGLISH - 153
Dimensions
Unit: mm
498 (19-19/32
)
437 (17-3/16
)249 (9-13/16)
218.5 (8-19/32)
256.5 (10-3/32)
145 (5-11/16)
140 (5-1/2
)
78.5 (3-3/32
)
73.5 (2-7/8)
40.3 (1-19/32)358 (14-3/32
)
* Actual dimensions may differ depending on the product.

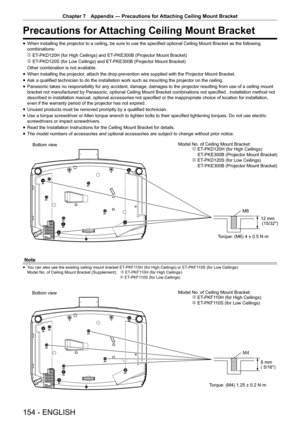

Page 154

Chapter 7 Appendix — Precautions for Attaching Ceiling Mount Bracket
154 - ENGLISH
Precautions for Attaching Ceiling Mount Bracket

f When installing the projector to a ceiling, be sure to use the specified optional Ceiling Mount Bracket as the following
combinations:

 ET -PKD120H (for High Ceilings) and ET -PKE300B (Projector Mount Bracket)
  ET -PKD120S (for Low Ceilings) and ET -PKE300B (Projector Mount Bracket)
Other combination is not available.

f When installing the projector, attach the...

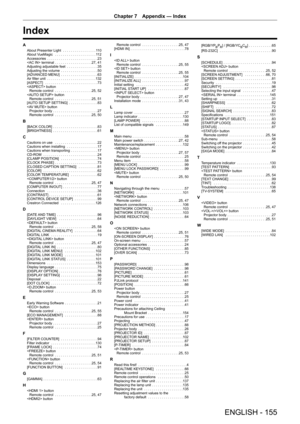

Page 155

Chapter 7 Appendix — Index
ENGLISH - 155
Index
A
About Presenter Light
 . . . . . . . . . . . . . . . . .11 0
About VueMagic   ..................... 11 2
Accessories  .......................... 23
 terminal  ................... 27, 41
Adjusting adjustable feet  ................35
Adjusting the volume  ................... 50
[ADVANCED MENU]  ................... 63
Air filter unit  ......................... 132
[ASPECT]   ........................... 73
 button Remote control  ................... 25, 52...

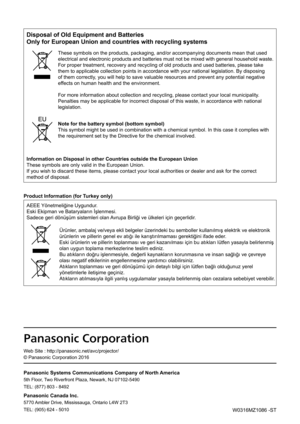

Page 156

W0316MZ1086 -ST
Product Information (for Turkey only)
AEEE Yönetmeliğine Uygundur.
Eski Ekipman ve Bataryaların İşlenmesi.
Sadece geri dönüşüm sistemleri olan Avrupa Birliği ve ülkeleri için geçerlidir.
Ürünler, ambalaj ve/veya ekli belgeler üzerindeki bu semboller kullanılmış elektrik ve elektronik
ürünlerin ve pillerin genel ev atığı ile karıştırılmaması gerektiğini ifade eder.
Eski ürünlerin ve pillerin toplanması ve geri kazanılması için bu atıkları lütfen yasayla belirlenmiş
olan uygun toplama...
