Raising the Ceiling on Performance
PT-L6600U/UL
PT-
L6500U/UL
BriteOptic™ LCD Projectors
NTSC/M-NTSC/PAL/PAL-M/PAL-N/SECAM
•New BriteOptic™ Dual Lamp System offers brightness of 3,600 ANSI lumens
•SXGA/XGA native, UXGA maximum resolution
•A host of terminals, including DVI (Digital RGB in/out)
•Easy setup and maintenance
•Lens shift, auto setup, and digital keystone correction
BriteOptic™
Dual Lamp System
The difference is your image™

Centered on Quality
Panasonic’s PT-L6600U and
PT-L6500U LCD projectors incorporate our
highly acclaimed BriteOptic™ Dual Lamp
system, which delivers high-definition images
with superb brightness.
Specifically designed with extensive
user input, we began by making key
improvements to the system engine, then devised
a symmetrical design that places the lens directlyin the units center, for easier image positioning.
We also incorporated the latest DSP technology
that assures precise, consistent...

The PT-L6600UL/L6500UL delivers the same superior
performance as the PT-L6600U and PT-L6500U,
respectively, but come with no lens. Combine them with an
optional lens to get the exact performance you need
according to usage and operating conditions.
Wide Variety: Choose the BriteOptic™Projector
that Best Meets Your Needs

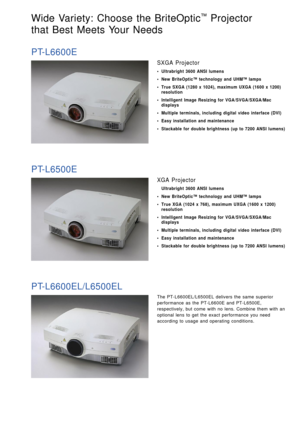

PT-L6600U
SXGA Projector
• Ultrabright 3600 ANSI lumens
• New BriteOptic™ technology and UHM™ lamps
• True SXGA (1366 x 1024), maximum UXGA (1600 x 1200)
resolution
• Intelligent Image...

Ultrahigh Brightness and
Contrast
Panasonic’s advanced BriteOptic™
Dual Lamp System delivers both
3,600 ANSI lumens of brightness
and superior color reproducibility.
A corrective film is used to
compensate for phase shifts in the
light incident to the LCD panel,
helping obtain a high contrast ratio.
The result is reproduction of crisp,
clear, super-bright images with
outstanding depth.
High Resolution & Intelligent
Image Resizing
The PT-L6600U/L6600UL offers true
SXGA resolution (UXGA max.) and
the...

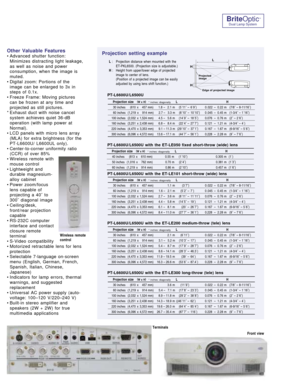

Projection setting example
L :  Projection distance when mounted with the
ET-PKL6500. (Projection size is adjustable.)
H :  Height from upper/lower edge of projected
image to center of lens.
(Position of a projected image can be easily
adjusted by using lens shift function.)
Edge of projected image
Projected
H
HL
PT-L6600U/L6500U
PT-L6600U/L6500U with the ET-LE050 fixed short-throw (wide) lens
PT-L6600U/L6500U with the ET-LE101 short-throw (wide) lens
Front view
Projection size(
W x H)LH
40...

PT-L6600U PT-L6500U PT-L6600UL PT-L6500UL
100 – 240 V AC, 50/60 Hz
600 W (during standby mode with fan stopped: Max. 10 W)
5.0 A
NTSC/M-NTSC/PAL/PAL-M/PAL-N/SECAM
1.3˝ (diagonal) with MLA 1.3˝ (diagonal) 1.3˝ (diagonal) with MLA 1.3˝ (diagonal)
Transparent LCD panels (x 3)
Active matrix
1,398,784 1,398,784 786,432 786,432
(1,366 x 1,024) x 3 (1,366 x 1,024) x 3 (1,024 x 768) x 3 (1,024 x 768) x 3
Stripe
4:3
Power zoom/focus lens (1:1–1:1.3) (option)
F 1.7– 2.3, f 49.1– 63.8 mm (option)
DC type 220 W...

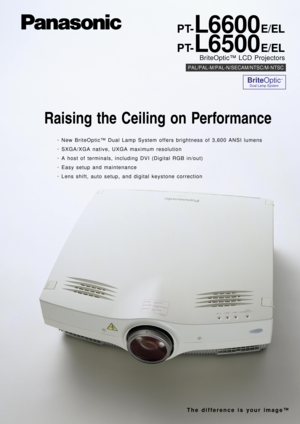

PT-L6600E/EL
PT-
L6500E/EL
BriteOptic™ LCD Projectors
PAL/PAL-M/PAL-N/SECAM/NTSC/M-NTSC
BriteOptic™
Dual Lamp System
Raising the Ceiling on Performance
•New BriteOptic™Dual Lamp System offers brightness of 3,600 ANSI lumens
•SXGA/XGA native, UXGA maximum resolution
•A host of terminals, including DVI (Digital RGB in/out)
•Easy setup and maintenance
•Lens shift, auto setup, and digital keystone correction
The difference is your image™

Centred on Quality
Panasonic’s PT-L6600E/EL and
PT-L6500E/EL LCD projectors incorporate our
highly acclaimed BriteOptic™ Dual Lamp
system, which delivers high-definition images
with superb brightness.
Specifically designed with extensive
user input, we began by making key
improvements to the system engine, then devised
a symmetrical design that places the lens directlyin the units center, for easier image positioning.
We also incorporated the latest DSP technology
that assures precise, consistent...

The PT-L6600EL/L6500EL delivers the same superior
performance as the PT-L6600E and PT-L6500E,
respectively, but come with no lens. Combine them with an
optional lens to get the exact performance you need
according to usage and operating conditions.
Wide Variety: Choose the BriteOptic™Projector
that Best Meets Your Needs
PT-L6600E
SXGA Projector
• Ultrabright 3600 ANSI lumens
• New BriteOptic™ technology and UHM™ lamps
• True SXGA (1280 x 1024), maximum UXGA (1600 x 1200)
resolution
• Intelligent Image...

Ultrahigh Brightness and
Contrast
Panasonic’s advanced BriteOptic™
Dual Lamp System delivers both
3,600 ANSI lumens of brightness
and superior colour reproducibility.
A corrective film is used to
compensate for phase shifts in the
light incident to the LCD panel,
helping obtain a high contrast ratio.
The result is reproduction of crisp,
clear, super-bright images with
outstanding depth.
High Resolution & Intelligent
Image Resizing
The PT-L6600E/L6600EL offers true
SXGA resolution (UXGA max.) and
the...
