Preparation
Notes on use
In order to get the best picture quality
Draw curtains or blinds over any windows and turn off any
fluorescent lights near the screen to prevent outside light or
light from indoor lamps from shining onto the screen.
Do not touch the surfaces of the lens with your bare
hands.
If the surface of the lens becomes dirty from fingerprints or
anything else, this will be magnified and projected onto the
screen. Moreover, when not using the projector, retract the
lens and then...

Projector
12-ENGLISH

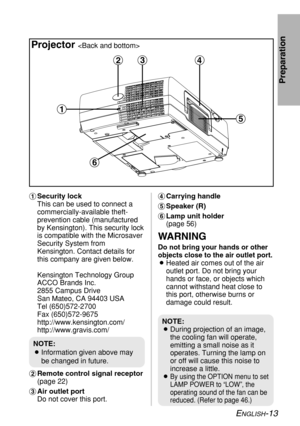

Location and function of each part
#Focus ring
(page 24)
$Zoom ring
(page 24)
%Projector control panel
(page 14)
&Connector panel
(page 16)
'MAIN POWER switch
(pages 23 and 25)
(Power input socket (AC IN)
(page 23)
The accessory power cord is
connected here.
Do not use any power cord other
than the accessory power cord.
)Speaker (L)
*Air inlet ports
Do not cover these ports.
+Air filter
(page 54)
,Front adjustable legs(L/R)
(page 24)-Leg adjuster buttons(L/R)
(page 24)
These...

ENGLISH-13
Preparation
#Security lock
This can be used to connect a
commercially-available theft-
prevention cable (manufactured
by Kensington). This security lock
is compatible with the Microsaver
Security System from
Kensington. Contact details for
this company are given below.
Kensington Technology Group
ACCO Brands Inc.
2855 Campus Drive
San Mateo, CA 94403 USA
Tel (650)572-2700
Fax (650)572-9675
http://www.kensington.com/
http://www.gravis.com/
$Remote control signal receptor
(page 22)
%Air outlet...

#RGB INPUT indicator
(page 26)
This indicator shows whether a
signal is being input to the RGB
input connectors (RGB 1 IN/RGB
2 IN). When an input signal is
detected, the indicator illuminates.
$LAMP indicator
(page 53)
This indicator illuminates when it
is time to replace the lamp unit. It
flashes if a circuit abnormality is
detected.
%TEMP indicator
(page 52)
This indicator illuminates if an
abnormally high or low
temperature is detected inside
the projector or around it. If the
temperature reaches a...

ENGLISH-15
Preparation
the signal being input. In addition,
the angle of tilt of the projector will
be automatically detected and
adjusted in order to correct any
keystone distortion.
*SHUTTER button
(page 28)
This button is used to
momentarily turn off the picture
and sound.
+MENU button
(pages 32 and 35)
This button is used to display the
menu screens. When a menu
screen is being displayed, this
button can be used to return to a
previous screen or to clear the
screen.
,Arrow (F FG
GI
I
and H H
)...

16-ENGLISH
Connector panel
#USB port
(page 31)
The remote control unit can be
used as
a personal computer
mouse by connecting the
projector to
a personal computer
with the supplied USB cable.
(4-pin square connector)
$SERIAL connector
(pages 20, 21 and 64)
This connector is used to connect
a personal computer to the
projector in order to externally
control the projector. (RS-232C
compatible)
%RGB1 IN connector
(pages 20 and 21)
This connector is used to input
RGB signals and YP
BPRsignals.
&RGB2...

ENGLISH-17
Preparation
(PT-L735NTU only)

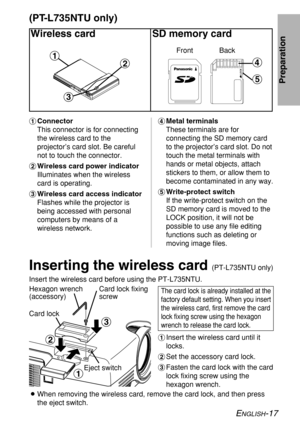

Wireless card SD memory card
$
%
#
LOCK
'
&
Front Back
#Connector
This connector is for connecting
the wireless card to the
projector’s card slot. Be careful
not to touch the connector.
$Wireless card power indicator
Illuminates when the wireless
card is operating.
%Wireless card access indicator
Flashes while the projector is
being accessed with personal
computers by means of a
wireless network.&Metal terminals
These terminals are for
connecting the SD memory...

18-ENGLISH
Setting-up

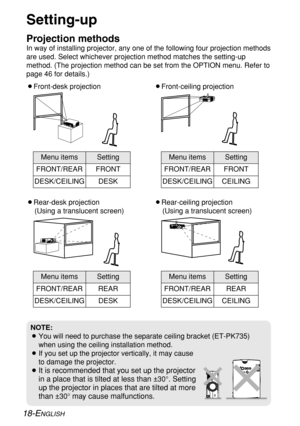

Projection methods
In way of installing projector, any one of the following four projection methods
are used. Select whichever projection method matches the setting-up
method. (The projection method can be set from the OPTION menu. Refer to
page 46 for details.)
BFront-desk projectionBFront-ceiling projection
BRear-desk projection
(Using a translucent screen)BRear-ceiling projection
(Using a translucent screen)
Menu items Setting
FRONT
DESK FRONT/REAR
DESK/CEILINGMenu items Setting...

ENGLISH-19
Getting started

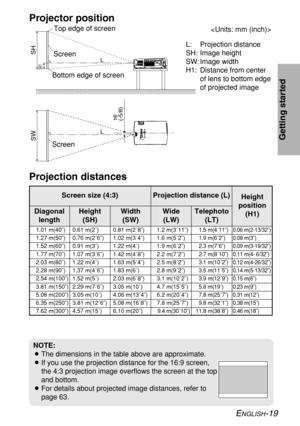

Projector position
H1L
L
SH
SW
16
(-5/8)
L: Projection distance
SH: Image height
SW: Image width
H1: Distance from center
of lens to bottom edge
of projected image Top edge of screen
Screen
Bottom edge of screen
Screen
Projection distances
NOTE:
BThe dimensions in the table above are approximate.
BIf you use the projection distance for the 16:9 screen,
the 4:3 projection image overflows the screen at the top
and bottom.
BFor details about projected image distances, refer to...

20-ENGLISH
NOTE:
B
If the video signal source is connected using a cable with a BNC connector plug, use a
BNC/RCA adapter (sold separately) to convert the cable end to an RCA plug-type jack.
BIf the signal cables are disconnected or if the power supply for the
computer or video deck is turned off while the digital zoom function is
being used, this function will be cancelled.

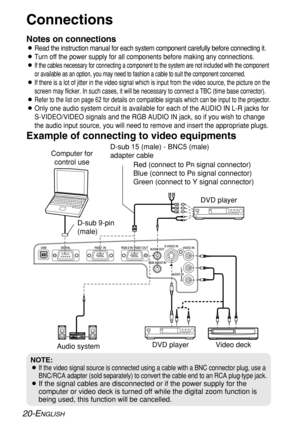

Connections
Notes on connections
BRead the instruction manual for each system component carefully before connecting it.
BTurn off...
