Panasonic Projector Pt Lb50ntu Operating Instructions

ENGLISH

R

Before operating this product, please read the instructions carefully an\
d save this
manual for future use.
LCD Projector
Operating Instructions
Model No.PT-LB50NTU
PT-LB50U
PT-LB50SU
TQBJ 0192
Commercial Use

2-ENGLISH
Dear Panasonic Customer:
This instruction booklet provides all the necessary operating informatio\
n that
you might require. We hope it will help you to get the most out of your \
new
product, and that you will be pleased with your Panasonic LCD projector.\
The serial number of your product may be found on its bottom. You should\
 note
it in the space provided below and retain this booklet in case service i\
s required.
Model number:  PT-LB50NTU / PT-LB50U / PT-LB50SU
Serial number:
IMPORTANT...

ENGLISH-3
Preparation
WARNING:
BNot for use in a computer room as defined in the Standard for the Protec\
tion
of Electronic Computer/Data Processing Equipment, ANSI/NFPA 75.
BFor permanently connected equipment, a readily accessible disconnect
device shall be incorporated in the building installation wiring;
B For pluggable equipment, the socket-outlet shall be installed near the
equipment and shall be easily accessible.
WARNING:
This equipment has been tested and found to comply with the limits for a\...

4-ENGLISH
Contents
Preparation
IMPORTANT SAFETY NOTICE ...2
Precautions with regard to safety...5
Accessories .................................9
Before use ..................................10
Location and function of each part...12
Getting started
Setting-up ...................................18
Projection methods, Projector
position, Projection distances
Connections ...............................21
Connecting to computer,
Connecting to video equipment (1),
Connecting to video equipment (2)...

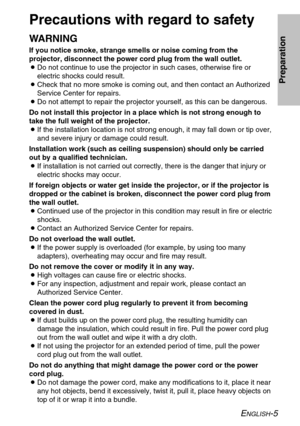

ENGLISH-5
Preparation
Precautions with regard to safety
WARNING
If you notice smoke, strange smells or noise coming from the
projector, disconnect the power cord plug from the wall outlet.
BDo not continue to use the projector in such cases, otherwise fire or
electric shocks could result.
B Check that no more smoke is coming out, and then contact an Authorized
Service Center for repairs.
B Do not attempt to repair the projector yourself, as this can be dangerou\
s.
Do not install this projector in a...

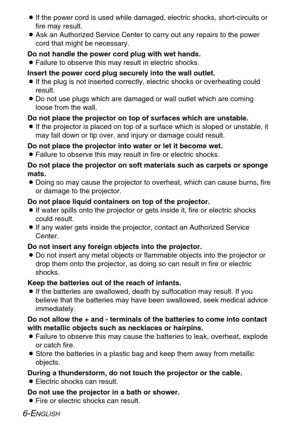

6-ENGLISH
BIf the power cord is used while damaged, electric shocks, short-circuits\
 or
fire may result.
B Ask an Authorized Service Center to carry out any repairs to the power
cord that might be necessary.
Do not handle the power cord plug with wet hands.
B Failure to observe this may result in electric shocks.
Insert the power cord plug securely into the wall outlet.
B If the plug is not inserted correctly, electric shocks or overheating co\
uld
result.
B Do not use plugs which are damaged or wall...

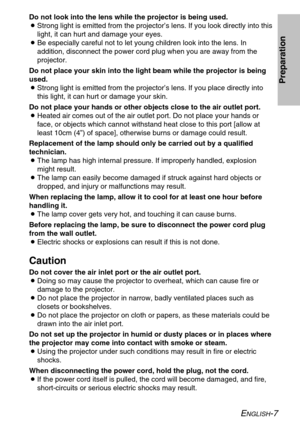

ENGLISH-7
Preparation
Do not look into the lens while the projector is being used.
BStrong light is emitted from the projector’s lens. If you look direct\
ly into this
light, it can hurt and damage your eyes.
B Be especially careful not to let young children look into the lens. In
addition, disconnect the power cord plug when you are away from the
projector.
Do not place your skin into the light beam while the projector is being
used.
B Strong light is emitted from the projector’s lens. If you place...

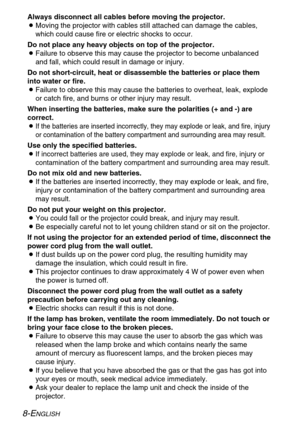

8-ENGLISH
Always disconnect all cables before moving the projector.
BMoving the projector with cables still attached can damage the cables,
which could cause fire or electric shocks to occur.
Do not place any heavy objects on top of the projector.
B Failure to observe this may cause the projector to become unbalanced
and fall, which could result in damage or injury.
Do not short-circuit, heat or disassemble the batteries or place them
into water or fire.
B Failure to observe this may cause the batteries...

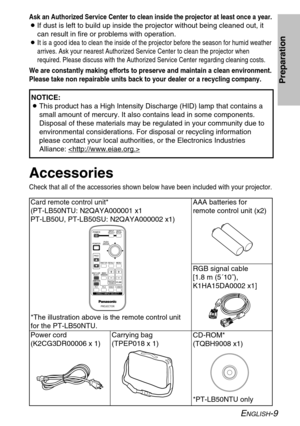

ENGLISH-9
Preparation
Card remote control unit*
(PT-LB50NTU: N2QAYA000001 x1
PT-LB50U, PT-LB50SU: N2QAYA000002 x1)
Power cord
(K2CG3DR00006 x 1)Carrying bag
(TPEP018 x 1)AAA batteries for
remote control unit (x2)
RGB signal cable
[1.8 m (5´10˝),
K1HA15DA0002 x1]
Accessories
Check that all of the accessories shown below have been included with yo\
ur projector.

CD-ROM*
(TQBH9008 x1)

*PT-LB50NTU only
Ask an Authorized Service Center to clean inside the projector at least \
once a year.
B
If dust is...

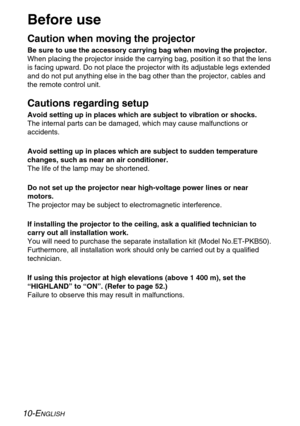

10-ENGLISH
Before use
Caution when moving the projector
Be sure to use the accessory carrying bag when moving the projector.
When placing the projector inside the carrying bag, position it so that \
the lens
is facing upward. Do not place the projector with its adjustable legs ex\
tended
and do not put anything else in the bag other than the projector, cables\
 and
the remote control unit.
Cautions regarding setup
Avoid setting up in places which are subject to vibration or shocks.
The internal parts...
