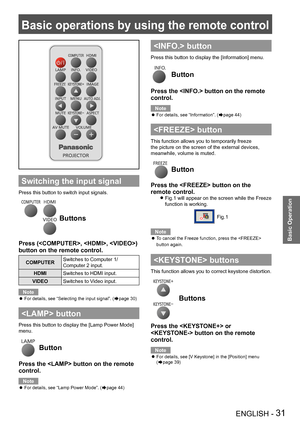

Page 31

Basic operations by using the remote control
ENGLISH - 31
Basic Operation
Switching the input signal
Press this button to switch input signals.
 Buttons
Press (, , )
button on the remote control.
COMPUTERSwitches to Computer 1/
Computer 2 input.
HDMI Switches to HDMI input.
VIDEOSwitches to Video input.
Note
For details, see “Selecting the input signal”. ( zÆpage 30)
 button
Press this button to display the [Lamp Power Mode]
menu.
 Button
Press the  button on the remote
control.
Note
For details, see...

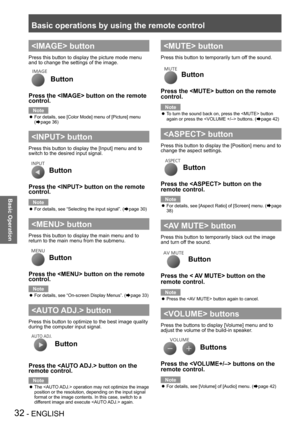

Page 32

Basic operations by using the remote control
32 - ENGLISH
Basic Operation
 button
Press this button to display the picture mode menu and to change the settings of the image.
 Button
Press the  button on the remote control.
Note
For details, see [Color Mode] menu of [Picture] menu  z(Æpage 36)
 button
Press this button to display the [Input] menu and to switch to the desired input signal.
 Button
Press the  button on the remote control.
Note
For details, see “Selecting the input signal”. ( zÆpage 30)...

Page 33

On-screen Display Menus
ENGLISH - 33
Settings
How to operate menu
Operation steps J
Press  button on the remote control or on the control panel.1 )
Main Menu displays. z
Use ▲▼ to select any item in the Main Menu.2 )
The selected item is highlighted in orange. z
Press 3 ) ►.
Items in the Sub Menu can be selected. z
Use ▲▼ to select any item in the Sub Menu.4 )
The selected item is highlighted in yellow.  z
Press 5 ) ► to display adjusting box.
Use ▲▼ to switch or adjust all settings.6 )
Press  button...

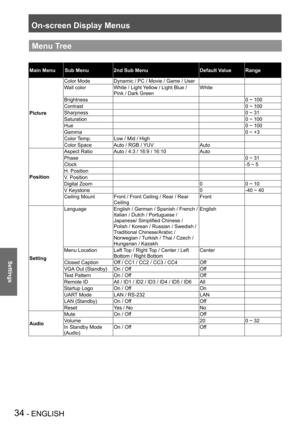

Page 34

On-screen Display Menus
34 - ENGLISH
Settings
Menu Tree
Main MenuSub Menu2nd Sub MenuDefault ValueRange
Color ModeDynamic / PC / Movie / Game / User
Wall colorWhite / Light Yellow / Light Blue /
Pink / Dark Green
White
Brightness0 ~ 100
Contrast0 ~ 100
Sharpness0 ~ 31
Saturation0 ~ 100
Hue0 ~ 100
Gamma0 ~ +3
Color Temp.Low / Mid / High
Color SpaceAuto / RGB / YUVAuto
Position
Aspect RatioAuto / 4:3 / 16:9 / 16:10Auto
Phase0 ~ 31
Clock-5 ~ 5
H. Position
V. Position
Digital Zoom00 ~ 10
V...

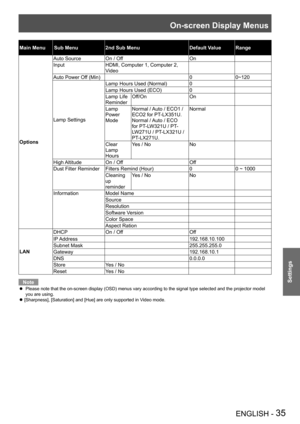

Page 35

On-screen Display Menus
ENGLISH - 35
Settings
Main MenuSub Menu2nd Sub MenuDefault ValueRange
Options
Auto SourceOn / OffOn
InputHDMI, Computer 1, Computer 2,
Video
Auto Power Off (Min)00~120
Lamp Settings
Lamp Hours Used (Normal)0
Lamp Hours Used (ECO)0
Lamp Life
Reminder
Off/OnOn
Lamp
Power
Mode
Normal / Auto / ECO1 /
ECO2 for PT-LX351U.
Normal / Auto / ECO
for PT-LW321U / PT-
LW271U / PT-LX321U /
PT-LX271U.
Normal
Clear
Lamp
Hours
Yes / NoNo
High AltitudeOn / OffOff
Dust Filter ReminderFilters...

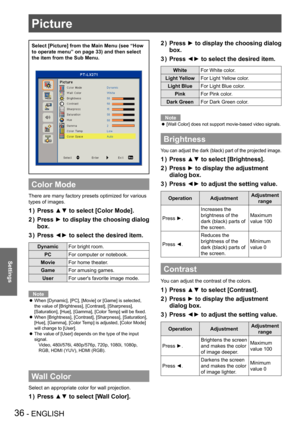

Page 36

36 - ENGLISH
Settings
Select [Picture] from the Main Menu (see “How
to operate menu” on page 33) and then select
the item from the Sub Menu.
Color Mode
There are many factory presets optimized for various
types of images.
Press ▲▼ to select [Color Mode].1 )
Press ► to display the choosing dialog 2 )
box.
Press ◄► to select the desired item.3 )
DynamicFor bright room.
PCFor computer or notebook.
MovieFor home theater.
GameFor amusing games.
UserFor user's favorite image mode....

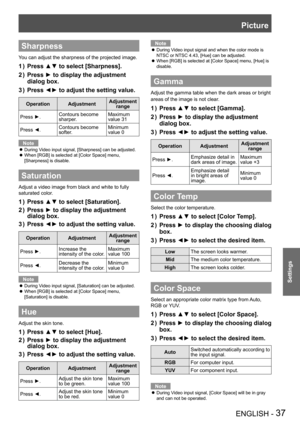

Page 37

ENGLISH - 37
Settings
Sharpness
You can adjust the sharpness of the projected image.
Press ▲▼ to select [Sharpness].1 )
Press ► to display the adjustment 2 )
dialog box.
Press ◄► to adjust the setting value.3 )
OperationAdjustmentAdjustment range
Press ►.Contours become sharper.Maximum value 31
Press ◄.Contours become softer.Minimum value 0
Note
During Video input signal, [Sharpness] can be adjusted. z
When [RGB] is selected at [Color Space] menu,  z
[Sharpness] is disable.
Saturation
Adjust...

Page 38

Position
38 - ENGLISH
Settings
Position
Select [Position] from the Main Menu (see “How
to operate menu” on page 33) and then select
the item from the Sub Menu.
Aspect Ratio
Use this function to choose your desired aspect ratio.
Press ▲▼ to select [Aspect Ratio].1 )
Press ► to display the choosing dialog 2 )
box.
Press ◄► to select the desired item.3 )
Auto
The projector identifies the video ID
(VID) embedded in the image signals
and displays the image by automatically
switching the screen sizes...

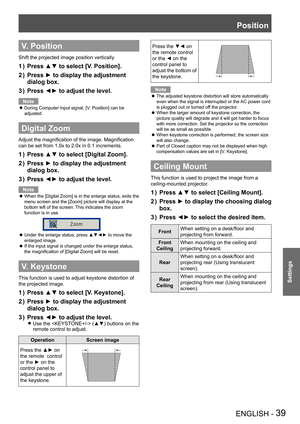

Page 39

Position
ENGLISH - 39
Settings
V. Position
Shift the projected image position vertically.
Press ▲▼ to select [V. Position].1 )
Press ► to display the adjustment 2 )
dialog box.
Press ◄► to adjust the level.3 )
Note
During Computer input signal, [V. Position] can be  z
adjusted.
Digital Zoom
Adjust the magnification of the image. Magnification
can be set from 1.0x to 2.0x in 0.1 increments.
Press ▲▼ to select [Digital Zoom].1 )
Press ► to display the adjustment 2 )
dialog box.
Press ◄► to adjust the...

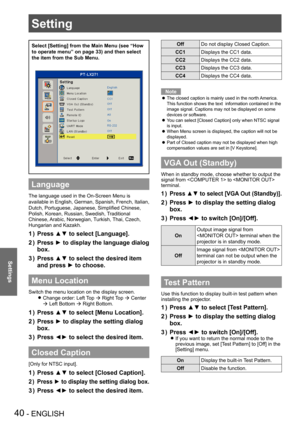

Page 40

Setting
40 - ENGLISH
Settings
Setting
Select [Setting] from the Main Menu (see “How
to operate menu” on page 33) and then select
the item from the Sub Menu.
Language
The language used in the On-Screen Menu is
available in English, German, Spanish, French, Italian,
Dutch, Portuguese, Japanese, Simplified Chinese,
Polish, Korean, Russian, Swedish, Traditional
Chinese, Arabic, Norwegian, Turkish, Thai, Czech,
Hungarian and Kazakh.
Press ▲▼ to select [Language].1 )
Press ► to display the language...
