Panasonic Projector PT-LX351E User Manual

Maintenance/replacement
ENGLISH - 51
Maintenance
Maintenance/replacement
Before cleaning/replacing the unit
When you perform maintenance or replacement of the parts, make sure to t\
urn off the power and disconnect  z
the power plug from the wall outlet. (Æpages 25, 27)
Be sure to observe the procedure “Powering off the projector” ( zÆpage 27) when performing power supply
operation.
Maintenance
Outer Case J

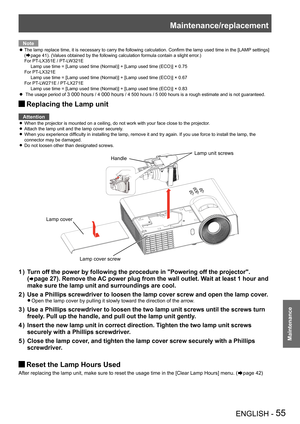

Wipe off dirt and dust using a soft dry cloth.
If the dirt is persistent, soak the cloth with...

Maintenance/replacement
52 - ENGLISH
Maintenance

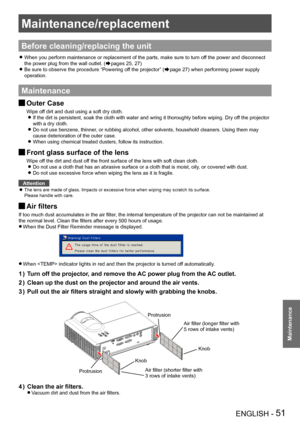

Install the air filters. 5 )
Hold the air filters with the protrusion up towards the top panel as shown in the picture and insert them until  z
you hear a "click" sound.
Reset the [Filter Reminder].6 )
Turn on the power and perform [Cleaning up Reminder] in the [Options] menu.  z(Æpage 42)
Attention
Turn off the power before you clean the air filters. z
Be sure to attach the air filters properly. If you use the projector without attaching the air...

Maintenance/replacement
ENGLISH - 53
Maintenance
Replacing the unit

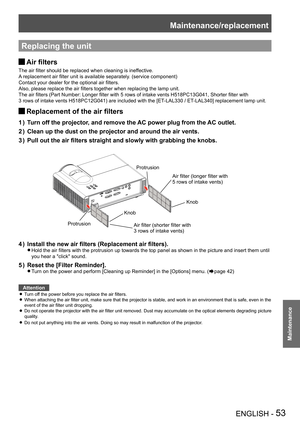

Air filters J
The air filter should be replaced when cleaning is ineffective.
A replacement air filter unit is available separately. (service component)
Contact your dealer for the optional air filters.
Also, please replace the air filters together when replacing the lamp unit.
The air filters (Part Number: Longer filter with 5 rows of intake vents H518PC13G041, Shorter filter with
3 rows of intake vents H518PC12G041) are included with...

Maintenance/replacement
54 - ENGLISH
Maintenance

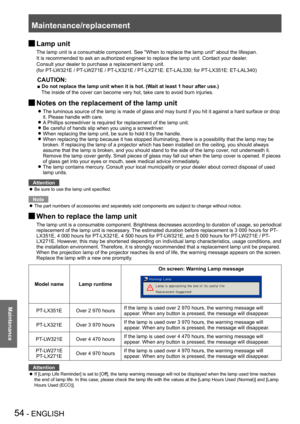

 JLamp unit
The lamp unit is a consumable component. See "When to replace the lamp unit" about the lifespan.
It is recommended to ask an authorized engineer to replace the lamp unit. Contact your dealer.
Consult your dealer to purchase a replacement lamp unit.
(for PT-LW321E / PT-LW271E / PT-LX321E / PT-LX271E: ET-LAL330; for PT-LX351E: ET-LAL340)
CAUTION:
■ Do not replace the lamp unit when it is hot. (Wait at least 1 hour after use.)
The inside...

Maintenance/replacement
ENGLISH - 55
Maintenance
Note
The lamp replace tim ze, it is necessary to carry the following calculation. Confirm the lamp used time in the [LAMP settings]
(Æpage 41). (Values obtained by the following calculation formula contain a slight error.)
For PT-LX351E / PT-LW321E
     Lamp use time = [Lamp used time (Normal)] + [Lamp used time (ECO)] × 0.75
For PT-LX321E
     Lamp use time = [Lamp used time (Normal)] + [Lamp used time (ECO)] × 0.67
For PT-LW271E / PT-LX271E...

Troubleshooting
56 - ENGLISH
Maintenance

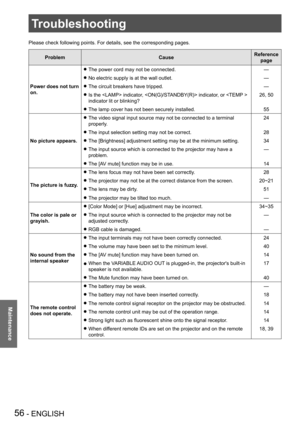

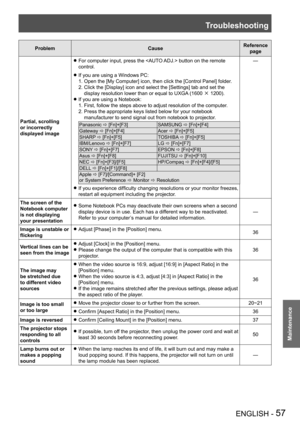

Troubleshooting
Please check following points. For details, see the corresponding pages.\
ProblemCauseReference
page
Power does not turn
on.
The power cord may not be connected. z—
No electric supply is at the wall outlet. z—
The circuit breakers have tripped. z—
Is the  indicator,  indicator, or   z
indicator lit or blinking?
26, 50
The lamp cover has not been securely installed. z55
No picture appears.
The video signal input source may not be connected to a...

Troubleshooting
ENGLISH - 57
Maintenance
ProblemCauseReference
page
Partial, scrolling
or incorrectly
displayed image
For computer input, press the  button on the remote  z
control.
—
If you are using a Windows PC* z
1.  Open the [My Computer] icon, then click the [Control Panel] folder .
2.  Click the [Display] icon and select the [Settings] tab and set the
display resolution lower than or equal to UXGA  (1600 × 1200).
If you are using a Notebook* z
1. First, follow the steps above to adjust...

Troubleshooting
58 - ENGLISH
Maintenance
ProblemCauseReference
page

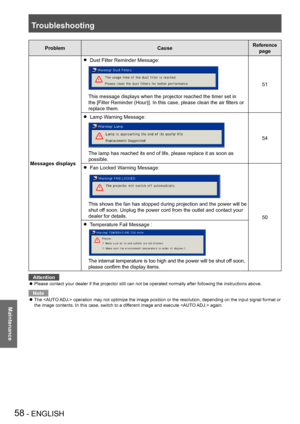

Messages displays
 Dust Filter Reminder Message:  z






This message displays when the projector reached the timer set in
the [Filter Reminder (Hour)]. In this case, please clean the air filters or
replace them.
51
 Lamp Warning Message:  z

The lamp has reached its end of life, please replace it as soon as
possible.
54
 Fan Locked Warning Message:  z


This shows the fan has stopped during projection and the power will be...

Appendix
ENGLISH - 59
Appendix
Appendix
Serial terminal
The serial connector which is on the connector panel of the projector conforms to the RS-232C interface
specification, so that the projector can be controlled by a personal computer which is connected to this connector.
Attention
Set the [UART Mode] in the  [Setting] menu to [RS-232] before controlling the projector via  terminal. z
Connection J
Pin assignments and signal names J
D-Sub 9-pin (female)
Outside viewPin No.Signal nameContents
—NC...

Appendix
60 - ENGLISH
Appendix

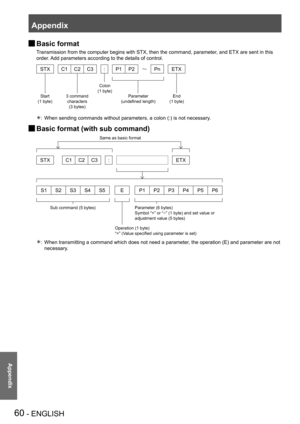

Basic format J
Transmission from the computer begins with STX, then the command, parameter, and ETX are sent in this
order. Add parameters according to the details of control.
STXC1C2C3 * P1 P2Pn ETX
When sending commands without parameters, a colon (:) is not necessary .* 
Basic format (with sub command) J
STXC1C2C3 *  ETX
S1S2S3S4S5 EP1P2P3P4P5P6
When transmitting a command which does not need a parameter, the operation (E) and parameter are not * 
necessary.
End
(1...
