Panasonic Projector Pt Lz370u Operating Instructions

ENGLISH - 11

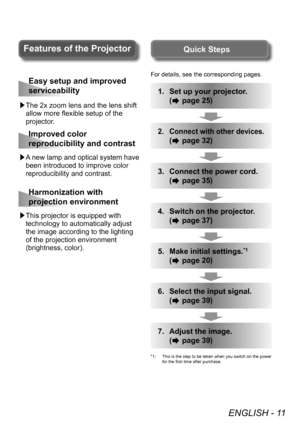

For details, see the corresponding pages.
1. Set up your projector.
(
 page 25)
2. Connect with other devices.
( page 32)
3. Connect the power cord.
(
 page 35)
4. Switch on the projector .
(
 page 37)
5. Make initial settings.*1
( page 20)
6. Select the input signal.
(
 page 39)
7. Adjust the image.
(
 page 39)
*1: This is the step to be taken when you switch on the power
for the first time after purchase.
▶▶The 2x zoom lens and the lens shift
allow more flexible setup of the...

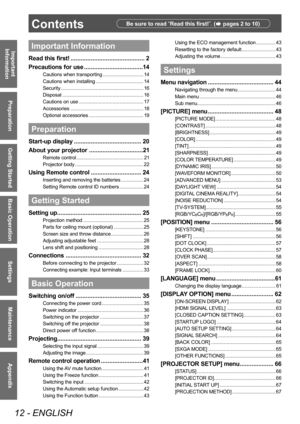

Contents
12 - ENGLISH
Important
Information
Preparation
Getting Started
Basic Operation
Settings
Maintenance
Appendix
Important Information
Read this first! ............................................ 2
P recautions for use
 ...................................1
 4
Cautions when transporting ............................. 14
Cautions when installing
 ...........
 ....................... 14
Security
 ............

............................................... 16
Disposal
 ..............

Contents

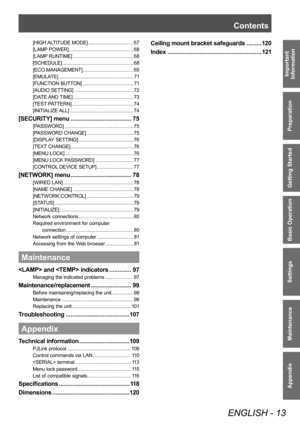

ENGLISH - 13
Important
Information
Preparation
Getting Started
Basic Operation
Settings
Maintenance
Appendix
[HIGH ALTITUDE MODE] ........... ..................... 67
[LAMP POWER]
 ............
 .................................. 68
[LAMP RUNTIME]
 ...........

................................ 68
[SCHEDULE]
 ............

....................................... 68
[ECO MANAGEMENT]
 ............

........................ 69
[EMULATE]
 ...........

.......................................... 71...

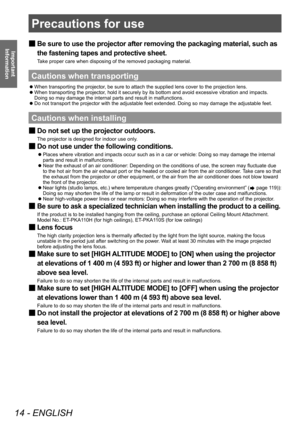

Precautions for use
14 - ENGLISH
Important
Information
Precautions for use
 ■ Be sure to use the projector after removing the packaging material, such as
the fastening tapes and protective sheet.
Take proper care when disposing of the removed packaging material.
Cautions when transporting
 z When transporting the projector
, be sure to attach the supplied lens cover to the projection lens.
 zWhen transporting the projector

, hold it securely by its bottom and avoid excessive vibration and impacts....

Precautions for use

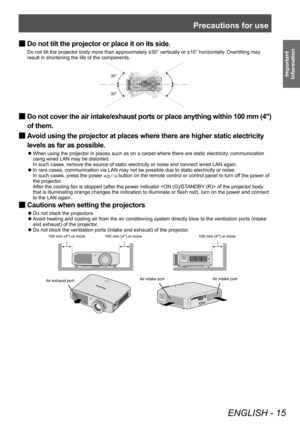

ENGLISH - 15
Important
Information
 ■ Do not tilt the projector or place it on its side.
Do not tilt the projector body more than approximately ±30° vertically or ±10° horizontally
. Overtilting may
result in shortening the life of the components.
30°
30°
 ■ Do not cover the air intake/exhaust ports or place anything within 100 mm (4")
of them.
 ■ A

void using the projector at places where there are higher static electricity
levels as far as possible.
▶z When using the...

Precautions for use
16 - ENGLISH
Important
Information

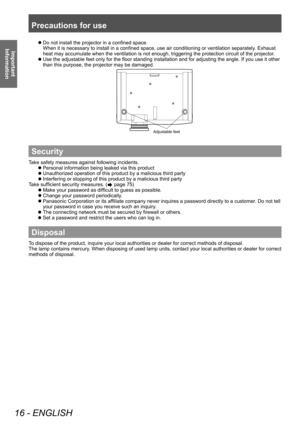

▶z Do not install the projector in a confined space.
When it is necessary to install in a confined space, use air conditioning or ventilation separately
. Exhaust
heat may accumulate when the ventilation is not enough, triggering the protection circuit of the projector .
▶zUse the adjustable feet only for the floor standing installation and for adjusting the angle. If you use it other
than this purpose, the projector may be damaged.
Adjustable...

Precautions for use
ENGLISH - 17
Important
Information

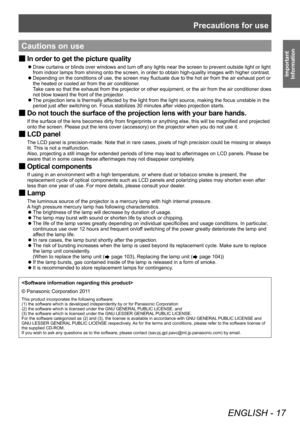

Cautions on use
 ■ In order to get the picture quality
▶z
Draw curtains or blinds over windows and turn of f any lights near the screen to prevent outside light or light
from indoor lamps from shining onto the screen, in order to obtain high-quality images with higher contrast.
▶z Depending on the conditions of use, the screen may fluctuate due to the hot air from the air exhaust port or
the heated or cooled air from the air conditioner

.
Take...

Precautions for use
18 - ENGLISH
Important

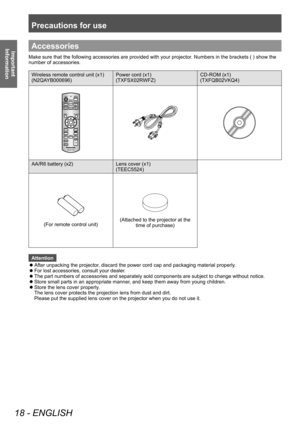

InformationAccessories
Make sure that the following accessories are provided with your projector . Numbers in the brackets ( ) show the
number of accessories.
Wireless remote control unit (x1)
(N2QAYB000696) Power cord (x1)
(TXFSX02RWFZ)CD-ROM (x1)
(TXFQB02VKQ4)
AA/R6 battery (x2)
Lens cover (x1)
(TEEC5524)
(For remote control unit)(Attached to the projector at the
time of purchase)
Attention
 z After unpacking the projector

, discard the power cord cap and...

Precautions for use
ENGLISH - 19
Important
Information
■

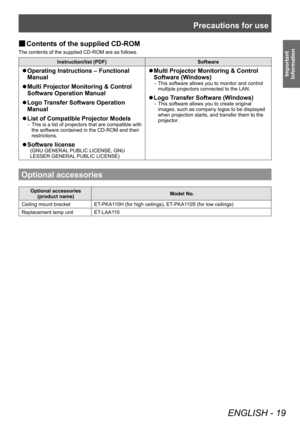

■ Contents of the supplied CD-ROM
The contents of the supplied CD-ROM are as follows.
Instruction/list (PDF)
Software
■zOperating Instructions – Functional
Manual
■zMulti Projector Monitoring & Control
Software Operation Manual
■zLogo T

ransfer Software Operation
Manual
■z List of Compatible Projector Models
–■This is a list of projectors that are compatible with
the software contained in the CD-ROM and their
restrictions.
■zSoftware...

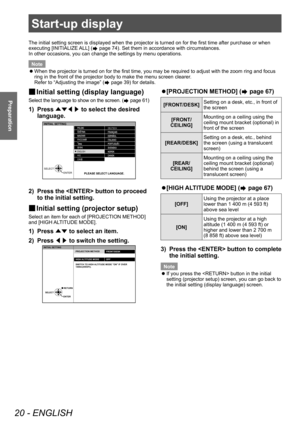

Start-up display
20 - ENGLISH
Preparation
Start-up display
The initial setting screen is displayed when the projector is turned on for the first time after purchase or when
executing [INITIALIZE ALL] (
 page 74). Set them in accordance with circumstances.
In other occasions, you can change the settings by menu operations.
Note
 z When the projector is turned on for the first time, you may be required to adjust with the zoom ring and focus
ring in the front of the projector body to make the menu screen...
