Panasonic Projector Pt Rw330 Specifications

1-Chip DLP™ Projectors
PT-RZ370
PT-RW330
Beyond  Ordinary  Projection—
Solid  Reliability  with  the
LED/Laser-Combined  Light  Source

Start projecting as soon as you turn on the power
Many  projector  issues  have
been  addressed  with  the  new
L E D / L a s e r- c o m b i n e d   l i g h t
source.  From  the  moment  you
turn  on  the  projector,  you’ll
notice  the  difference  with  the
quick  on  and  immediate  full
brightness.  No  more  lamps
and  air  filters,  which  lets  you  enjoy  maintenance-free  use  for  about
20,000  hours*1  while  maintaining  excellent  brightness  and  picture
quality. To  enhance...

The  LED/Laser-Combined  Light  Source
Enables  Approx.  20,000*1  Hours  of
Continuous  Operation
This  new  light  source  requires  no  maintenance
for  approximately  20,000  hours.*1  In  many
cases,  this  means  no  maintenance  until  your
next  refresh  cycle.  Naturally,  there  are  no  lamp
burnout  problems  during  use,  so  reliability  is
further  increased.  There  is  also  no  filter  to  clean
due  to  carefully  engineered  sealed  optics.  As
a  consequence,  running  cost...

Versatile  First-Time  and  Replacement
Installations
s2!  Zoom  Lens:  For  a  120-inch-diagonal
wide  screen,  the  projection  distance  extends
from  approximately  3.9  m  (12.8  ft)  to  approx-
imately  7.8  m  (25.7  ft).
sHorizontal/Vertical  Lens  Shift:  The  wide
shift  range  accommodates  various  room  sizes
and  shapes.  When  lights
or  ventilation  holes  are
located  in  the  ceiling
mounting  site,  you  can
simply  relocate  the  pro-
jector  to  avoid  them.
sFlexible...

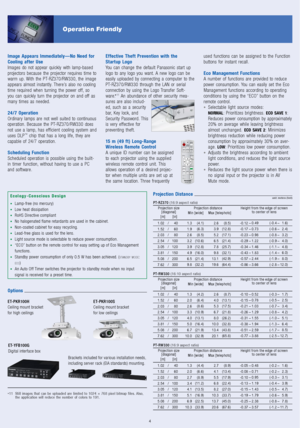

Image  Appears  Immediately—No  Need  for
Cooling  after  Use
Images  do  not  appear  quickly  with  lamp-based
projectors  because  the  projector  requires  time  to
warm  up.  With  the  PT-RZ370/RW330,  the  image
appears  almost  instantly.  There’s  also  no  cooling
time  required  when  turning  the  power  off,  so
you  can  quickly  turn  the  projector  on  and  off  as
many  times  as  needed.
24/7  Operation
Ordinary  lamps  are  not  well  suited  to  continuous
operation.  Because...

Weights  and  dimensions  shown  are  approximate.  Specifications  and  appearance  are  subject  to
change  without  notice.  Product  availability  differs  depending  on  region  and  country.  This  product
may be subject to export control regulations. DLP, DLP logo and DLP Medallion logo are trademarks
or  registered  trademarks  of Texas  Instruments. The  projection  distances  and  throw  ratios  given  in
this leaflet are for use only as guidelines. For more detailed information, please...
