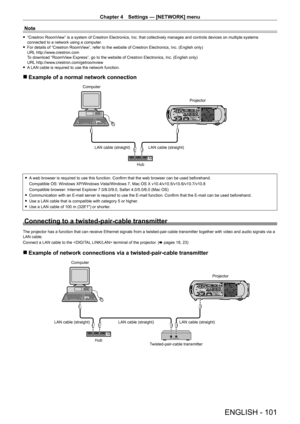

Panasonic Projector PT-RW430UK User Manual

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 101
Note
 f“Crestron RoomV iew” is a system of Crestron Electronics, Inc. that collectively manages and controls devices on multiple systems
connected to a network using a computer.
 f For details of “Crestron RoomV

iew”, refer to the website of Crestron Electronics, Inc. (English only)
URL http://www.crestron.com
To download “RoomView Express”, go to the website of Crestron Electronics, Inc. (English only)
URL http://www.crestron.com/getroomview
 f A

 LAN...

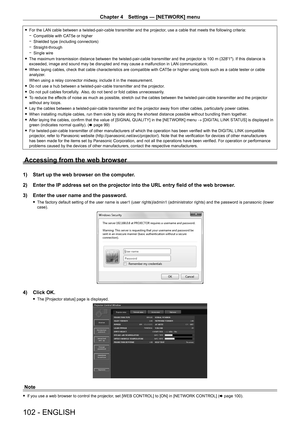

Chapter 4 Settings — [NETWORK] menu
102 - ENGLISH
 fFor the LAN cable between a twisted-pair-cable transmitter and the projector , use a cable that meets the following criteria:
 gCompatible with CA

T5e or higher
 gShielded type (including connectors)
 gStraight-through
 gSingle wire
 fThe maximum transmission distance between the twisted-pair-cable transmitter and the projector is 100

  m (328'1"). If this distance is
exceeded, image and sound may be disrupted and may cause a malfunction in...

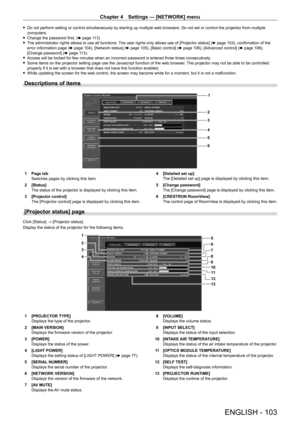

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 103
 fDo not perform setting or control simultaneously by starting up multiple web browsers. Do not set or control the projector from multiple
computers.
 fChange the password first. ( x

  page   113)
 fThe administrator rights allows to use all functions.

The user rights only allows use of [Projector status] ( x
  page   103), confirmation of the
error information page ( x
  page   104), [Network status] (x   page   105), [Basic control] (x   page...

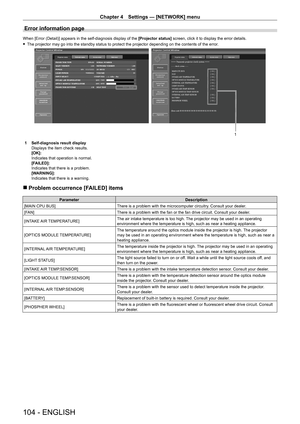

Chapter 4 Settings — [NETWORK] menu
104 - ENGLISH
Error information page
When [Error (Detail)] appears in the self-diagnosis display of the [Projector status] screen, click it to display the error details.
 fThe projector may go into the standby status to protect the projector depending on the contents of the error .
1
1 Self-diagnosis result display
Displays the item check results.
[OK]:
Indicates that operation is normal.
[F
AILED]:
Indicates that there is a problem.
[WARNING]:
Indicates that there is...

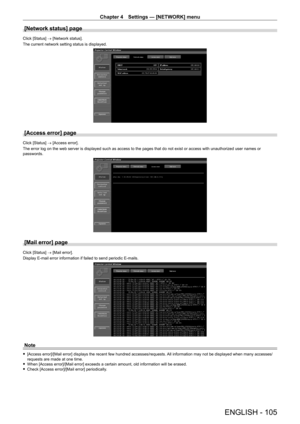

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 105
[Network status] page
Click [Status] → [Network status].
The current network setting status is displayed.
[Access error] page
Click [Status] → [Access error].
The error log on the web server is displayed such as access to the pages that do not exist or access with unauthorized user names or
passwords.
[Mail error] page
Click [Status] → [Mail error].
Display E-mail error information if failed to send periodic E-mails.
Note
 f[Access error]/[Mail error]...

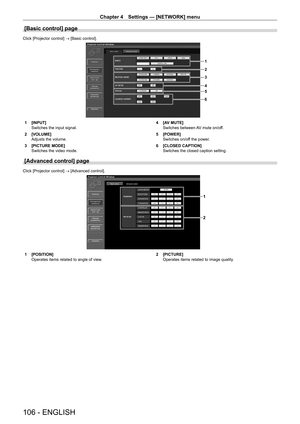

Chapter 4 Settings — [NETWORK] menu
106 - ENGLISH
[Basic control] page
Click [Projector control] → [Basic control].
1
2
5
6 3
4
1 [INPUT]
Switches the input signal.
2

[VOLUME]
Adjusts the volume.
3


[PICTURE MODE]
Switches the video mode. 4

 [A V MUTE]
Switches between AV mute on/off.
5

[POWER]
Switches on/of

f the power.
6

[CLOSED CAPTION]
Switches the closed caption setting.
[Advanced control] page
Click [Projector control] → [Advanced control].
1
2
1 [POSITION]
Operates items related to...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 107

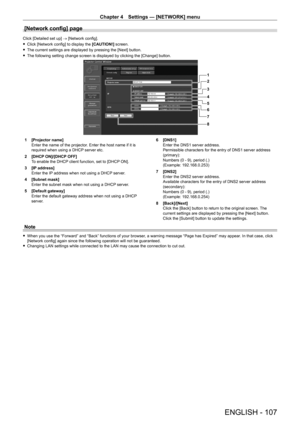

[Network config] page
Click [Detailed set up] → [Network config].
 fClick [Network config] to display the  [CAUTION!]

 screen.
 fThe current settings are displayed by pressing the [Next] button.
 fThe following setting change screen is displayed by clicking the [Change] button.
1
2
3
4
5
6
7
8
1 [Projector name]
Enter the name of the projector
. Enter the host name if it is
required when using a DHCP server etc.
2

[DHCP
  ON]/[DHCP OFF]
To enable the...

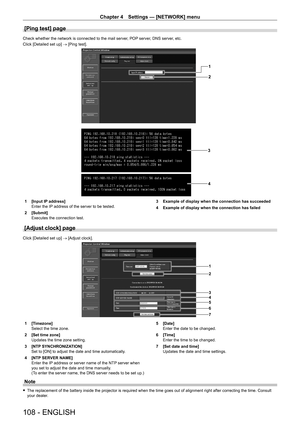

Chapter 4 Settings — [NETWORK] menu
108 - ENGLISH
[Ping test] page
Check whether the network is connected to the mail server, POP server, DNS server, etc.
Click [Detailed set up] → [Ping test].
1
2
3 4
1 [Input IP  address]
Enter the IP address of the server to be tested.
2

[Submit]
Executes the connection test. 3

 Example of display when the connection has succeeded
4
Example of display when the connection has failed
[Adjust clock] page
Click [Detailed set up] → [Adjust clock].
1
2
3
45
6
7
1...

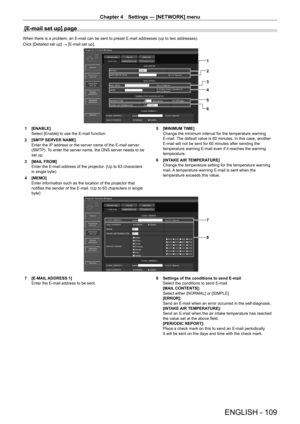

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 109
[E-mail set up] page
When there is a problem, an E-mail can be sent to preset E-mail addresses (up to two addresses).
Click [Detailed set up] → [E-mail set up].
1
2
3
4
5
6
1 [ENABLE]
Select [Enable] to use the E-mail function.
2

[SMTP
  SERVER NAME]
Enter the IP address or the server name of the E-mail server
(SMTP). To enter the server name, the DNS server needs to be
set up.
3

[MAIL
  FROM]
Enter the E-mail address of the projector. (Up to 63...

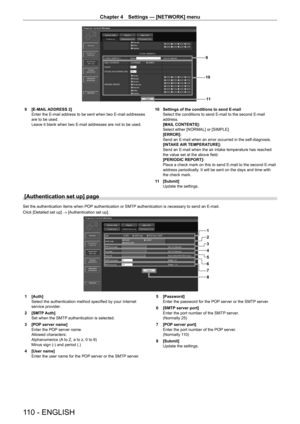

Chapter 4 Settings — [NETWORK] menu
110 - ENGLISH
11
10
9
9 [E-MAIL ADDRESS 2]
Enter the E-mail address to be sent when two E-mail addresses
are to be used.
Leave it blank when two E-mail addresses are not to be used. 10
 Settings of the conditions to send E-mail
Select the conditions to send E-mail to the second E-mail
address.
[MAIL
 CONTENTS]:
Select either [NORMAL] or [SIMPLE].
[ERROR]:
Send an E-mail when an error occurred in the self-diagnosis.
[INTAKE AIR TEMPERATURE]:
Send an E-mail when the...
