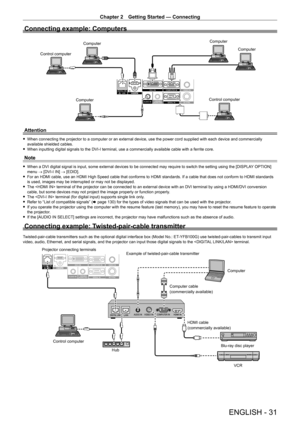

Chapter 2 Getting Started — Connecting
ENGLISH - 31
Connecting example: Computers
ComputerComputer
Computer Computer
Control computer
Control computer
Attention
 fWhen connecting the projector to a computer or an external device, use the power cord supplied with each device and commercially
available shielded cables.
 fWhen inputting digital signals to the DVI

- I terminal, use a commercially available cable with a ferrite core.
Note
 fWhen a DVI digital signal is input, some external devices to be...

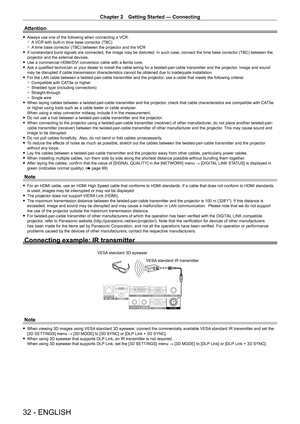

Chapter 2 Getting Started — Connecting
32 - ENGLISH
Attention
 fAlways use one of the following when connecting a VCR. gA
 VCR with built-in time base corrector (TBC)
 gA

 time base corrector (TBC) between the projector and the VCR
 fIf nonstandard burst signals are connected, the image may be distorted. In such case, connect the time base corrector (TBC) between the
projector and the external devices.
 fUse a commercial HDMI/DVI conversion cable with a ferrite core. fAsk a qualified technician or your...

ENGLISH - 33

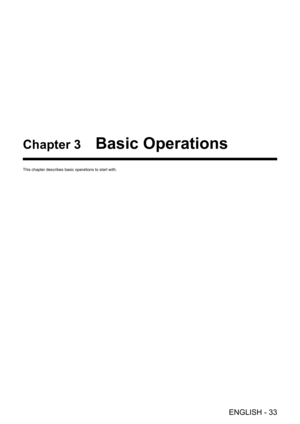

Chapter 3 Basic Operations
This chapter describes basic operations to start with.

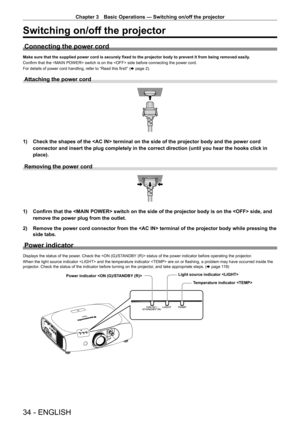

Chapter 3 Basic Operations — Switching on/off the projector
34 - ENGLISH
Switching on/off the projector
Connecting the power cord
Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily.
Confirm that the  switch is on the  side before connecting the power cord.
For details of power cord handling, refer to “Read this first!” ( x page 2).
Attaching the power cord
1) Check the shapes of the  terminal on the side of the projector bo\
dy and the...

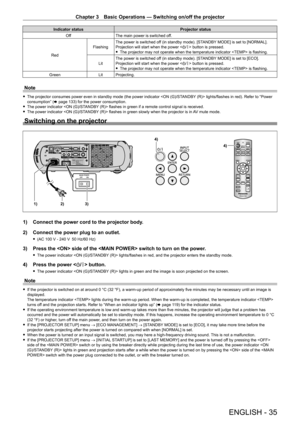

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 35
Indicator statusProjector status
Off The main power is switched off.
Red Flashing
The power is switched off (in standby mode). [STANDBY MODE] is set to [NORMAL].
Projection will start when the power <
v/b> button is pressed.
 fThe projector may not operate when the temperature indicator  is flashing.
Lit The power is switched of

f (in standby mode). [STANDBY MODE] is set to [ECO].
Projection will start when the power < v/b> button...

Chapter 3 Basic Operations — Switching on/off the projector
36 - ENGLISH
Making adjustments and selections
It is recommended that images are projected continuously for at least 30 minutes before the focus is adjusted.
3)
2)1)
2)
1)
4)
1) Set the initial settings. (x   page   20)
 fThe initial setting screen is displayed when the projector is switched on for the first time after purchase as well as when [ALL  USER
DA TA] in the [PROJECTOR SETUP] menu → [INITIALIZE] is executed.
2) Press the input...

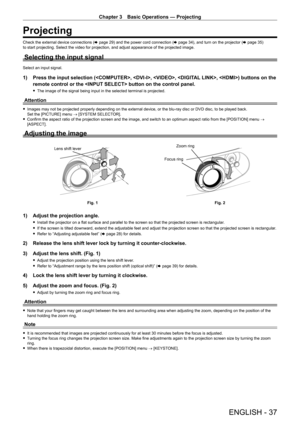

Chapter 3 Basic Operations — Projecting
ENGLISH - 37
Projecting
Check the external device connections (x   page   29) and the power cord connection (x   page   34), and turn on the projector (x   page   35)
to start projecting. Select the video for projection, and adjust appearance of the projected image.
Selecting the input signal
Select an input signal.
1) Press the input selection (, , , , ) buttons on the
remote control or the  button on the control panel.
 f The image of the signal being input in...

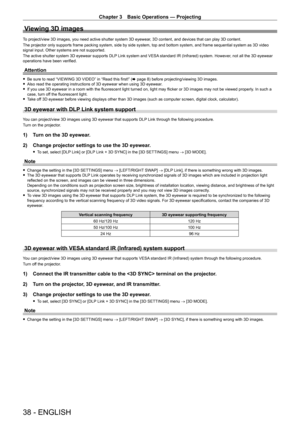

Chapter 3 Basic Operations — Projecting
38 - ENGLISH
Viewing 3D images
To project/view 3D images, you need active shutter system 3D eyewear, 3D content, and devices that can play 3D content.
The projector only supports frame packing system, side by side system, top and bottom system, and frame sequential system as 3D video
signal input. Other systems are not supported.
The active shutter system 3D eyewear supports DLP Link system and VESA standard IR (Infrared) system. However, not all the 3D eyewear...

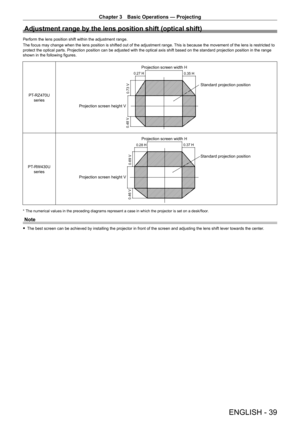

Chapter 3 Basic Operations — Projecting
ENGLISH - 39
Adjustment range by the lens position shift (optical shift)
Perform the lens position shift within the adjustment range.
The focus may change when the lens position is shifted out of the adjustment range. This is because the movement of the lens is restricted to
protect the optical parts. Projection position can be adjusted with the optical axis shift based on the standard projection position in the range
shown in the following figures.
PT- RZ470U...

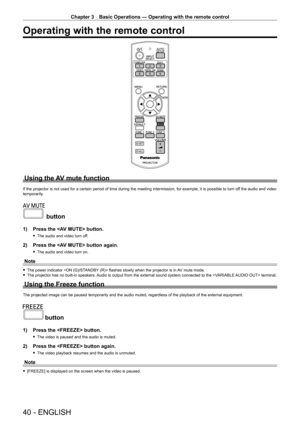

Chapter 3 Basic Operations — Operating with the remote control
40 - ENGLISH
Operating with the remote control
Using the AV mute function
If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible to turn off the audio and video
temporarily.
 button
1) Press the  button.
 fThe audio and video turn of f.
2) Press the  button again.
 fThe audio and video turn on.
Note
 fThe power indicator  flashes slowly when the projector is in AV mute mode....
