Panasonic Projector PT-RW620 User Manual

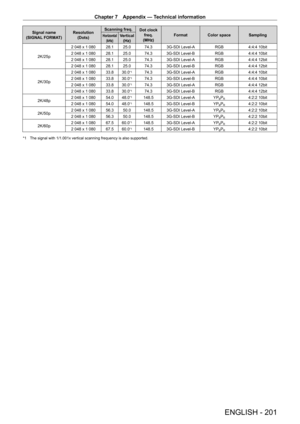

Chapter 7 Appendix — Technical information
ENGLISH - 201
Signal name
(SIGNAL FORMAT) Resolution
(Dots) Scanning freq.
Dot clock
freq.
(MHz) Format
Color space SamplingHorizontal
(kHz)Vertical(Hz)
2K/25p 2

048

x

1

080 28.1 25.0 74.3 3G-SDI Level-A RGB 4:4:4 10bit
2

048

x

1

080 28.1 25.0 74.3 3G-SDI Level-B RGB 4:4:4 10bit
2

048

x

1

080 28.1 25.0 74.3 3G-SDI Level-A RGB 4:4:4 12bit
2

048

x

1

080 28.1 25.0 74.3 3G-SDI Level-B RGB 4:4:4 12bit
2K/30p 2

048

x

1

080 33.8...

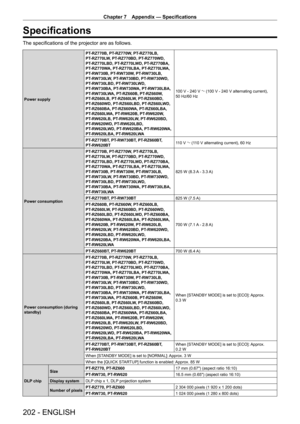

Chapter 7 Appendix — Specifications
202 - ENGLISH
Specifications
The specifications of the projector are as follows.
Power supplyPT‑RZ770B, PT‑RZ770W, PT‑RZ770LB,
PT‑RZ770LW, PT‑RZ770BD, PT‑RZ770WD,
PT‑RZ770LBD, PT‑RZ770LWD, PT‑RZ770BA,
PT‑RZ770WA, PT‑RZ770LBA, PT‑RZ770LWA,
PT‑RW730B, PT‑RW730W, PT‑RW730LB,
PT‑RW730LW, PT‑RW730BD, PT‑RW730WD,
PT‑RW730LBD, PT‑RW730LWD,
PT‑RW730BA, PT‑RW730WA, PT‑RW730LBA,
PT‑RW730LWA, PT‑RZ660B, PT‑RZ660W,
PT‑RZ660LB, PT‑RZ660LW, PT‑RZ660BD,
PT‑RZ660WD,...

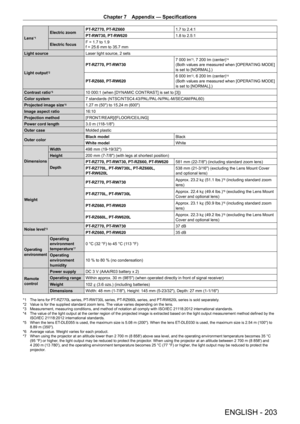

Chapter 7 Appendix — Specifications
ENGLISH - 203
Lens*1Electric zoomPT‑RZ770, PT‑RZ660
1.7 to 2.4:1
PT‑RW730, PT‑RW620 1.8 to 2.5:1
Electric focus F = 1.7 to 1.9
f = 25.6
  mm to 35.7   mm
Light source Laser light source, 2 sets
Light output
*2
PT‑RZ770, PT‑RW730 7   000   lm
*3, 7 200 lm (center)*4
(Both values are measured when [OPERATING MODE]
is set to [NORMAL].)
PT‑RZ660, PT‑RW620 6
  000   lm
*3, 6 200 lm (center)*4
(Both values are measured when [OPERATING MODE]
is set to [NORMAL].)
Contrast...

Chapter 7 Appendix — Specifications
204 - ENGLISH

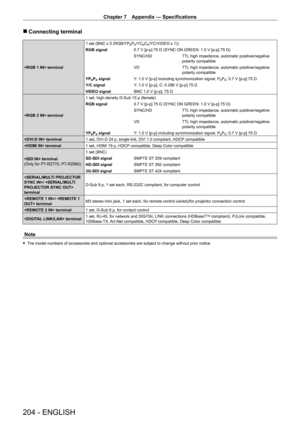

 rConnecting terminal
 terminal 1 set (BNC x 5 (RGB/YP
BPR/YCBCR/YC/VIDEO x 1))
RGB signal 0.7

V [p-p] 75   Ω (SYNC ON GREEN: 1.0   V [p-p] 75   Ω)
SYNC/HD TTL high impedance, automatic positive/negative
polarity compatible
VD TTL high impedance, automatic positive/negative
polarity compatible
YP
BPR signal Y: 1.0   V [p-p] including synchronization signal, PBPR: 0.7 V [p-p] 75 Ω
Y/C signal Y
: 1.0

V [p-p], C: 0.286

V [p-p] 75

Ω
VIDEO signal BNC...

Chapter 7 Appendix — Specifications
ENGLISH - 205

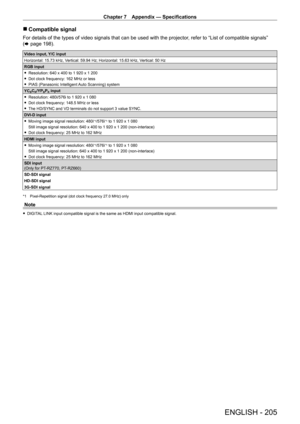

 rCompatible signal
For details of the types of video signals that can be used with the projector , refer to “List of compatible signals”
(x   page   198).
Video input, Y/C input
Horizontal: 15.73
  kHz, Vertical: 59.94   Hz; Horizontal: 15.63   kHz, Vertical: 50   Hz
RGB input
 f Resolution: 640

  x   400 to 1   920   x   1   200
 fDot clock frequency: 162

  MHz or less
 fPIAS (Panasonic Intelligent

Auto Scanning) system
YC
BCR/YPBPR input
 f...

Chapter 7 Appendix — Dimensions
206 - ENGLISH

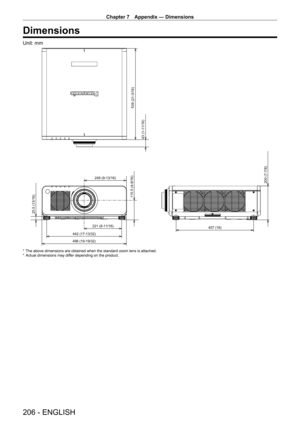

Dimensions
Unit: mm
221 (8-11/16)249 (9-13/16)
498 (19-19/32) 457 (18)
442 (17-13/32)
20.5 (13/16)
115.5 (4-9/16)
200 (7-7/8) 43 (1-11/16)
538 (21-3/16)
* The above dimensions are obtained when the standard zoom lens is attache\
d.
*  Actual dimensions may dif fer depending on the product.

Chapter 7 Appendix — Precautions for attaching the Ceiling Mount Bracket
ENGLISH - 207

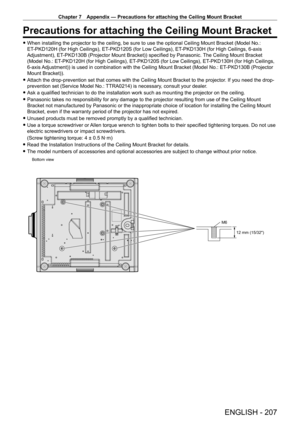

Precautions for attaching the Ceiling Mount Bracket
 fWhen installing the projector to the ceiling, be sure to use the optional Ceiling Mount Bracket (Model No.:
ET
-

PKD120H (for High Ceilings), ET
-
 PKD120S (for Low Ceilings), ET
-
 PKD130H (for High Ceilings, 6-axis
Adjustment), ET
-

PKD130B (Projector Mount Bracket)) specified by Panasonic. The Ceiling Mount Bracket
(Model No.: ET
-

PKD120H (for High...

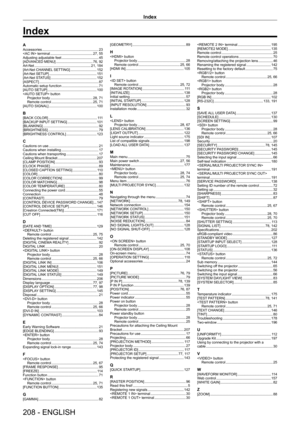

Index
208 - ENGLISH
AAccessories    23
 terminal
     27, 55
Adjusting adjustable feet
     45
[ADV
ANCED MENU]
     76, 92
Art-Net
     21, 184
[Art-Net CHANNEL
 SETTING]
     152
[Art-Net SETUP]
     151
[Art-Net ST
ATUS]
     152
[ASPECT]
     87
Automatic setup function
     71
[AUT
O SETUP]
     100
 button
Projector body

 28, 71
Remote control
     25, 71
[AUT
O SIGNAL]
     100
B[BACK COLOR]    111
[BACKUP
 INPUT SETTING]
     101
[BLANKING]
     92
[BRIGHTNESS]
     79
[BRIGHTNESS CONTROL]...

Index
ENGLISH - 209
 buttonRemote control     25, 67

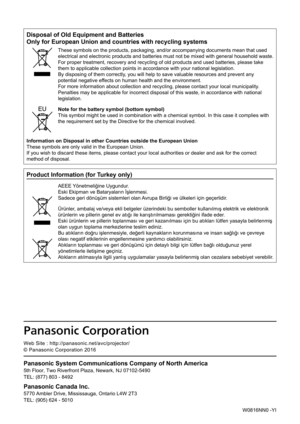

Disposal of Old Equipment and Batteries
