Panasonic Projector PT-RZ31K User Manual
Here you can view all the pages of manual Panasonic Projector PT-RZ31K User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.

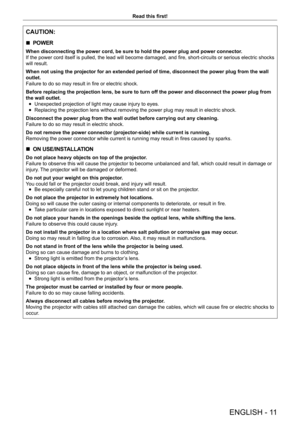

Page 11
![Page 11
ENGLISH - 11
Read this first!
CAUTION:
rPOWER
When disconnecting the power cord, be sure to hold the power plug and po\
wer connector.
If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks
will result.
When not using the projector for an extended period of time, disconnect \
the power plug from the wall
outlet.
Failure to do so may result in fire or electric shock.
Before replacing the projection lens, be sure to turn off the power and \...](http://img.usermanuals.tech/thumb/58/100231/w300_projector_manual_9478_d-10.png "Page 11
ENGLISH - 11
Read this first!
CAUTION:
rPOWER
When disconnecting the power cord, be sure to hold the power plug and po\
wer connector.
If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks
will result.
When not using the projector for an extended period of time, disconnect \
the power plug from the wall
outlet.
Failure to do so may result in fire or electric shock.
Before replacing the projection lens, be sure to turn off the power and \...")
ENGLISH - 11 Read this first! CAUTION: rPOWER When disconnecting the power cord, be sure to hold the power plug and po\ wer connector. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result. When not using the projector for an extended period of time, disconnect \ the power plug from the wall outlet. Failure to do so may result in fire or electric shock. Before replacing the projection lens, be sure to turn off the power and \...

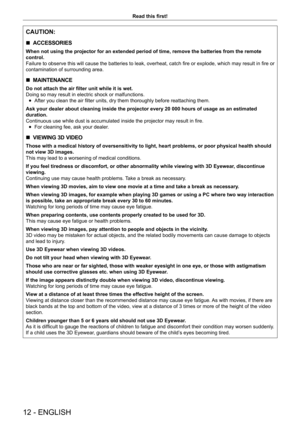

Page 12
![Page 12
12 - ENGLISH
Read this first!
CAUTION:
rACCESSORIES
When not using the projector for an extended period of time, remove the \
batteries from the remote
control.
Failure to observe this will cause the batteries to leak, overheat, catch fire or explode, which may result in fire or
contamination of surrounding area.
rMAINTENANCE
Do not attach the air filter unit while it is wet.
Doing so may result in electric shock or malfunctions.
fAfter you clean the air filter units, dry them thoroughly before...](http://img.usermanuals.tech/thumb/58/100231/w300_projector_manual_9478_d-11.png "Page 12
12 - ENGLISH
Read this first!
CAUTION:
rACCESSORIES
When not using the projector for an extended period of time, remove the \
batteries from the remote
control.
Failure to observe this will cause the batteries to leak, overheat, catch fire or explode, which may result in fire or
contamination of surrounding area.
rMAINTENANCE
Do not attach the air filter unit while it is wet.
Doing so may result in electric shock or malfunctions.
fAfter you clean the air filter units, dry them thoroughly before...")
12 - ENGLISH Read this first! CAUTION: rACCESSORIES When not using the projector for an extended period of time, remove the \ batteries from the remote control. Failure to observe this will cause the batteries to leak, overheat, catch fire or explode, which may result in fire or contamination of surrounding area. rMAINTENANCE Do not attach the air filter unit while it is wet. Doing so may result in electric shock or malfunctions. fAfter you clean the air filter units, dry them thoroughly before...

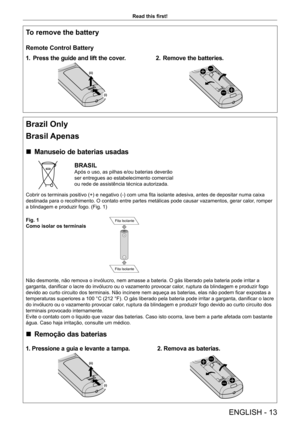

Page 13
ENGLISH - 13 Read this first! To remove the battery Remote Control Battery 1. P ress the guide and lift the cover. (i) (ii) 2. Remove the batteries. Brazil Only Brasil Apenas r Manuseio de baterias usadas BRASIL Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada. Cobrir os terminais positivo (+) e negativo (-) com uma fita isolante adesiva, antes de depositar numa caixa destinada para o recolhimento. O contato entre...

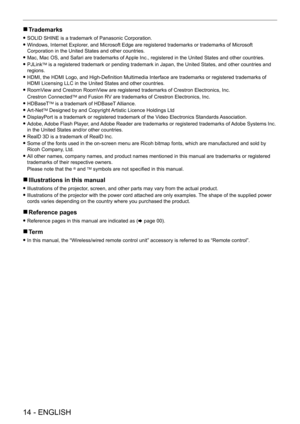

Page 14
![Page 14
14 - ENGLISH
rTrademarks
fSOLID SHINE is a trademark of Panasonic Corporation.
fWindows, Internet Explorer
, and Microsoft Edge are registered trademarks or trademarks of Microsoft
Corporation in the United States and other countries.
f Mac, Mac OS, and Safari are trademarks of
Apple Inc., registered in the United States and other countries.
fPJLinkTM is a registered trademark or pending trademark in Japan, the United Sta\
tes, and other countries and
regions.
f HDMI, the HDMI Logo, and...](http://img.usermanuals.tech/thumb/58/100231/w300_projector_manual_9478_d-13.png "Page 14
14 - ENGLISH
rTrademarks
fSOLID SHINE is a trademark of Panasonic Corporation.
fWindows, Internet Explorer
, and Microsoft Edge are registered trademarks or trademarks of Microsoft
Corporation in the United States and other countries.
f Mac, Mac OS, and Safari are trademarks of
Apple Inc., registered in the United States and other countries.
fPJLinkTM is a registered trademark or pending trademark in Japan, the United Sta\
tes, and other countries and
regions.
f HDMI, the HDMI Logo, and...")
14 - ENGLISH rTrademarks fSOLID SHINE is a trademark of Panasonic Corporation. fWindows, Internet Explorer , and Microsoft Edge are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. f Mac, Mac OS, and Safari are trademarks of Apple Inc., registered in the United States and other countries. fPJLinkTM is a registered trademark or pending trademark in Japan, the United Sta\ tes, and other countries and regions. f HDMI, the HDMI Logo, and...

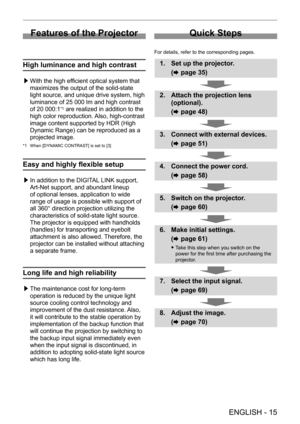

Page 15
![Page 15
ENGLISH - 15
Features of the Projector
High luminance and high contrast
/£With the high efficient optical system that
maximizes the output of the solid-state
light source, and unique drive system, high
luminance of 25
000 lm and high contrast
of 20
000:1
*1 are realized in addition to the
high color reproduction. Also, high-contrast
image content supported by HDR
(High
Dynamic Range) can be reproduced as a
projected image.
*1 When [DYNAMIC CONTRAST] is set to [3]
Easy and highly...](http://img.usermanuals.tech/thumb/58/100231/w300_projector_manual_9478_d-14.png "Page 15
ENGLISH - 15
Features of the Projector
High luminance and high contrast
/£With the high efficient optical system that
maximizes the output of the solid-state
light source, and unique drive system, high
luminance of 25
000 lm and high contrast
of 20
000:1
*1 are realized in addition to the
high color reproduction. Also, high-contrast
image content supported by HDR
(High
Dynamic Range) can be reproduced as a
projected image.
*1 When [DYNAMIC CONTRAST] is set to [3]
Easy and highly...")
ENGLISH - 15 Features of the Projector High luminance and high contrast /£With the high efficient optical system that maximizes the output of the solid-state light source, and unique drive system, high luminance of 25 000 lm and high contrast of 20 000:1 *1 are realized in addition to the high color reproduction. Also, high-contrast image content supported by HDR (High Dynamic Range) can be reproduced as a projected image. *1 When [DYNAMIC CONTRAST] is set to [3] Easy and highly...

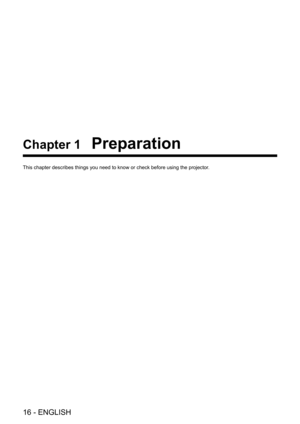

Page 16
![Page 16
16 - ENGLISH
Chapter 1 Preparation
This chapter describes things you need to know or check before using the\
projector.](http://img.usermanuals.tech/thumb/58/100231/w300_projector_manual_9478_d-15.png "Page 16
16 - ENGLISH
Chapter 1 Preparation
This chapter describes things you need to know or check before using the\
projector.")
16 - ENGLISH Chapter 1 Preparation This chapter describes things you need to know or check before using the\ projector.

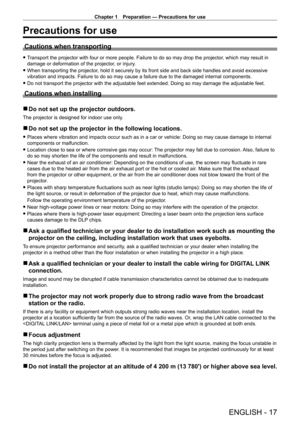

Page 17
![Page 17
Chapter 1 Preparation — Precautions for use
ENGLISH - 17
Precautions for use
Cautions when transporting
fTransport the projector with four or more people. Failure to do so may dr\
op the projector, which may result in
damage or deformation of the projector, or injury.
f When transporting the projector
, hold it securely by its front side and back side handles and avoid excessive
vibration and impacts. Failure to do so may cause a failure due to the d\
amaged internal components.
f Do not transport...](http://img.usermanuals.tech/thumb/58/100231/w300_projector_manual_9478_d-16.png "Page 17
Chapter 1 Preparation — Precautions for use
ENGLISH - 17
Precautions for use
Cautions when transporting
fTransport the projector with four or more people. Failure to do so may dr\
op the projector, which may result in
damage or deformation of the projector, or injury.
f When transporting the projector
, hold it securely by its front side and back side handles and avoid excessive
vibration and impacts. Failure to do so may cause a failure due to the d\
amaged internal components.
f Do not transport...")
Chapter 1 Preparation — Precautions for use ENGLISH - 17 Precautions for use Cautions when transporting fTransport the projector with four or more people. Failure to do so may dr\ op the projector, which may result in damage or deformation of the projector, or injury. f When transporting the projector , hold it securely by its front side and back side handles and avoid excessive vibration and impacts. Failure to do so may cause a failure due to the d\ amaged internal components. f Do not transport...

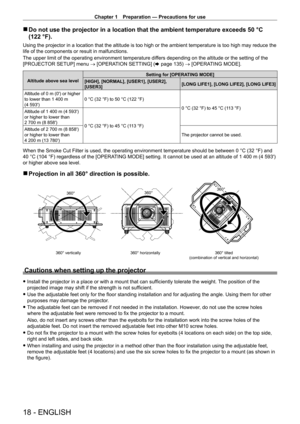

Page 18
![Page 18
Chapter 1 Preparation — Precautions for use
18 - ENGLISH
rDo not use the projector in a location that the ambient temperature exce\
eds 50 °C
(122 °F).
Using the projector in a location that the altitude is too high or the a\
mbient temperature is too high may reduce the
life of the components or result in malfunctions.
The upper limit of the operating environment temperature differs depending on the altitude or the setting of the
[PROJECTOR SETUP] menu → [OPERATION SETTING] ( x
page 135) →...](http://img.usermanuals.tech/thumb/58/100231/w300_projector_manual_9478_d-17.png "Page 18
Chapter 1 Preparation — Precautions for use
18 - ENGLISH
rDo not use the projector in a location that the ambient temperature exce\
eds 50 °C
(122 °F).
Using the projector in a location that the altitude is too high or the a\
mbient temperature is too high may reduce the
life of the components or result in malfunctions.
The upper limit of the operating environment temperature differs depending on the altitude or the setting of the
[PROJECTOR SETUP] menu → [OPERATION SETTING] ( x
page 135) →...")
Chapter 1 Preparation — Precautions for use 18 - ENGLISH rDo not use the projector in a location that the ambient temperature exce\ eds 50 °C (122 °F). Using the projector in a location that the altitude is too high or the a\ mbient temperature is too high may reduce the life of the components or result in malfunctions. The upper limit of the operating environment temperature differs depending on the altitude or the setting of the [PROJECTOR SETUP] menu → [OPERATION SETTING] ( x page 135) →...

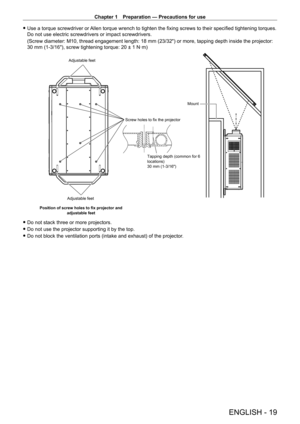

Page 19
Chapter 1 Preparation — Precautions for use ENGLISH - 19 fUse a torque screwdriver or Allen torque wrench to tighten the fixing screws to their specified tightening torques. Do not use electric screwdrivers or impact screwdrivers. (Screw diameter: M10, thread engagement length: 18 mm (23/32") or more, tapping depth inside the projector: 30 mm (1-3/16"), screw tightening torque: 20 ± 1 N·m) Screw holes to fix the projector Adjustable feet Position of screw holes to fix projector and...

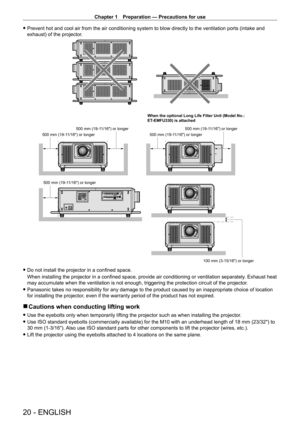

Page 20
Chapter 1 Preparation — Precautions for use 20 - ENGLISH fPrevent hot and cool air from the air conditioning system to blow directly to the ventilation ports (intake and exhaust) of the projector . 100 mm (3-15/16) or longer 500 mm (19-11/16) or longer 500 mm (19-11/16) or longer 500 mm (19-11/16) or longer When the optional Long Life Filter Unit (Model No.: ET-EMFU330) is attached 500 mm (19-11/16) or longer 500 mm (19-11/16) or longer f Do not install the projector in a confined space. When...
