Panasonic Projector PT-RZ570 User Manual

Chapter 4 Settings — Menu navigation
ENGLISH - 61

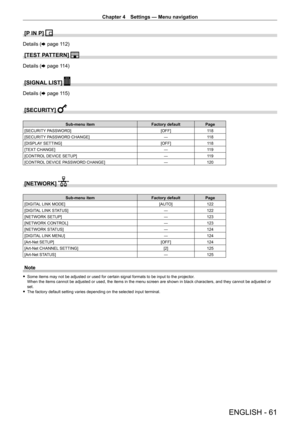

[P IN P]
Details (x page 112)
[TEST PATTERN]
Details (x page 114)
[SIGNAL LIST]
Details (x page 115)
[SECURITY]
Sub-menu itemFactory defaultPage
[SECURITY PASSWORD] [OFF]11 8
[SECURITY PASSWORD CHANGE] ―11 8
[DISPLAY SETTING] [OFF]11 8
[TEXT CHANGE] ―11 9
[CONTROL DEVICE SETUP] ―11 9
[CONTROL DEVICE PASSWORD CHANGE] ―120
[NETWORK]
Sub-menu item Factory defaultPage
[DIGITAL LINK MODE] [AUTO]122
[DIGITAL LINK STATUS] ―122
[NETWORK SETUP] ―123
[NETWORK...

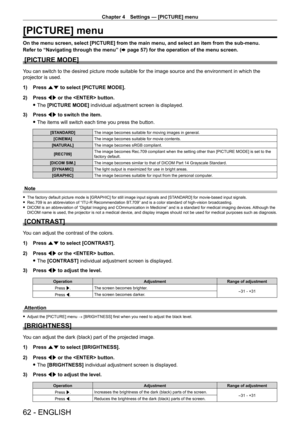

Chapter 4 Settings — [PICTURE] menu
62 - ENGLISH
[PICTURE] menu
On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
  page   57) for the operation of the menu screen.
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source and the environment in which the
projector is used.
1)

Press
 as to select [PICTURE MODE].
2)

Press
 qw or the  button.
 fThe

[PICTURE MODE] individual...

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 63

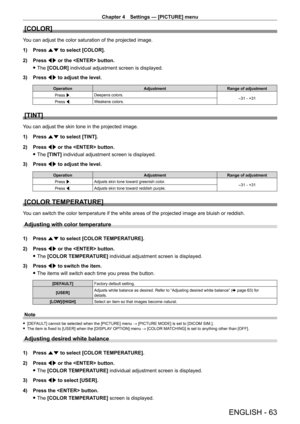

[COLOR]
You can adjust the color saturation of the projected image.
1)
Press
 as to select [COLOR].
2)

Press
 qw or the  button.
 fThe

[COLOR] individual adjustment screen is displayed.
3)

Press
 qw to adjust the level.
Operation AdjustmentRange of adjustment
Press w. Deepens colors.
-31 - +31
Press q. Weakens colors.
[TINT]
You can adjust the skin tone in the projected image.
1)

Press
 as to select [TINT].
2)

Press
 qw or the  button....

Chapter 4 Settings — [PICTURE] menu
64 - ENGLISH

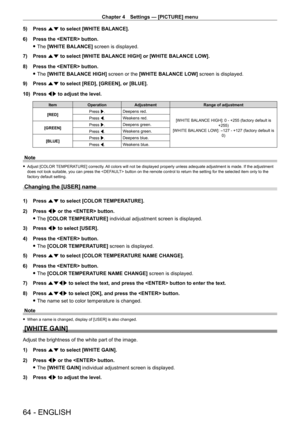

5) Press as to select [WHITE BALANCE].
6)
Press the  button.
 fThe

[WHITE BALANCE] screen is displayed.
7)

Press
 as to select [WHITE BALANCE HIGH] or [WHITE BALANCE LOW].
8)

Press the  button.
 fThe

[WHITE BALANCE HIGH] screen or the [WHITE BALANCE LOW] screen is displayed.
9)

Press
 as to select [RED], [GREEN], or [BLUE].
10)

Press
 qw to adjust the level.
Item Operation Adjustment Range of adjustment
[RED] Press w.
Deepens red.
[WHITE...

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 65
OperationAdjustmentRange of adjustment
Press w. Brightness of the white part gets stronger.
0 - +10
Press q. The image becomes more natural.

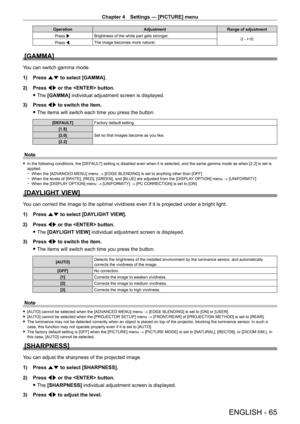

[GAMMA]
You can switch gamma mode.
1)

Press
 as to select [GAMMA].
2)

Press
 qw or the  button.
 fThe

[GAMMA] individual adjustment screen is displayed.
3)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[DEFAULT] Factory default setting.
[1.8] Set so that images become...

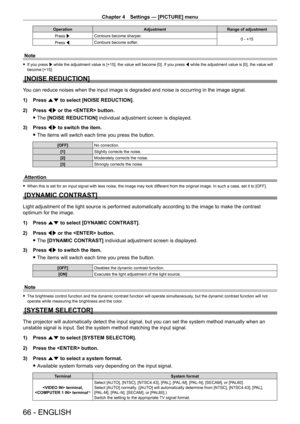

Chapter 4 Settings — [PICTURE] menu
66 - ENGLISH
OperationAdjustmentRange of adjustment
Press w. Contours become sharper.
0 - +15
Press q. Contours become softer.
Note
 f
If you press  w while the adjustment value is [+15], the value will become [0]. If you press  q while the adjustment value is [0], the value will
become [+15].
[NOISE REDUCTION]
You can reduce noises when the input image is degraded and noise is occur\
ring in the image signal.
1)

Press
 as to select [NOISE REDUCTION].
2)

Press...

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 67

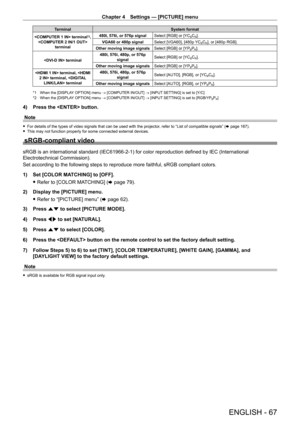

TerminalSystem format
 terminal
*2,
  terminal 480i, 576i, or 576p signal
Select [RGB] or [YCBCR].
VGA60 or 480p signal Select [VGA60], [480p YC
BCR], or [480p RGB].
Other moving image signals Select [RGB] or [YP
BPR].
 terminal 480i, 576i, 480p, or 576p
signal Select [RGB] or [YC
BCR].
Other moving image signals Select [RGB] or [YP
BPR].
 terminal,  terminal,  terminal 480i, 576i, 480p, or 576p
signal Select [AUTO], [RGB], or [YC
BCR].
Other moving...

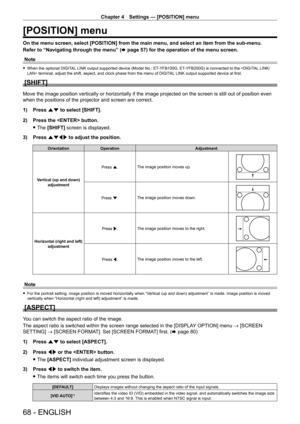

Chapter 4 Settings — [POSITION] menu
68 - ENGLISH
[POSITION] menu
On the menu screen, select [POSITION] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
  page   57) for the operation of the menu screen.
Note
 f When the optional DIGIT AL LINK output supported device (Model No.: ET- YFB100G, ET- YFB200G) is connected to the  terminal, adjust the shift, aspect, and clock phase from the menu of DIGIT AL LINK output supported device at first.
[SHIFT]
Move...

Chapter 4 Settings — [POSITION] menu
ENGLISH - 69

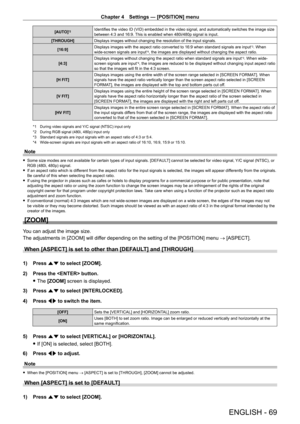

[AUTO]*2Identifies the video ID (VID) embedded in the video signal, and automatically switches the image size
between 4:3 and 16:9. This is enabled when 480i/480p signal is input.
[THROUGH] Displays images without changing the resolution of the input signals.
[16:9] Displays images with the aspect ratio converted to 16:9 when standard signals are input
*3. When
wide-screen signals are input*4, the images are displayed without changing the aspect ratio....

Chapter 4 Settings — [POSITION] menu
70 - ENGLISH

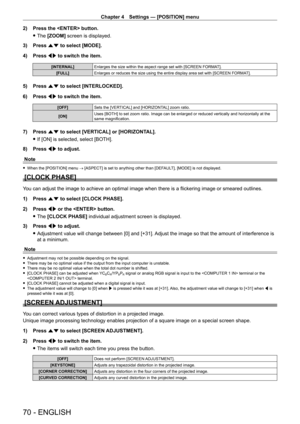

2) Press the  button.
 fThe

[ZOOM] screen is displayed.
3)

Press
 as to select [MODE].
4)

Press
 qw to switch the item.
[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMA T].
[FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMA T].
5) Press as to select [INTERLOCKED].
6)
Press
 qw to switch the item.
[OFF] Sets the [VERTICAL] and [HORIZONTAL] zoom ratio.
[ON] Uses [BOTH] to set zoom...
