Panasonic Projector PT-SW280A User Manual
Here you can view all the pages of manual Panasonic Projector PT-SW280A User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.

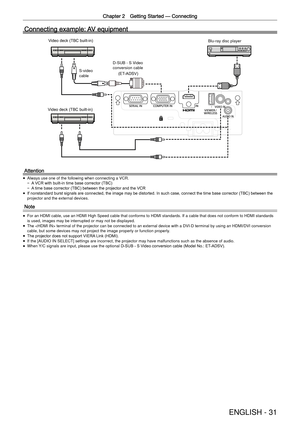

Page 31
Chapter 2 Getting Started — Connecting ENGLISH - 31 Connecting example: AV equipment Video deck (TBC built-in)Video deck (TBC built-in) Blu-ray disc player Attention f Always use one of the following when connecting a VCR. g A VCR with built-in time base corrector (TBC) g A time base corrector (TBC) between the projector and the VCR f If nonstandard burst signals are connected, the image may be distorted. In such case, connect the time base corrector (TBC) between the projector and the external...

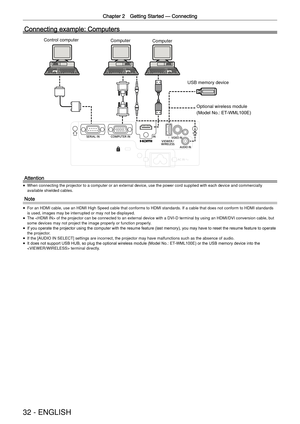

Page 32
![Page 32
Chapter 2 Getting Started —
Connecting
32 - ENGLISH
Connecting example: Computers
Computer
Computer
Optional wireless module
(Model No.: ET-WML100E)
Control computer
Attention
f When connecting the projector to a computer or an external device, use t\
he power cord supplied with each device and commercially
available shielded cables.
Note
f For an HDMI cable, use an HDMI High Speed cable that conforms to HDMI st\
andards. If a cable that does not conform to HDMI standards
is used, images may be...](http://img.usermanuals.tech/thumb/58/100567/w300_projector_manual_9663_d-31.png "Page 32
Chapter 2 Getting Started —
Connecting
32 - ENGLISH
Connecting example: Computers
Computer
Computer
Optional wireless module
(Model No.: ET-WML100E)
Control computer
Attention
f When connecting the projector to a computer or an external device, use t\
he power cord supplied with each device and commercially
available shielded cables.
Note
f For an HDMI cable, use an HDMI High Speed cable that conforms to HDMI st\
andards. If a cable that does not conform to HDMI standards
is used, images may be...")
Chapter 2 Getting Started — Connecting 32 - ENGLISH Connecting example: Computers Computer Computer Optional wireless module (Model No.: ET-WML100E) Control computer Attention f When connecting the projector to a computer or an external device, use t\ he power cord supplied with each device and commercially available shielded cables. Note f For an HDMI cable, use an HDMI High Speed cable that conforms to HDMI st\ andards. If a cable that does not conform to HDMI standards is used, images may be...

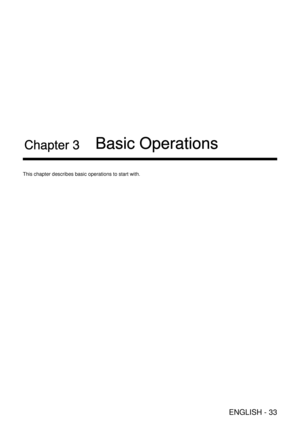

Page 33
ENGLISH - 33 Chapter 3 Basic Operations This chapter describes basic operations to start with.

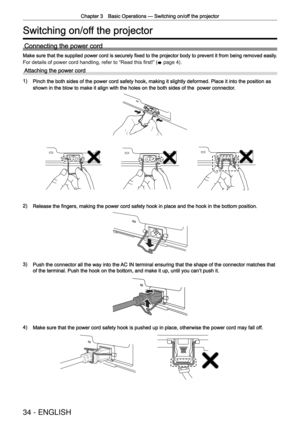

Page 34
![Page 34
Chapter 3 Basic Operations —
Switching on/off the projector
34 - ENGLISH
Switching on/off the projector
Connecting the power cord
Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily.
For details of power cord handling, refer to “
Read this first! ”
(
x page 4).
Attaching the power cord
1) Pinch the both sides of the power cord safety hook, making it slightly d\
eformed. Place it into the position as
shown in the blow to make it align...](http://img.usermanuals.tech/thumb/58/100567/w300_projector_manual_9663_d-33.png "Page 34
Chapter 3 Basic Operations —
Switching on/off the projector
34 - ENGLISH
Switching on/off the projector
Connecting the power cord
Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily.
For details of power cord handling, refer to “
Read this first! ”
(
x page 4).
Attaching the power cord
1) Pinch the both sides of the power cord safety hook, making it slightly d\
eformed. Place it into the position as
shown in the blow to make it align...")
Chapter 3 Basic Operations — Switching on/off the projector 34 - ENGLISH Switching on/off the projector Connecting the power cord Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily. For details of power cord handling, refer to “ Read this first! ” ( x page 4). Attaching the power cord 1) Pinch the both sides of the power cord safety hook, making it slightly d\ eformed. Place it into the position as shown in the blow to make it align...

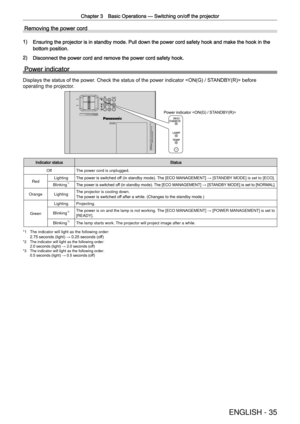

Page 35
![Page 35
Chapter 3 Basic Operations —
Switching on/off the projector
ENGLISH - 35
Removing the power cord
1) Ensuring the projector is in standby mode. Pull down the power cord safe\
ty hook and make the hook in the
bottom position.
2) Disconnect the power cord and remove the power cord safety hook.
Power indicator
Displays the status of the power. Check the status of the power indicator before
operating the projector.
PT-SX320A
Power indicator
Indicator statusStatus
Off The power cord is unplugged.
Red...](http://img.usermanuals.tech/thumb/58/100567/w300_projector_manual_9663_d-34.png "Page 35
Chapter 3 Basic Operations —
Switching on/off the projector
ENGLISH - 35
Removing the power cord
1) Ensuring the projector is in standby mode. Pull down the power cord safe\
ty hook and make the hook in the
bottom position.
2) Disconnect the power cord and remove the power cord safety hook.
Power indicator
Displays the status of the power. Check the status of the power indicator before
operating the projector.
PT-SX320A
Power indicator
Indicator statusStatus
Off The power cord is unplugged.
Red...")
Chapter 3 Basic Operations — Switching on/off the projector ENGLISH - 35 Removing the power cord 1) Ensuring the projector is in standby mode. Pull down the power cord safe\ ty hook and make the hook in the bottom position. 2) Disconnect the power cord and remove the power cord safety hook. Power indicator Displays the status of the power. Check the status of the power indicator before operating the projector. PT-SX320A Power indicator Indicator statusStatus Off The power cord is unplugged. Red...

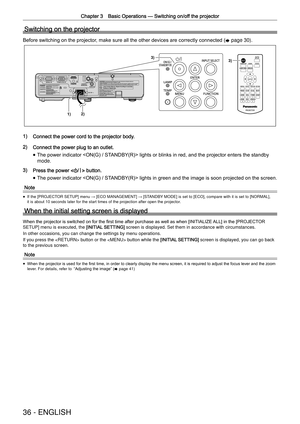

Page 36
Chapter 3 Basic Operations — Switching on/off the projector 36 - ENGLISH Switching on the projector Before switching on the projector, make sure all the other devices are correctly connected ( x page 30). 2) 3) 3)1) 1) Connect the power cord to the projector body. 2) Connect the power plug to an outlet. f The power indicator lights or blinks in red, and the projector enters the standby mode. 3) Press the power button. f The power indicator lights in green and the image is soon projected on the...
Page 37
![Page 37
Chapter 3 Basic Operations —
Switching on/off the projector
ENGLISH - 37
Initial setting (display language)
Select the language to show on the screen.
After the initial setting completed, you can change the display language\
from the [LANGUAGE] menu.
1) Press asqw to select the display language.
2) Press the button to proceed to the initial setting.
Initial setting (projector setting)
Set each item.
ENTER
SELECT
RETURN AUTO
4:3
NORMAL
1) Press as to select an item.
ItemDescriptionPage
[PROJECTION...](http://img.usermanuals.tech/thumb/58/100567/w300_projector_manual_9663_d-36.png "Page 37
Chapter 3 Basic Operations —
Switching on/off the projector
ENGLISH - 37
Initial setting (display language)
Select the language to show on the screen.
After the initial setting completed, you can change the display language\
from the [LANGUAGE] menu.
1) Press asqw to select the display language.
2) Press the button to proceed to the initial setting.
Initial setting (projector setting)
Set each item.
ENTER
SELECT
RETURN AUTO
4:3
NORMAL
1) Press as to select an item.
ItemDescriptionPage
[PROJECTION...")
Chapter 3 Basic Operations — Switching on/off the projector ENGLISH - 37 Initial setting (display language) Select the language to show on the screen. After the initial setting completed, you can change the display language\ from the [LANGUAGE] menu. 1) Press asqw to select the display language. 2) Press the button to proceed to the initial setting. Initial setting (projector setting) Set each item. ENTER SELECT RETURN AUTO 4:3 NORMAL 1) Press as to select an item. ItemDescriptionPage [PROJECTION...

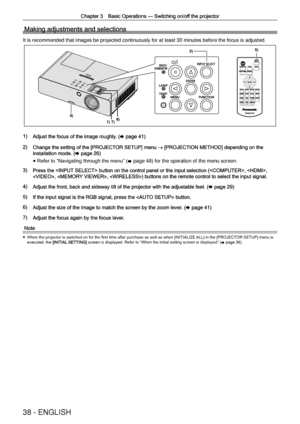

Page 38
![Page 38
Chapter 3 Basic Operations —
Switching on/off the projector
38 - ENGLISH
Making adjustments and selections
It is recommended that images be projected continuously for at least 30 \
minutes before the focus is adjusted.
5)
3)
4) 6)
1) 7)
1) Adjust the focus of the image roughly. (x page 41)
2) Change the setting of the [PROJECTOR SETUP] menu → [PROJECTION METHOD] depending on the
installation mode. (x page 26)
f Refer to
“
Navigating through the menu ”
(
x page 48) for the operation of the menu...](http://img.usermanuals.tech/thumb/58/100567/w300_projector_manual_9663_d-37.png "Page 38
Chapter 3 Basic Operations —
Switching on/off the projector
38 - ENGLISH
Making adjustments and selections
It is recommended that images be projected continuously for at least 30 \
minutes before the focus is adjusted.
5)
3)
4) 6)
1) 7)
1) Adjust the focus of the image roughly. (x page 41)
2) Change the setting of the [PROJECTOR SETUP] menu → [PROJECTION METHOD] depending on the
installation mode. (x page 26)
f Refer to
“
Navigating through the menu ”
(
x page 48) for the operation of the menu...")
Chapter 3 Basic Operations — Switching on/off the projector 38 - ENGLISH Making adjustments and selections It is recommended that images be projected continuously for at least 30 \ minutes before the focus is adjusted. 5) 3) 4) 6) 1) 7) 1) Adjust the focus of the image roughly. (x page 41) 2) Change the setting of the [PROJECTOR SETUP] menu → [PROJECTION METHOD] depending on the installation mode. (x page 26) f Refer to “ Navigating through the menu ” ( x page 48) for the operation of the menu...

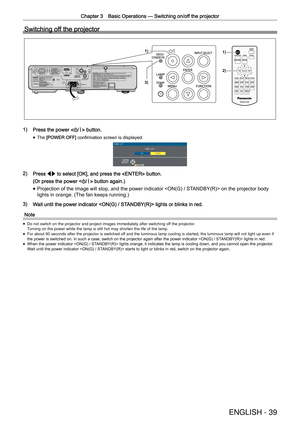

Page 39
![Page 39
Chapter 3 Basic Operations —
Switching on/off the projector
ENGLISH - 39
Switching off the projector
3) 1)
1)
2)
1) Press the power button.
f The [POWER OFF] confirmation screen is displayed.
ENTER
SELECTRETURN
2) Press qw to select [OK], and press the button.
(Or press the power button again.)
f Projection of the image will stop, and the power indicator on the projector body
lights in orange. (The fan keeps running.)
3) Wait until the power indicator lights or blinks in red.
Note
f Do not...](http://img.usermanuals.tech/thumb/58/100567/w300_projector_manual_9663_d-38.png "Page 39
Chapter 3 Basic Operations —
Switching on/off the projector
ENGLISH - 39
Switching off the projector
3) 1)
1)
2)
1) Press the power button.
f The [POWER OFF] confirmation screen is displayed.
ENTER
SELECTRETURN
2) Press qw to select [OK], and press the button.
(Or press the power button again.)
f Projection of the image will stop, and the power indicator on the projector body
lights in orange. (The fan keeps running.)
3) Wait until the power indicator lights or blinks in red.
Note
f Do not...")
Chapter 3 Basic Operations — Switching on/off the projector ENGLISH - 39 Switching off the projector 3) 1) 1) 2) 1) Press the power button. f The [POWER OFF] confirmation screen is displayed. ENTER SELECTRETURN 2) Press qw to select [OK], and press the button. (Or press the power button again.) f Projection of the image will stop, and the power indicator on the projector body lights in orange. (The fan keeps running.) 3) Wait until the power indicator lights or blinks in red. Note f Do not...
Page 40

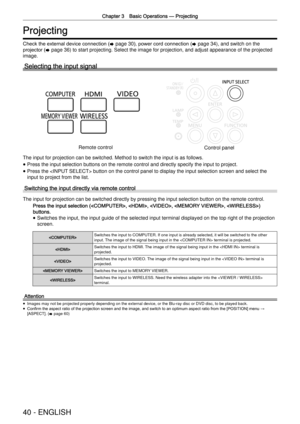

![Page 40
Chapter 3 Basic Operations —
Projecting
40 - ENGLISH
Projecting
Check the external device connection (
x page 30), power cord connection (
x page 34), and switch on the
projector ( x page 36) to start projecting. Select the image for projection, and adjust appe\
arance of the projected
image.
Selecting the input signal
Control panel
Remote control
The input for projection can be switched. Method to switch the input is \
as follows.
f Press the input selection buttons on the remote control and...](http://img.usermanuals.tech/thumb/58/100567/w300_projector_manual_9663_d-39.png "Page 40
Chapter 3 Basic Operations —
Projecting
40 - ENGLISH
Projecting
Check the external device connection (
x page 30), power cord connection (
x page 34), and switch on the
projector ( x page 36) to start projecting. Select the image for projection, and adjust appe\
arance of the projected
image.
Selecting the input signal
Control panel
Remote control
The input for projection can be switched. Method to switch the input is \
as follows.
f Press the input selection buttons on the remote control and...")
Chapter 3 Basic Operations — Projecting 40 - ENGLISH Projecting Check the external device connection ( x page 30), power cord connection ( x page 34), and switch on the projector ( x page 36) to start projecting. Select the image for projection, and adjust appe\ arance of the projected image. Selecting the input signal Control panel Remote control The input for projection can be switched. Method to switch the input is \ as follows. f Press the input selection buttons on the remote control and...
