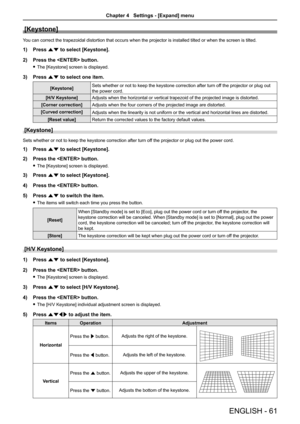

Page 61

ENGLISH - 61
[Keystone]
You can correct the trapezoidal distortion that occurs when the projector is installed tilted or when the screen is tilted.
1) Press as to select [Keystone].
2)  Press the  button.

f The [Keystone] screen is displayed.
3)  Press as to select one item.
[Keystone] Sets whether or not to keep the keystone correction after turn off the projector or plug out
the power cord.
[H/V Keystone] Adjusts when the horizontal or vertical trapezoid of the projected image is distorted.
[Corner...

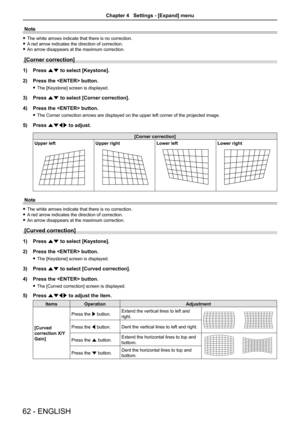

Page 62

62 - ENGLISH
Note

f The white arrows indicate that there is no correction.

f A red arrow indicates the direction of correction.

f An arrow disappears at the maximum correction.
[Corner correction]
1)  Press as to select [Keystone].
2)  Press the  button.

f The [Keystone] screen is displayed.
3)  Press as to select [Corner correction].
4)  Press the  button.

f The Corner correction arrows are displayed on the upper left corner of the projected image.
5)  Press asqw to adjust.
[Corner...

Page 63

ENGLISH - 63
[Curved
correction X
Offset]Press the w button.
Used to correct the right side vertical
lines. Extend the top and bottom while
keeping the center part as it is.
Press the q button.Used to correct the left side vertical
lines. Extend the top and bottom while
keeping the center part as it is.
Press the a button. Used to correct the both sides of the
vertical lines. Extend the lower corners
while keeping the center part and the
upper part as they are.
Press the s button.Used to...

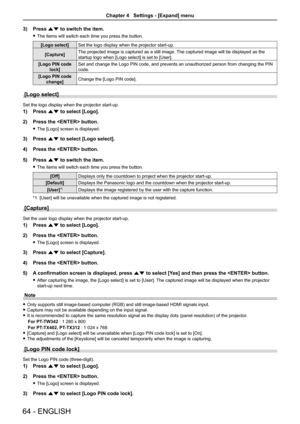

Page 64

64 - ENGLISH
3) Press as to switch the item.

f The items will switch each time you press the button.
[Logo select] Set the logo display when the projector start-up.
[Capture] The projected image is captured as a still image. The captured image will be displayed as the
startup logo when [Logo select] is set to [User].
[Logo PIN code  lock] Set and change the Logo PIN code, and prevents an unauthorized person from changing the PIN
code.
[Logo PIN code  change] Change the [Logo PIN code].
[Logo select]...

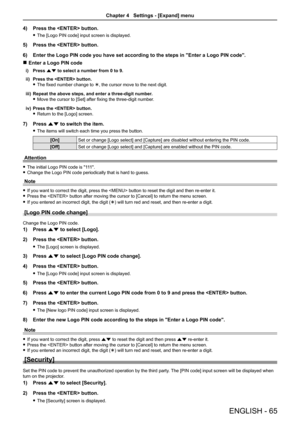

Page 65

ENGLISH - 65
4) Press the  button.

f The [Logo PIN code] input screen is displayed.
5)  Press the  button.
6)  Enter the Logo PIN code you have set according to the steps in "Enter a \
Logo PIN code".

r Enter a Logo PIN code
i)  Press as to select a number from 0 to 9.
ii)  Press the  button.

f The fixed number change to  , the cursor move to the next digit.
iii)  Repeat the above steps, and enter a three-digit number.

f Move the cursor to [Set] after fixing the three-digit number.
iv)...

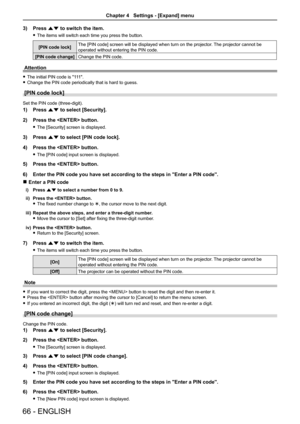

Page 66

66 - ENGLISH
3) Press as to switch the item.

f The items will switch each time you press the button.
[PIN code lock] The [PIN code] screen will be displayed when turn on the projector
. The projector cannot be
operated without entering the PIN code.
[PIN code change] Change the PIN code.
Attention

f The initial PIN code is "111".

f Change the PIN code periodically that is hard to guess.
[PIN code lock]
Set the PIN code (three-digit).
1)  Press as to select [Security].
2)  Press the...

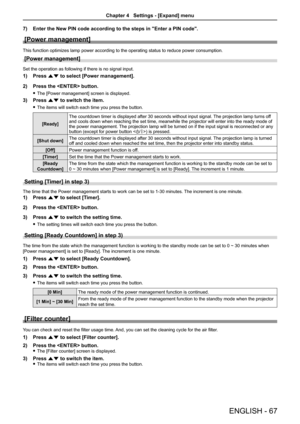

Page 67

ENGLISH - 67
7) Enter the New PIN code according to the steps in "Enter a PIN code".
[Power management]
This function optimizes lamp power according to the operating status to reduce power consumption.
[Power management]
Set the operation as following if there is no signal input.
1) Press as to select [Power management].
2)  Press the  button.

f The [Power management] screen is displayed.
3)  Press as to switch the item.

f The items will switch each time you press the button.
[Ready] The...

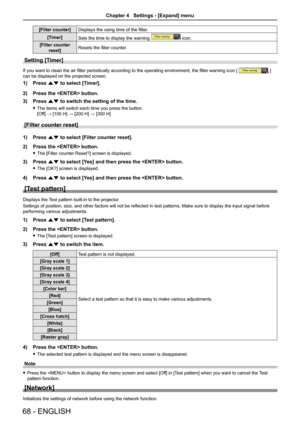

Page 68

68 - ENGLISH
[Filter counter]Displays the using time of the filter.
[Timer] Sets the time to display the warning
 icon.
[Filter counter  reset] Resets the filter counter.
Setting [Timer]
If you want to clean the air filter periodically according to the operating environment, the filter warning icon [  ]
can be displayed on the projected screen.
1)  Press as to select [Timer].
2)  Press the  button.
3)  Press as to switch the setting of the time.

f The items will switch each time you press the...

Page 69

ENGLISH - 69
[Network setting]
1) Press as to select [Network].
2)  Press the  button.

f The [Network] screen is displayed.
3)  Press the  button.

f The [Network setting] screen is displayed.
4)  Press as to select an item, and change the setting according to the instructions\
.
[DHCP]  [On]:
If a DHCP server exists in the network to which the projector is connected,
the IP address will automatically be acquired.
[Off]: If a DHCP server does not exist in the network to which the projector is...

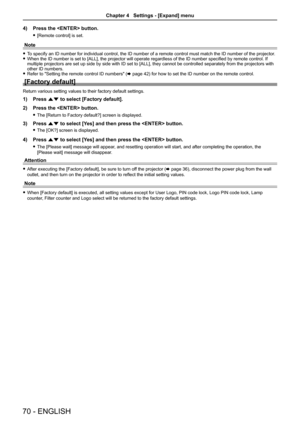

Page 70

70 - ENGLISH
4) Press the  button.

f [Remote control] is set.
Note

f To specify an ID number for individual control, the ID number of a remote\
 control must match the ID number of the projector.

f When the ID number is set to [ALL], the projector will operate regardless of the ID number specified by remote control. If
multiple projectors are set up side by side with ID set to [ALL], they cannot be controlled separately from the projectors with
other ID numbers.

f Refer to "Setting the...
