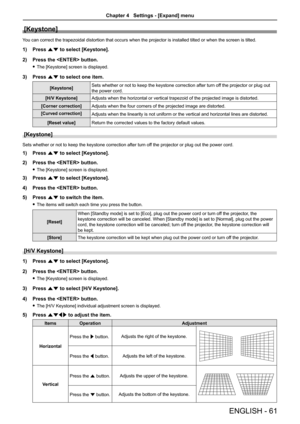

[Keystone]
You can correct the trapezoidal distortion that occurs when the projector is installed tilted or when the screen is tilted.
1) Press as to select [Keystone].
2) Press the  button.
 fThe [Keystone] screen is displayed.
3) Press as to select one item.
[Keystone]Sets whether or not to keep the keystone correction after turn off the projector or plug out
the power cord.
[H/V Keystone]Adjusts when the horizontal or vertical trapezoid of the projected image is distorted.
[Corner...

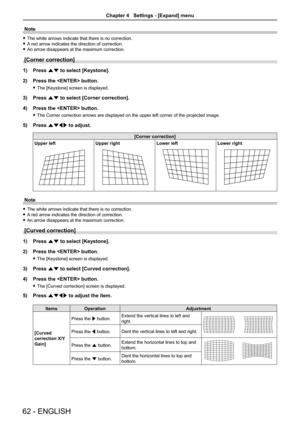

62 - ENGLISH
Note
 fThe white arrows indicate that there is no correction.
 fA red arrow indicates the direction of correction.
 fAn arrow disappears at the maximum correction.
[Corner correction]
1) Press as to select [Keystone].
2) Press the  button.
 fThe [Keystone] screen is displayed.
3) Press as to select [Corner correction].
4) Press the  button.
 fThe Corner correction arrows are displayed on the upper left corner of the projected image.
5) Press asqw to adjust.
[Corner correction]
Upper...

ENGLISH - 63
[Curved
correction X
Offset]
Press the w button.
Used to correct the right side vertical
lines. Extend the top and bottom while
keeping the center part as it is.
Press the q button.
Used to correct the left side vertical
lines. Extend the top and bottom while
keeping the center part as it is.
Press the a button.
Used to correct the both sides of the
vertical lines. Extend the lower corners
while keeping the center part and the
upper part as they are.
Press the s button.
Used to...

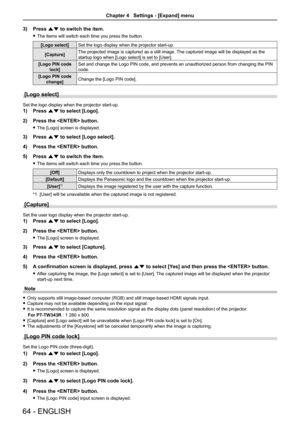

64 - ENGLISH
3) Press as to switch the item.
 fThe items will switch each time you press the button.
[Logo select]Set the logo display when the projector start-up.
[Capture]The projected image is captured as a still image. The captured image will be displayed as the
startup logo when [Logo select] is set to [User].
[Logo PIN code
lock]
Set and change the Logo PIN code, and prevents an unauthorized person from changing the PIN
code.
[Logo PIN code
change]Change the [Logo PIN code].
[Logo select]
Set...

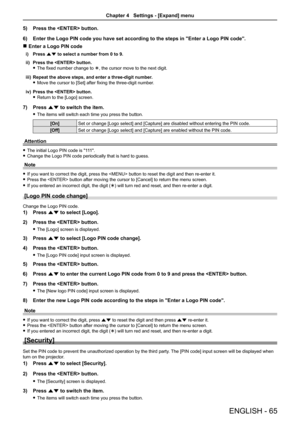

ENGLISH - 65
5) Press the  button.
6) Enter the Logo PIN code you have set according to the steps in "Enter a \
Logo PIN code".
 rEnter a Logo PIN code
i) Press as to select a number from 0 to 9.
ii) Press the  button.
 fThe fixed number change to , the cursor move to the next digit.
iii) Repeat the above steps, and enter a three-digit number.
 fMove the cursor to [Set] after fixing the three-digit number.
iv) Press the  button.
 fReturn to the [Logo] screen.
7) Press as to switch the item....

66 - ENGLISH
[PIN code lock]The [PIN code] screen will be displayed when turn on the projector. The projector cannot be
operated without entering the PIN code.
[PIN code change]Change the PIN code.
Attention
 fThe initial PIN code is "111".
 fChange the PIN code periodically that is hard to guess.
[PIN code lock]
Set the PIN code (three-digit).
1) Press as to select [Security].
2) Press the  button.
 fThe [Security] screen is displayed.
3) Press as to select [PIN code lock].
4) Press the...

ENGLISH - 67
[Power management]
This function optimizes lamp power according to the operating status to reduce power consumption.
[Power management]
Set the operation as following if there is no signal input.
1) Press as to select [Power management].
2) Press the  button.
 fThe [Power management] screen is displayed.
3) Press as to switch the item.
 fThe items will switch each time you press the button.
[Ready]
The countdown timer is displayed after 30 seconds without input signal. \
The projection lamp...

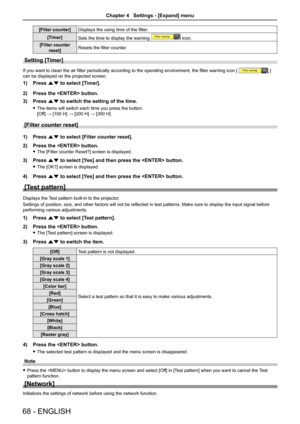

68 - ENGLISH
[Filter counter]Displays the using time of the filter.
[Timer]Sets the time to display the warning  icon.
[Filter counter
reset]Resets the filter counter.
Setting [Timer]
If you want to clean the air filter periodically according to the operating environment, the filter warning icon [  ]
can be displayed on the projected screen.
1) Press as to select [Timer].
2) Press the  button.
3) Press as to switch the setting of the time.
 fThe items will switch each time you press the button....

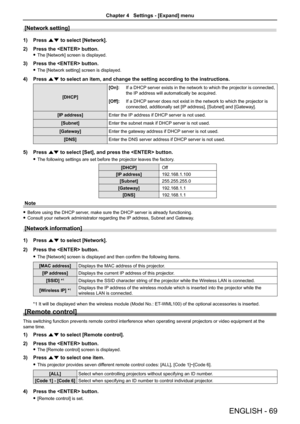

ENGLISH - 69
[Network setting]
1) Press as to select [Network].
2) Press the  button.
 fThe [Network] screen is displayed.
3) Press the  button.
 fThe [Network setting] screen is displayed.
4) Press as to select an item, and change the setting according to the instructions\
.
[DHCP]
[On]:If a DHCP server exists in the network to which the projector is connected,
the IP address will automatically be acquired.
[Off]:If a DHCP server does not exist in the network to which the projector is
connected,...

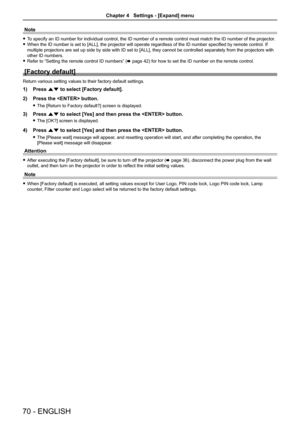

70 - ENGLISH
Note
 fTo specify an ID number for individual control, the ID number of a remote\
 control must match the ID number of the projector.
 fWhen the ID number is set to [ALL], the projector will operate regardless of the ID number specified by remote control. If
multiple projectors are set up side by side with ID set to [ALL], they cannot be controlled separately from the projectors with
other ID numbers.
 fRefer to “Setting the remote control ID numbers” (x page 42) for how to set the ID...
