Panasonic Projector PT-TX402 User Manual
Here you can view all the pages of manual Panasonic Projector PT-TX402 User Manual. The Panasonic manuals for Projector are available online for free. You can easily download all the documents as PDF.
Page 61

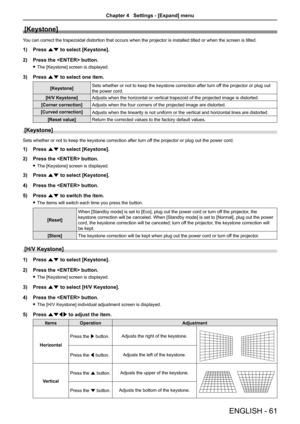

![Page 61
ENGLISH - 61
[Keystone]
You can correct the trapezoidal distortion that occurs when the projector is installed tilted or when the screen is tilted.
1) Press as to select [Keystone].
2) Press the button.
f The [Keystone] screen is displayed.
3) Press as to select one item.
[Keystone] Sets whether or not to keep the keystone correction after turn off the projector or plug out
the power cord.
[H/V Keystone] Adjusts when the horizontal or vertical trapezoid of the projected image is distorted.
[Corner...](http://img.usermanuals.tech/thumb/58/100406/w300_projector_manual_9157_d-60.png "Page 61
ENGLISH - 61
[Keystone]
You can correct the trapezoidal distortion that occurs when the projector is installed tilted or when the screen is tilted.
1) Press as to select [Keystone].
2) Press the button.
f The [Keystone] screen is displayed.
3) Press as to select one item.
[Keystone] Sets whether or not to keep the keystone correction after turn off the projector or plug out
the power cord.
[H/V Keystone] Adjusts when the horizontal or vertical trapezoid of the projected image is distorted.
[Corner...")
ENGLISH - 61 [Keystone] You can correct the trapezoidal distortion that occurs when the projector is installed tilted or when the screen is tilted. 1) Press as to select [Keystone]. 2) Press the button. f The [Keystone] screen is displayed. 3) Press as to select one item. [Keystone] Sets whether or not to keep the keystone correction after turn off the projector or plug out the power cord. [H/V Keystone] Adjusts when the horizontal or vertical trapezoid of the projected image is distorted. [Corner...
Page 62

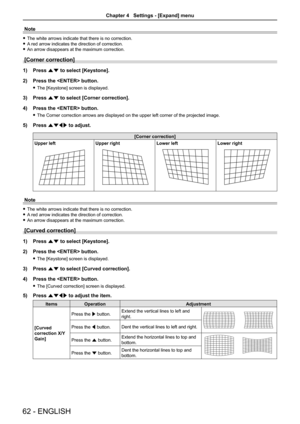

![Page 62
62 - ENGLISH
Note
f The white arrows indicate that there is no correction.
f A red arrow indicates the direction of correction.
f An arrow disappears at the maximum correction.
[Corner correction]
1) Press as to select [Keystone].
2) Press the button.
f The [Keystone] screen is displayed.
3) Press as to select [Corner correction].
4) Press the button.
f The Corner correction arrows are displayed on the upper left corner of the projected image.
5) Press asqw to adjust.
[Corner...](http://img.usermanuals.tech/thumb/58/100406/w300_projector_manual_9157_d-61.png "Page 62
62 - ENGLISH
Note
f The white arrows indicate that there is no correction.
f A red arrow indicates the direction of correction.
f An arrow disappears at the maximum correction.
[Corner correction]
1) Press as to select [Keystone].
2) Press the button.
f The [Keystone] screen is displayed.
3) Press as to select [Corner correction].
4) Press the button.
f The Corner correction arrows are displayed on the upper left corner of the projected image.
5) Press asqw to adjust.
[Corner...")
62 - ENGLISH Note f The white arrows indicate that there is no correction. f A red arrow indicates the direction of correction. f An arrow disappears at the maximum correction. [Corner correction] 1) Press as to select [Keystone]. 2) Press the button. f The [Keystone] screen is displayed. 3) Press as to select [Corner correction]. 4) Press the button. f The Corner correction arrows are displayed on the upper left corner of the projected image. 5) Press asqw to adjust. [Corner...
Page 63

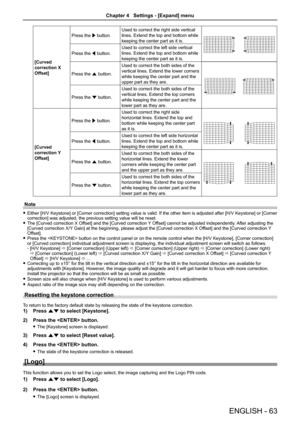

![Page 63
ENGLISH - 63
[Curved
correction X
Offset]Press the w button.
Used to correct the right side vertical
lines. Extend the top and bottom while
keeping the center part as it is.
Press the q button.Used to correct the left side vertical
lines. Extend the top and bottom while
keeping the center part as it is.
Press the a button. Used to correct the both sides of the
vertical lines. Extend the lower corners
while keeping the center part and the
upper part as they are.
Press the s button.Used to...](http://img.usermanuals.tech/thumb/58/100406/w300_projector_manual_9157_d-62.png "Page 63
ENGLISH - 63
[Curved
correction X
Offset]Press the w button.
Used to correct the right side vertical
lines. Extend the top and bottom while
keeping the center part as it is.
Press the q button.Used to correct the left side vertical
lines. Extend the top and bottom while
keeping the center part as it is.
Press the a button. Used to correct the both sides of the
vertical lines. Extend the lower corners
while keeping the center part and the
upper part as they are.
Press the s button.Used to...")
ENGLISH - 63 [Curved correction X Offset]Press the w button. Used to correct the right side vertical lines. Extend the top and bottom while keeping the center part as it is. Press the q button.Used to correct the left side vertical lines. Extend the top and bottom while keeping the center part as it is. Press the a button. Used to correct the both sides of the vertical lines. Extend the lower corners while keeping the center part and the upper part as they are. Press the s button.Used to...
Page 64

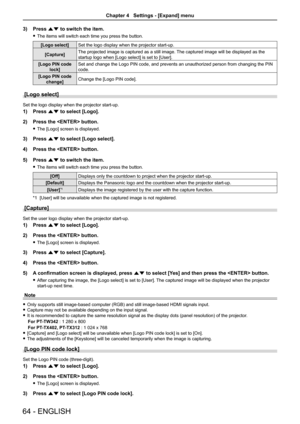

![Page 64
64 - ENGLISH
3) Press as to switch the item.
f The items will switch each time you press the button.
[Logo select] Set the logo display when the projector start-up.
[Capture] The projected image is captured as a still image. The captured image will be displayed as the
startup logo when [Logo select] is set to [User].
[Logo PIN code lock] Set and change the Logo PIN code, and prevents an unauthorized person from changing the PIN
code.
[Logo PIN code change] Change the [Logo PIN code].
[Logo select]...](http://img.usermanuals.tech/thumb/58/100406/w300_projector_manual_9157_d-63.png "Page 64
64 - ENGLISH
3) Press as to switch the item.
f The items will switch each time you press the button.
[Logo select] Set the logo display when the projector start-up.
[Capture] The projected image is captured as a still image. The captured image will be displayed as the
startup logo when [Logo select] is set to [User].
[Logo PIN code lock] Set and change the Logo PIN code, and prevents an unauthorized person from changing the PIN
code.
[Logo PIN code change] Change the [Logo PIN code].
[Logo select]...")
64 - ENGLISH 3) Press as to switch the item. f The items will switch each time you press the button. [Logo select] Set the logo display when the projector start-up. [Capture] The projected image is captured as a still image. The captured image will be displayed as the startup logo when [Logo select] is set to [User]. [Logo PIN code lock] Set and change the Logo PIN code, and prevents an unauthorized person from changing the PIN code. [Logo PIN code change] Change the [Logo PIN code]. [Logo select]...
Page 65

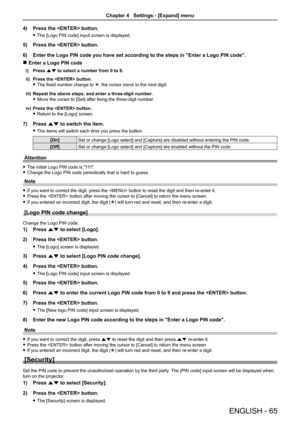

![Page 65
ENGLISH - 65
4) Press the button.
f The [Logo PIN code] input screen is displayed.
5) Press the button.
6) Enter the Logo PIN code you have set according to the steps in "Enter a \
Logo PIN code".
r Enter a Logo PIN code
i) Press as to select a number from 0 to 9.
ii) Press the button.
f The fixed number change to , the cursor move to the next digit.
iii) Repeat the above steps, and enter a three-digit number.
f Move the cursor to [Set] after fixing the three-digit number.
iv)...](http://img.usermanuals.tech/thumb/58/100406/w300_projector_manual_9157_d-64.png "Page 65
ENGLISH - 65
4) Press the button.
f The [Logo PIN code] input screen is displayed.
5) Press the button.
6) Enter the Logo PIN code you have set according to the steps in \"Enter a \
Logo PIN code\".
r Enter a Logo PIN code
i) Press as to select a number from 0 to 9.
ii) Press the button.
f The fixed number change to , the cursor move to the next digit.
iii) Repeat the above steps, and enter a three-digit number.
f Move the cursor to [Set] after fixing the three-digit number.
iv)...")
ENGLISH - 65 4) Press the button. f The [Logo PIN code] input screen is displayed. 5) Press the button. 6) Enter the Logo PIN code you have set according to the steps in "Enter a \ Logo PIN code". r Enter a Logo PIN code i) Press as to select a number from 0 to 9. ii) Press the button. f The fixed number change to , the cursor move to the next digit. iii) Repeat the above steps, and enter a three-digit number. f Move the cursor to [Set] after fixing the three-digit number. iv)...
Page 66
![Page 66
66 - ENGLISH
3) Press as to switch the item.
f The items will switch each time you press the button.
[PIN code lock] The [PIN code] screen will be displayed when turn on the projector
. The projector cannot be
operated without entering the PIN code.
[PIN code change] Change the PIN code.
Attention
f The initial PIN code is "111".
f Change the PIN code periodically that is hard to guess.
[PIN code lock]
Set the PIN code (three-digit).
1) Press as to select [Security].
2) Press the...](http://img.usermanuals.tech/thumb/58/100406/w300_projector_manual_9157_d-65.png "Page 66
66 - ENGLISH
3) Press as to switch the item.
f The items will switch each time you press the button.
[PIN code lock] The [PIN code] screen will be displayed when turn on the projector
. The projector cannot be
operated without entering the PIN code.
[PIN code change] Change the PIN code.
Attention
f The initial PIN code is \"111\".
f Change the PIN code periodically that is hard to guess.
[PIN code lock]
Set the PIN code (three-digit).
1) Press as to select [Security].
2) Press the...")
66 - ENGLISH 3) Press as to switch the item. f The items will switch each time you press the button. [PIN code lock] The [PIN code] screen will be displayed when turn on the projector . The projector cannot be operated without entering the PIN code. [PIN code change] Change the PIN code. Attention f The initial PIN code is "111". f Change the PIN code periodically that is hard to guess. [PIN code lock] Set the PIN code (three-digit). 1) Press as to select [Security]. 2) Press the...
Page 67

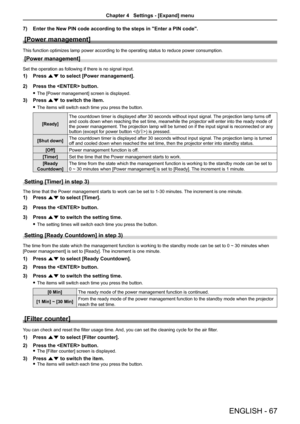

![Page 67
ENGLISH - 67
7) Enter the New PIN code according to the steps in "Enter a PIN code".
[Power management]
This function optimizes lamp power according to the operating status to reduce power consumption.
[Power management]
Set the operation as following if there is no signal input.
1) Press as to select [Power management].
2) Press the button.
f The [Power management] screen is displayed.
3) Press as to switch the item.
f The items will switch each time you press the button.
[Ready] The...](http://img.usermanuals.tech/thumb/58/100406/w300_projector_manual_9157_d-66.png "Page 67
ENGLISH - 67
7) Enter the New PIN code according to the steps in \"Enter a PIN code\".
[Power management]
This function optimizes lamp power according to the operating status to reduce power consumption.
[Power management]
Set the operation as following if there is no signal input.
1) Press as to select [Power management].
2) Press the button.
f The [Power management] screen is displayed.
3) Press as to switch the item.
f The items will switch each time you press the button.
[Ready] The...")
ENGLISH - 67 7) Enter the New PIN code according to the steps in "Enter a PIN code". [Power management] This function optimizes lamp power according to the operating status to reduce power consumption. [Power management] Set the operation as following if there is no signal input. 1) Press as to select [Power management]. 2) Press the button. f The [Power management] screen is displayed. 3) Press as to switch the item. f The items will switch each time you press the button. [Ready] The...
Page 68

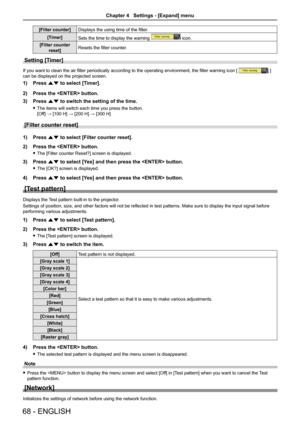

![Page 68
68 - ENGLISH
[Filter counter]Displays the using time of the filter.
[Timer] Sets the time to display the warning
icon.
[Filter counter reset] Resets the filter counter.
Setting [Timer]
If you want to clean the air filter periodically according to the operating environment, the filter warning icon [ ]
can be displayed on the projected screen.
1) Press as to select [Timer].
2) Press the button.
3) Press as to switch the setting of the time.
f The items will switch each time you press the...](http://img.usermanuals.tech/thumb/58/100406/w300_projector_manual_9157_d-67.png "Page 68
68 - ENGLISH
[Filter counter]Displays the using time of the filter.
[Timer] Sets the time to display the warning
icon.
[Filter counter reset] Resets the filter counter.
Setting [Timer]
If you want to clean the air filter periodically according to the operating environment, the filter warning icon [ ]
can be displayed on the projected screen.
1) Press as to select [Timer].
2) Press the button.
3) Press as to switch the setting of the time.
f The items will switch each time you press the...")
68 - ENGLISH [Filter counter]Displays the using time of the filter. [Timer] Sets the time to display the warning icon. [Filter counter reset] Resets the filter counter. Setting [Timer] If you want to clean the air filter periodically according to the operating environment, the filter warning icon [ ] can be displayed on the projected screen. 1) Press as to select [Timer]. 2) Press the button. 3) Press as to switch the setting of the time. f The items will switch each time you press the...
Page 69
![Page 69
ENGLISH - 69
[Network setting]
1) Press as to select [Network].
2) Press the button.
f The [Network] screen is displayed.
3) Press the button.
f The [Network setting] screen is displayed.
4) Press as to select an item, and change the setting according to the instructions\
.
[DHCP] [On]:
If a DHCP server exists in the network to which the projector is connected,
the IP address will automatically be acquired.
[Off]: If a DHCP server does not exist in the network to which the projector is...](http://img.usermanuals.tech/thumb/58/100406/w300_projector_manual_9157_d-68.png "Page 69
ENGLISH - 69
[Network setting]
1) Press as to select [Network].
2) Press the button.
f The [Network] screen is displayed.
3) Press the button.
f The [Network setting] screen is displayed.
4) Press as to select an item, and change the setting according to the instructions\
.
[DHCP] [On]:
If a DHCP server exists in the network to which the projector is connected,
the IP address will automatically be acquired.
[Off]: If a DHCP server does not exist in the network to which the projector is...")
ENGLISH - 69 [Network setting] 1) Press as to select [Network]. 2) Press the button. f The [Network] screen is displayed. 3) Press the button. f The [Network setting] screen is displayed. 4) Press as to select an item, and change the setting according to the instructions\ . [DHCP] [On]: If a DHCP server exists in the network to which the projector is connected, the IP address will automatically be acquired. [Off]: If a DHCP server does not exist in the network to which the projector is...
Page 70

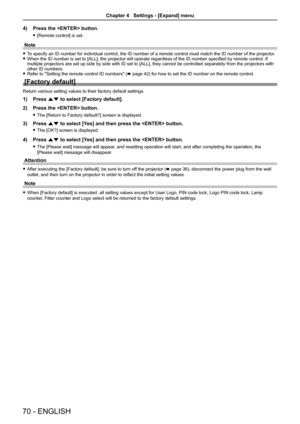

![Page 70
70 - ENGLISH
4) Press the button.
f [Remote control] is set.
Note
f To specify an ID number for individual control, the ID number of a remote\
control must match the ID number of the projector.
f When the ID number is set to [ALL], the projector will operate regardless of the ID number specified by remote control. If
multiple projectors are set up side by side with ID set to [ALL], they cannot be controlled separately from the projectors with
other ID numbers.
f Refer to "Setting the...](http://img.usermanuals.tech/thumb/58/100406/w300_projector_manual_9157_d-69.png "Page 70
70 - ENGLISH
4) Press the button.
f [Remote control] is set.
Note
f To specify an ID number for individual control, the ID number of a remote\
control must match the ID number of the projector.
f When the ID number is set to [ALL], the projector will operate regardless of the ID number specified by remote control. If
multiple projectors are set up side by side with ID set to [ALL], they cannot be controlled separately from the projectors with
other ID numbers.
f Refer to \"Setting the...")
70 - ENGLISH 4) Press the button. f [Remote control] is set. Note f To specify an ID number for individual control, the ID number of a remote\ control must match the ID number of the projector. f When the ID number is set to [ALL], the projector will operate regardless of the ID number specified by remote control. If multiple projectors are set up side by side with ID set to [ALL], they cannot be controlled separately from the projectors with other ID numbers. f Refer to "Setting the...
