Panasonic Projector PT-VX605N User Manual

Important Safety Notice
ENGLISH - 5
Im portan t
Inf ormation
Hrvatski
Read this first!
ENGLISH  -  11

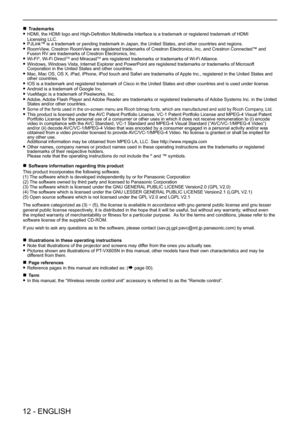

r Trademarks

f HDMI, the HDMI logo and High-Definition Multimedia Interface is a trademark or registered trademark of HDMI
Licensing LLC.

f PJLink™ is a trademark or pending trademark in Japan, the United States, and other countries and regions.

f RoomView, Crestron RoomView are registered trademarks of Crestron Electronics, Inc, and Crestron Connected™ and
Fusion RV are trademarks of Crestron Electronics, Inc.

f Wi-Fi
®, Wi-Fi DirectTM and MiracastTM are registered trademarks or trademarks...

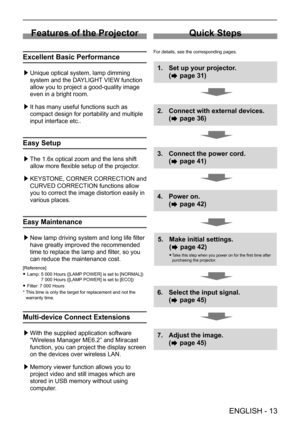

Features of the Projector
Excellent Basic Performance

▶ Unique optical system, lamp dimming
system and the DAYLIGHT VIEW function
allow you to project a good-quality image
even in a bright room.

▶ It has many useful functions such as
compact design for portability and multiple
input interface etc..
Easy Setup

▶ The 1.6x optical zoom and the lens shift
allow more flexible setup of the projector.

▶ KEYSTONE, CORNER CORRECTION and
CURVED CORRECTION functions allow
you to correct the image...

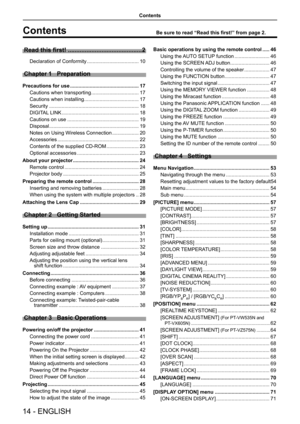

Contents
Contents
Read this first! ............................................2
Declaration of Conformity .....................................10
Chapter 1   Preparation
Precautions for use ................................................. 17
Cautions when transporting  ..................................17
Cautions when installing  ....................................... 17
Security ................................................................ 18

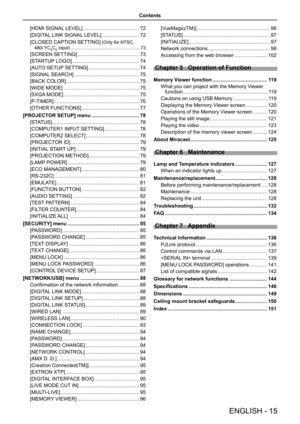

DIGITAL LINK...

[HDMI SIGNAL LEVEL] ........................................72
[DIGITAL LINK SIGNAL LEVEL]  ...........................72
[CLOSED CAPTION SETTING]
 (Only for NTSC,
480i YC
BCR input) ....................................................... 73
[SCREEN SETTING]  ........................................... 73
[STARTUP LOGO]  ................................................ 74
[AUTO SETUP SETTING]  ....................................74
[SIGNAL SEARCH] .............................................. 75
[BACK...

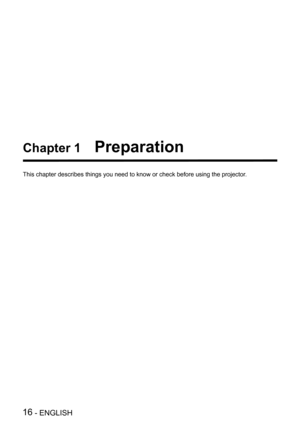

Chapter 1   Preparation
This chapter describes things you need to know or check before using the\
 projector.
16 - ENGLISH

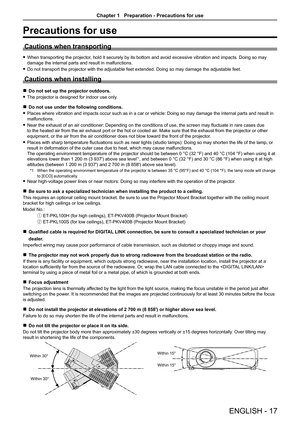

Precautions for use
Cautions when transporting

f When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts. Doing so may
damage the internal parts and result in malfunctions.

f Do not transport the projector with the adjustable feet extended. Doing so may damage the adjustable feet.
Cautions when installing

r Do not set up the projector outdoors.

f The projector is designed for indoor use only.

r Do not use under the following conditions.

f...

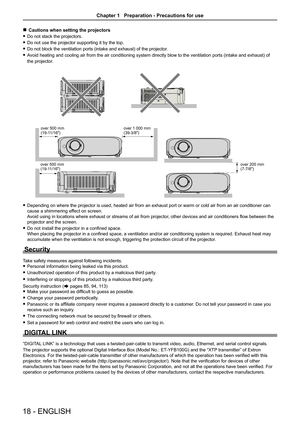

r Cautions when setting the projectors

f Do not stack the projectors.

f Do not use the projector supporting it by the top.

f Do not block the ventilation ports (intake and exhaust) of the projector .

f Avoid heating and cooling air from the air conditioning system directly blow to the ventilation ports (intake and exhaust) of
the projector.
over 500 mm
(19-11/16") over 1 000 mm
(39-3/8")
over 500 mm
(19-11/16") over 200 mm
(7-7/8")

f Depending on where the projector is...

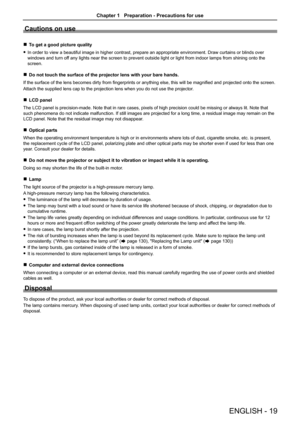

Cautions on use

r To get a good picture quality

f In order to view a beautiful image in higher contrast, prepare an approp\
riate environment. Draw curtains or blinds over
windows and turn off any lights near the screen to prevent outside light or light from indo\
or lamps from shining onto the
screen.

r Do not touch the surface of the projector lens with your bare hands.
If the surface of the lens becomes dirty from fingerprints or anything else, this will be magnified and projected onto the...

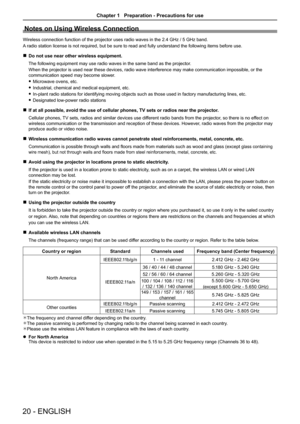

Notes on Using Wireless Connection
Wireless connection function of the projector uses radio waves in the 2.4 GHz / 5 GHz band.
A radio station license is not required, but be sure to read and fully un\
derstand the following items before use.

r Do not use near other wireless equipment.
The following equipment may use radio waves in the same band as the proj\
ector.
When the projector is used near these devices, radio wave interference may make communication impossible, or the
communication speed may...
