Page 1
The Professional Solution DLP™-Based SXGA+ Projector PT-D7700 U/ U-K PT-D7700U-K
Page 2
3-Chip DLP™-Based System in a Sleek, Compact Body The World’s Lightest 3-Chip Large-Venue DLP™-Based Projector The PT-D7700U series combines the latest 3-chip system based on DLP ™technology with a new optical system developed using our exclusive technology. We have dramatically reduced the cabinet size, creating a unit wit only one-fifth the size of conventional large- venue 3-chip DLP ™-based projectors. This feat of design and technology achieved the world’s lightest* 3-chip projector with DLP...
Page 3
Flexible System Applications Horizontal/Vertical Lens Shift The PT-D7700U series is equipped with a motor-driven lens shifting function that moves the lens left, right, up, and down. It gives you easy, accurate adjustment when installing the projector. Optical Lenses for Various Venues A wide range of optional lenses with different throw distances are available in addition to the supplied lens. Optional lenses with super-long focal lengths of 8.0 to 15.0 are ideal for use in churches or screening rooms....
Page 4
Options for More Flexible Installation Lenses 1.5-2.0:1 zoom lens ET-D75LE1 2.0-3.0:1 zoom lens ET-D75LE2 3.0-5.0:1 zoom lens ET-D75LE3 5.0-8.0:1 zoom lens ET-D75LE4 8.0-15.0:1 zoom lens ET-D75LE8 0.8:1 fixed-focus short-throw lens ET-D75LE5Ceiling mount bracket ET-PKD75 Low ceiling mount bracket ET-PKD75S Dual stacking mount bracket ET-DFD75 Replacement lamp unit ET-LAD7500 Replacement lamp units (Twin pack of ET-LAD7500 lamp units)ET-LAD7500W Replacement long-life lamp unit ET-LAD7700L Replacement...

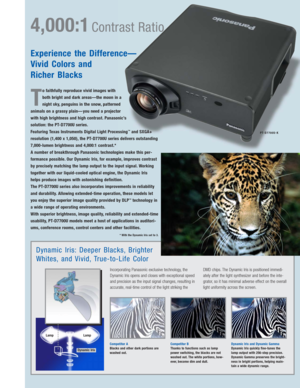

Page 5
Incorporating Panasonic exclusive technology, the Dynamic Iris opens and closes with exceptional speed and precision as the input signal changes, resulting in accurate, real-time control of the light striking theDMD chips. The Dynamic Iris is positioned immedi- ately after the light synthesizer and before the inte- grator, so it has minimal adverse effect on the overall light uniformity across the screen. Competitor A Blacks and other dark portions are washed out. Dynamic Iris: Deeper Blacks, Brighter...

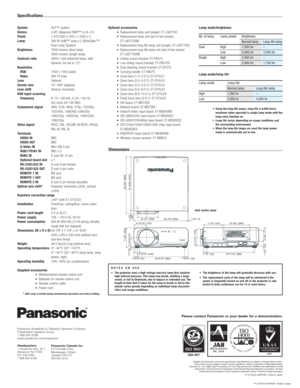

Page 6
Dimensions 8-1/4˝ Ø1-9/16˝ 1-5/16˝ 18-3/16˝ 1-5/16˝ 20-7/8˝ 4-15/16˝ 7-1/2˝ 10-3/8˝ 18-7/16˝ 1-1/4˝ 1/16˝ 22-3/8˝ 21-9/32˝ 1-1/8˝ 7-7/8˝ 6-11/16˝ 4-3/8˝ 1-3/4˝ 3-13/16˝ 1/4˝ (209) ( Ø40) (34) (462) (34) (530) (125) (191) (264) (468) (32) (2) (569) (540) (29) (200) (170) (111) (44) (97) (6) Unit: inches (mm) Specifications PT-D7700U2-04SEP30K Printed in Japan. PT-D7700U2-04SEP30K Printed in Japan. System Device Pixels Lamp Brightness Contrast ratio ResolutionRGB Video Lens Screen size Lens shift RGB...
