Panasonic Pt Dw5000 Projector Specifications

•High image quality
Native WXGA (1,280 x 768) panel
 Ultra bright 4,500 lumens
 High 1,600:1 contrast ratio*
1
 High uniformity of brightness and color
 Progressive cinema scan (3/2 pulldown)
 Dynamic sharpness control
• High reliability and easy maintenance
 Liquid cooling system
 Dustproof design with sealed optical block
Dual lamp system and lamp relay function
 Optional longlife lamp
 Easy replacement of dust filter and lamp
• Flexible system applications
 Lenscentered design
 Horizontal/vertical...

2
PTDW5000/DW5000LDLP™Based Projectors SPEC FIL E
Specifications
Main Unit
Power supply:  North America: 120 V AC, 50/60 Hz
Europe: 220 – 240 V AC, 50/60 Hz
Power consumption:  North America: 770 W (770 VA) (10 W during standby mode with fan stopped) Europe: 750 W (790 VA) (15 W during standby mode with fan stopped)
DMD™ device: Panel size: 0.65˝ diagonal (15:9 aspect ratio) Display method: DMD™ x 1, DLP™ system
Pixels: 983,040 (1,280 x 768) x 1, total of 983,040 pixels
Lens: PTDW5000: Powered...

3
PTDW5000/DW5000LDLP™Based Projectors SPEC FIL E
Power cord length: 3.0 m (9.9´)
Dimensions (W x H x D):  530 x 167 x 429 mm (207/8˝ x 69/16˝ x 167/8˝) (without le\
ns)
Weight: PTDW5000 14.5 kg (32.0 lbs) (with supplied lens)
PTDW5000L 13.7 kg (30.2 lbs) (without lens)
Operating temperature: 0°–45°C (32°–113°F)
Operating humidity: 20%–80% (no condensation)
Remote Control Unit
Power supply:  3 V DC (AAA battery x 2)
Operation range*:  Wireless:  Approx. 7 m when operated from directly in front of the...

4
PTDW5000/DW5000LDLP™Based Projectors SPEC FIL E
As of March 2006
TENTATIVE
Terminals
RGB IN connector pin assignment
1 Video input
2 SVideo input
3 RGB 1 input
4 RGB 2 Input
5 DVID input
6 LAN connector
7 Remote 1 input and output
8 Remote 2 input
9 Serial input
10 Serial output
n o. signal
6 GND
7 GND
8 GND
9NC
10 GND n
o. signal
11 GND
12 NC
13 HD/SYNC
14 VD
15 NC
n
o. signal
1 R/P
R
2 G/Y
3 B/P
B
4NC
5 GND
123 456
7 8910
DVID output connector pin assignment
no.signal
1 T, M, D, S data 2
2 T, M, D,...

5
PTDW5000/DW5000LDLP ™Based Projectors
S
PEC FIL E
As of March 2006
TENTATIVE

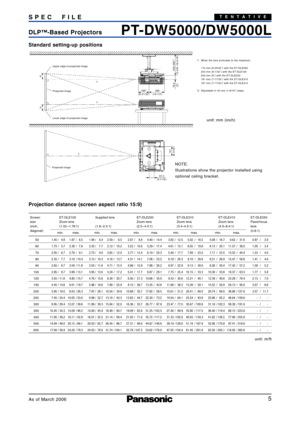

Standard settingup positions
Projection distance (screen aspect ratio 15:9)
unit: mm (inch)
*1 When the lens protrudes to the maximum.
172 mm (625/32˝) with the ETDLE050
204 mm (81/32˝) with the ETDLE100
203 mm (8˝) with the ETDLE200
191 mm (717/32˝) with the ETDLE310
191 mm (717/32˝) with the ETDLE410
*2 Adjustable in 40 mm (19/16˝) steps.
NOTE:
Illustrations show the projector installed using
optional celing bracket.
unit:...

6
PTDW5000/DW5000LDLP ™Based Projectors
S
PEC FIL E
As of March 2006
TENTATIVE

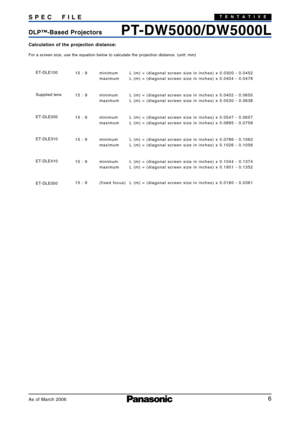

Calculation of the projection distance:
For a screen size, use the equation below to calculate the projection di\
stance. (unit: mm)
ETDLE100
Supplied lens
ETDLE200
ETDLE310
ETDLE410
ETDLE050 15 : 9
minimum L(m) = (diagonal screen size in inches) x 0.0300  0.0452
maximum L(m) = (diagonal screen size in inches) x 0.0404  0.0478
15 : 9 minimum L(m) = (diagonal screen size in inches) x 0.0402  0.0650
maximum L(m) = (diagonal...

7
PTDW5000/DW5000LDLP ™Based Projectors
S
PEC FIL E
As of March 2006
TENTATIVE

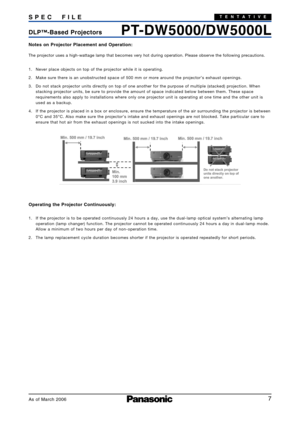

Notes on Projector Placement and Operation:
The projector uses a highwattage lamp that becomes very hot during oper\
ation. Please observe the following precautions.
1. Never place objects on top of the projector while it is operating.
2. Make sure there is an unobstructed space of 500 mm or more around the pr\
ojector’s exhaust openings.
3. Do not stack projector units directly on top of one another for the purp\
ose of...
