Panasonic Pt F200ntu Projector Specifications

Long-Lasting Brightness
PT- F200NTU
PT- F200U
LCD Projectors

With their outstanding flexibility,
PT-F200 series projectors make
ideal replacements for existing
ceiling-mounted systems. They
require little maintenance after
installation, so total cost of
ownership is low.
A Bright Choice for
New Installations and
Replacement Use
Auto Rolling Filter (ARF) and Anti-Dust Design
A Micro Cut Filter, a high-efficiency electrostatic
filter, with superior dust-collecting performance
combines with Panasonic’s original Auto Rolling
Filter and anti-dust design to minimize...

The projector can also be set on
a shelf at the back of the room,
greatly simplifying installation.
Thanks to the wireless LAN
function, you can set up a sys-
tem using multiple PCs quickly
and easily.The PT-F200NTU and PT-F200U are high-
performance LCD projectors designed for
use in fixed installations. Each model
combines Panasonic’s original Auto Rolling
Filter with an original lamp drive system
to deliver crisp, bright images over
extended periods of time and enable a
5,000-hour*
1lamp replacement...

Original Lamp Drive System for Optimal Lamp Performance
Lamps used in a projector require much higher precision than
ordinary household lamps. Panasonic employs a number of new
technologies—including an original lamp drive system—that help
maintain optimal lamp performance for longer-lasting brightness.
This has resulted in a 5,000-hour* lamp replacement cycle.
*The value given above does not imply a guaranteed amount of time.
The value may vary considerably depending on usage conditions.
Daylight View 4...

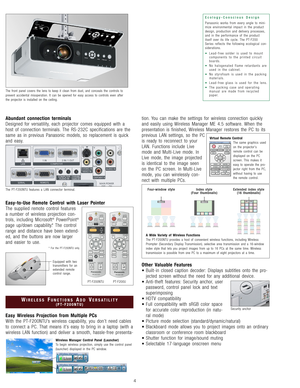

Abundant connection terminals
Designed for versatility, each projector comes equipped with a
host of connection terminals. The RS-232C specifications are the
same as in previous Panasonic models, so replacement is quick
and easy.
Easy-to-Use Remote Control with Laser Pointer
The supplied remote control features
a number of wireless projection con-
trols, including Microsoft
®PowerPoint®
page up/down capability.* The control
range and distance have been extend-
ed, and the buttons are now larger
and...

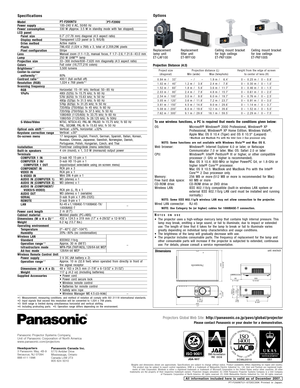

Model
Power supply
Power consumption
LCD panel
Panel size
Display method
Drive method
Pixels
Pixel configuration
Lens
Lamp
Projection size
Colors
Brightness*
1Center-to-corner
uniformity*1Contrast ratio*1Resolution (RGB)
Scanning frequency
RGB
YP
BPR
S-Video/Video
Optical axis shift*
3Keystone correction range
On-screen menu
Installation
Built-in speakers
Terminals
COMPUTER 1 IN
COMPUTER 2 IN/
COMPUTER 1 OUT
COMPONENT IN
VIDEO IN
S-VIDEO IN
AUDIO IN (COMPUTER 1)
AUDIO IN (COMPUTER 2)
AUDIO IN...
