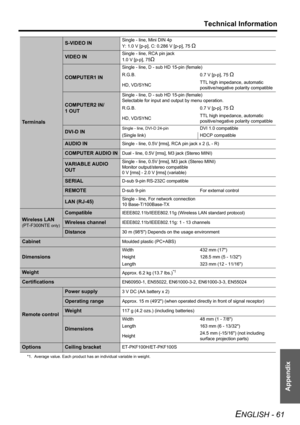

Page 61
![Page 61
Technical Information
ENGLISH - 61
Appendix
Terminals
S-VIDEO INSingle - line, Mini DIN 4p
Y: 1.0 V [p-p], C: 0.286 V [p-p], 75
Ω
VIDEO INSingle - line, RCA pin jack
1.0 V [p-p], 75
Ω
COMPUTER1 IN
Single - line, D - sub HD 15-pin (female)
R.G.B. 0.7 V [p-p], 75
Ω
HD, VD/SYNCTTL high impedance, automatic
positive/negative polarity compatible
COMPUTER2 IN/
1 OUT
Single - line, D - sub HD 15-pin (female)
Selectable for input and output by menu operation.
R.G.B.
0.7 V [p-p], 75
Ω
HD, VD/SYNCTTL high...](http://img.usermanuals.tech/thumb/58/94544/w300_panasonic-pt-f300e-manual_d-60.png "Page 61
Technical Information
ENGLISH - 61
Appendix
Terminals
S-VIDEO INSingle - line, Mini DIN 4p
Y: 1.0 V [p-p], C: 0.286 V [p-p], 75
Ω
VIDEO INSingle - line, RCA pin jack
1.0 V [p-p], 75
Ω
COMPUTER1 IN
Single - line, D - sub HD 15-pin (female)
R.G.B. 0.7 V [p-p], 75
Ω
HD, VD/SYNCTTL high impedance, automatic
positive/negative polarity compatible
COMPUTER2 IN/
1 OUT
Single - line, D - sub HD 15-pin (female)
Selectable for input and output by menu operation.
R.G.B.
0.7 V [p-p], 75
Ω
HD, VD/SYNCTTL high...")
Technical Information ENGLISH - 61 Appendix Terminals S-VIDEO INSingle - line, Mini DIN 4p Y: 1.0 V [p-p], C: 0.286 V [p-p], 75 Ω VIDEO INSingle - line, RCA pin jack 1.0 V [p-p], 75 Ω COMPUTER1 IN Single - line, D - sub HD 15-pin (female) R.G.B. 0.7 V [p-p], 75 Ω HD, VD/SYNCTTL high impedance, automatic positive/negative polarity compatible COMPUTER2 IN/ 1 OUT Single - line, D - sub HD 15-pin (female) Selectable for input and output by menu operation. R.G.B. 0.7 V [p-p], 75 Ω HD, VD/SYNCTTL high...
Page 62

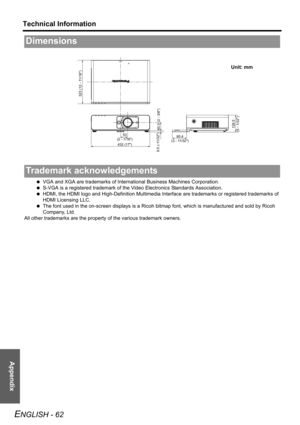

Appendix Technical Information ENGLISH - 62 VGA and XGA are trademarks of Internat ional Business Machines Corporation. S-VGA is a registered trademark of the Video Electronics Standards Association. HDMI, the HDMI logo and Hig h-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. The font used in the on-screen displays is a Ricoh bi tmap font, which is manufactured and sold by Ricoh Company, Ltd. All other trademarks are the property of the various...
Page 63

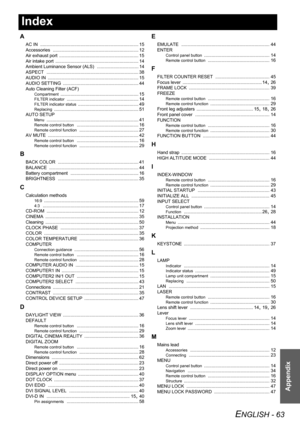

ENGLISH - 63 Appendix Index A AC IN .............................................................................. 15 Accessories .................................................................... 12 Air exhaust port ............................................................... 15 Air intake port .................................................................. 14 Ambient Luminance Sensor (ALS) ................................. 14 ASPECT...
Page 64

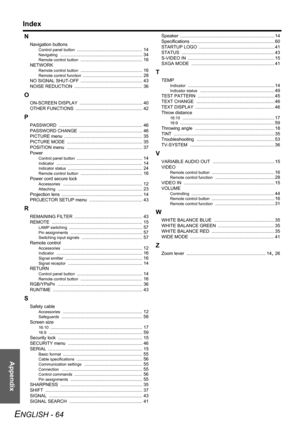

Appendix Index ENGLISH - 64 N Navigation buttons Control panel button .................................................... 14 Navigating ................................................................. 34Remote control button ................................................. 16 NETWORK Remote control button ................................................. 16 Remote control function ............................................... 28 NO SIGNAL SHUT-OFF ....................................................
