Getting Started
Connections

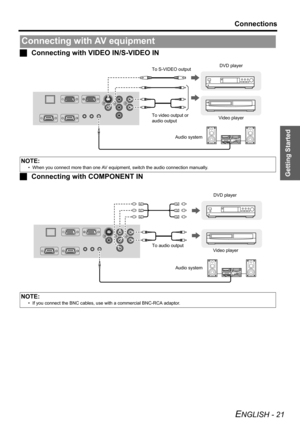

ENGLISH - 21
JConnecting with VIDEO IN/S-VIDEO IN
JConnecting with COMPONENT IN
Connecting with AV equipment
NOTE:
• When you connect more than one AV equipment, switch the audio connection manually.
NOTE:
• If you connect the BNC cables, use with a commercial BNC-RCA adaptor.
DVD player
Audio system To S-VIDEO output
Video player To video output or
audio output
DVD player
Video player
Audio system To audio output

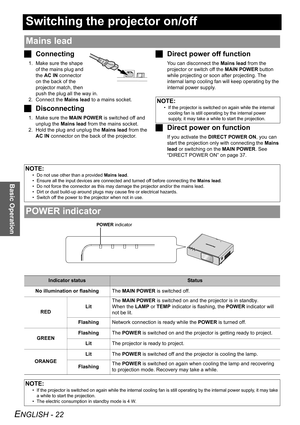

ENGLISH - 22
Basic Operation
Switching the projector on/off
JConnecting
1. Make sure the shape
of the mains plug and
the AC IN connector
on the back of the
projector match, then
push the plug all the way in.
2. Connect the Mains lead to a mains socket.
JDisconnecting
1. Make sure the MAIN POWER is switched off and
unplug the Mains lead from the mains socket.
2. Hold the plug and unplug the Mains lead from the
AC IN connector on the back of the projector.
JDirect power off function
You can...

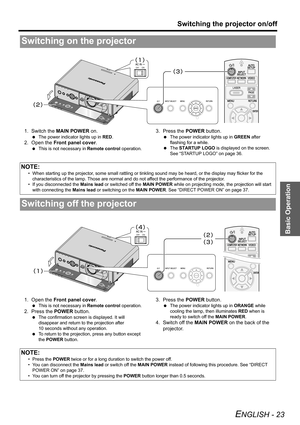

Basic Operation
Switching the projector on/off
ENGLISH - 23
1. Switch the MAIN POWER on.
 The power indicator lights up in RED.
2. Open the Front panel cover.
 This is not necessary in Remote control operation.
3. Press the POWER button.
 The power indicator lights up in GREEN after
flashing for a while.
 The STARTUP LOGO is displayed on the screen.
See “STARTUP LOGO” on page 36.
1. Open the Front panel cover.
 This is not necessary in Remote control operation.
2. Press the POWER button.
 The...

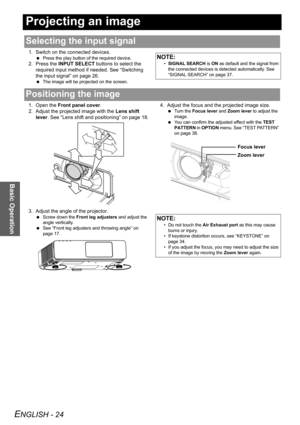

ENGLISH - 24
Basic Operation
Projecting an image
1. Switch on the connected devices.
 Press the play button of the required device.
2. Press the INPUT SELECT buttons to select the
required input method if needed. See “Switching
the input signal” on page 26.
 The image will be projected on the screen.
1. Open the Front panel cover.
2. Adjust the projected image with the Lens shift
lever. See “Lens shift and positioning” on page 18.
3. Adjust the angle of the projector.
 Screw down the Front leg...

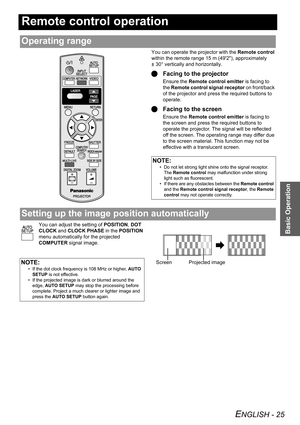

ENGLISH - 25
Basic Operation
Remote control operation
You can operate the projector with the Remote control
within the remote range 15 m (492), approximately
± 30° vertically and horizontally.
QFacing to the projector
Ensure the Remote control emitter is facing to
the Remote control signal receptor on front/back
of the projector and press the required buttons to
operate.
QFacing to the screen
Ensure the Remote control emitter is facing to
the screen and press the required buttons to
operate the...

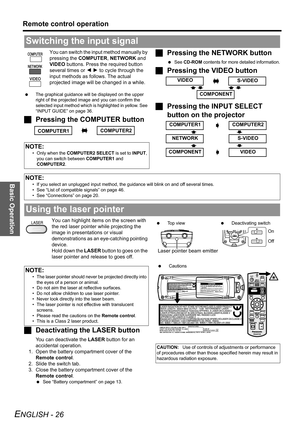

Basic Operation
Remote control operation
ENGLISH - 26
You can switch the input method manually by
pressing the COMPUTER, NETWORK and
VIDEO buttons. Press the required button
several times or I H to cycle through the
input methods as follows. The actual
projected image will be changed in a while.
 The graphical guidance will be displayed on the upper
right of the projected image and you can confirm the
selected input method which is highlighted in yellow. See
“INPUT GUIDE” on page 36.
JPressing...

Basic Operation
Remote control operation

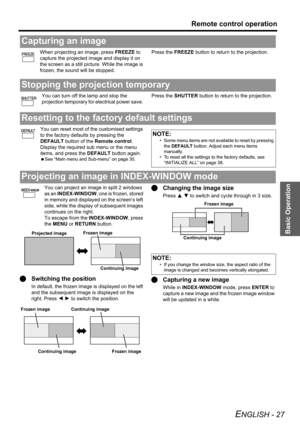

ENGLISH - 27
When projecting an image, press FREEZE to
capture the projected image and display it on
the screen as a still picture. While the image is
frozen, the sound will be stopped.Press the FREEZE button to return to the projection.
You can turn off the lamp and stop the
projection temporary for electrical power save. Press the SHUTTER button to return to the projection.
You can reset most of the customised settings
to the factory defaults by pressing...

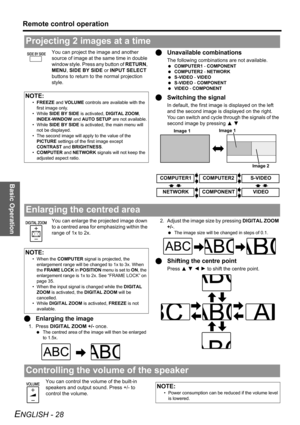

Basic Operation
Remote control operation
ENGLISH - 28
You can project the image and another
source of image at the same time in double
window style. Press any button of RETURN,
MENU, SIDE BY SIDE or INPUT SELECT
buttons to return to the normal projection
style.QUnavailable combinations
The following combinations are not available.
 COMPUTER1 - COMPONENT
 COMPUTER2 - NETWORK
 S-VIDEO - VIDEO
 S-VIDEO - COMPONENT
 VIDEO - COMPONENT
QSwitching the signal
In default, the first image is displayed on the...

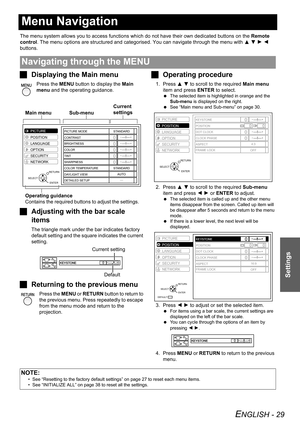

ENGLISH - 29
Settings
Menu Navigation
The menu system allows you to access functions which do not have their own dedicated buttons on the Remote
control. The menu options are structured and categorised. You can navigate through the menu with F G H I
buttons.
JDisplaying the Main menu
Press the MENU button to display the Main
menu and the operating guidance.
JAdjusting with the bar scale
items
The triangle mark under the bar indicates factory
default setting and the square indicates the current...

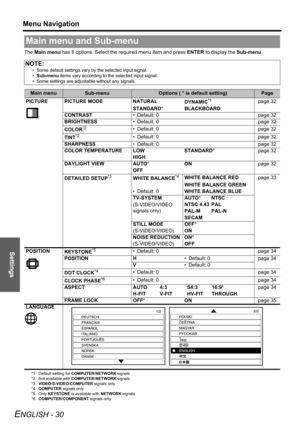

Settings
Menu Navigation
ENGLISH - 30
The Main menu has 6 options. Select the required menu item and press ENTER to display the Sub-menu.
Main menu and Sub-menu
NOTE:
• Some default settings vary by the selected input signal.
•Sub-menu items vary according to the selected input signal.
• Some settings are adjustable without any signals.
Main menuSub-menuOptions ( * is default setting)Page
PICTURE PICTURE MODE NATURAL
DYNAMIC
*1
*1. Default setting for COMPUTER/NETWORK signalspage 32
STANDARD*BLACKBOARD...
