Basic Operation
Remote control operation
ENGLISH - 31
You can highlight items on the screen with
the red laser pointer while projecting the
image in presentations or visual
demonstrations as an eye-catching pointing
device.
Hold down the  LASER button to go on the
laser pointer and release to go off.
J Disable the LASER button
You can disable the  LASER button for an
accidental operation.
1. Open the battery compartment cover of the remote  control.
2. Slide the switch tab.
3. Close the battery...

ENGLISH - 32
Settings

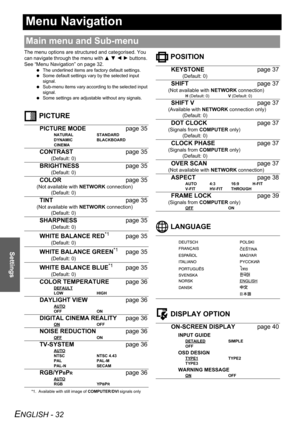

Menu Navigation
The menu options are structured and categorised. You
can navigate through the menu with F G  I  H  buttons.
See “Menu Navigation” on page 32.
  The underlined items are factory default settings.
  Some default settings vary by the selected input
signal.
  Sub-menu items vary accordin g to the selected input
signal.
  Some settings are adjustable without any signals.
 PICTURE  POSITION
 LANGUAGE
 DISPLAY OPTION
Main menu and Sub-menu
PICTURE MODE
page 35
NATURAL...

Menu Navigation
ENGLISH - 33
Settings

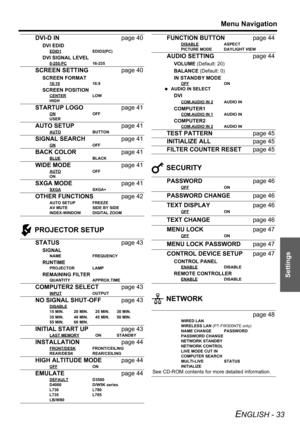

 PROJECTOR SETUP SECURITY
 NETWORK
DVI-D IN
page 40
DVI EDID
EDID1EDID2(PC)
DVI SIGNAL LEVEL
0-255:PC16-235
SCREEN SETTINGpage 40
SCREEN FORMAT
16:1016:9
SCREEN POSITION
CENTERLOW
HIGH
STARTUP LOGO page 41
ONOFF
USER
AUTO SETUP page 41
AUTOBUTTON
SIGNAL SEARCHpage 41
ONOFF
BACK COLORpage 41
BLUEBLACK
WIDE MODEpage 41
AUTOOFF
ON
SXGA MODE page 41
SXGASXGA+
OTHER FUNCTIONSpage 42
AUTO SETUP FREEZE
AV MUTE SIDE BY SIDE
INDEX-WINDOW DIGITAL ZOOM
STATUSpage 43
SIGNAL...

Settings
Menu Navigation
ENGLISH - 34

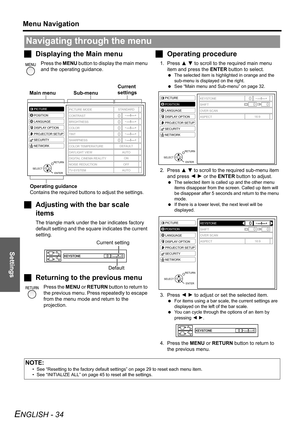

JDisplaying the Main menu
Press the  MENU button to display the main menu
and the operating guidance.
J Adjusting with the bar scale
items
The triangle mark under the bar indicates factory
default setting and the square indicates the current
setting.
JReturning to the previous menu
Press the  MENU or RETURN  button to return to
the previous menu. Press repeatedly to escape
from the menu mode and return to the
projection.
J Operating procedure
1. Press  F G...

ENGLISH - 35
Settings
PICTURE menu

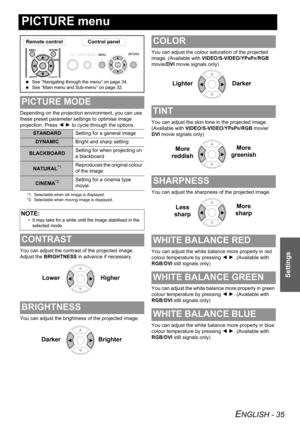

Depending on the projection environment, you can use
these preset parameter settings to optimise image
projection. Press I H  to cycle through the options.
You can adjust the contrast  of the projected image.
Adjust the  BRIGHTNESS  in advance if necessary.
You can adjust the brightness of the projected image. You can adjust the colour saturation of the projected
image. (Available with
VIDEO/S-VIDEO /YP
BPR/RGB
movie/ DVI movie signals only)
You can adjust the...

Settings
PICTURE menu
ENGLISH - 36

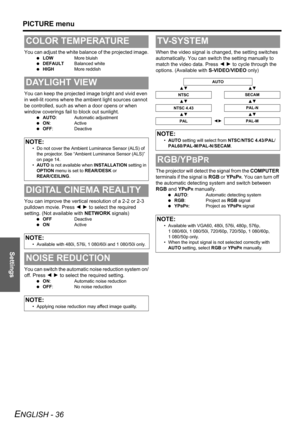

You can adjust the white balance of the projected image.
 LOW More bluish
  DEFAULT Balanced white
  HIGH More reddish
You can keep the projected image bright and vivid even
in well-lit rooms where the am bient light sources cannot
be controlled, such as when a door opens or when
window coverings fail to block out sunlight.
  AUTO : Automatic adjustment
  ON: Active
  OFF : Deactive
You can improve the vertical resolution of a 2-2 or 2-3
pulldown movie. Press  I H...

ENGLISH - 37
Settings
POSITION menu

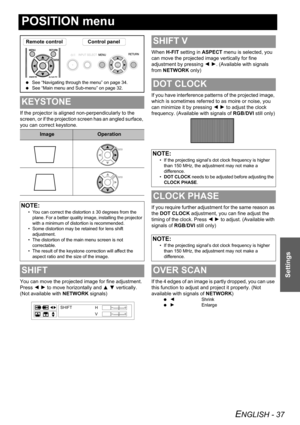

If the projector is aligned non-perpendicularly to the
screen, or if the projection screen has an angled surface,
you can correct keystone.
You can move the projected image for fine adjustment.
Press I H  to move horizontally and  F G  vertically.
(Not available with  NETWORK signals) When
H-FIT setting in  ASPECT menu is selected, you
can move the projected image vertically for fine
adjustment by pressing  I H . (Available with signals
from  NETWORK  only)
If...

Settings
POSITION menu
ENGLISH - 38

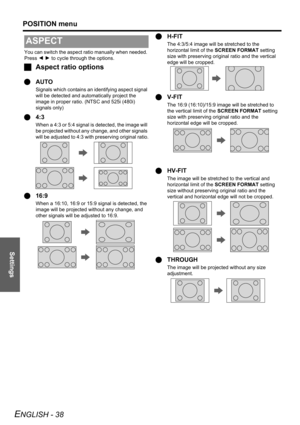

You can switch the aspect ratio manually when needed.
Press I H  to cycle through the options.
J Aspect ratio options
Q AUTO
Signals which contains an identifying aspect signal
will be detected and autom atically project the
image in proper ratio. (NTSC and 525i (480i)
signals only)
Q 4:3
When a 4:3 or 5:4 signal is  detected, the image will
be projected without any  change, and other signals
will be adjusted to 4:3 with pr eserving original ratio.
Q16:9
When a...

POSITION menu
ENGLISH - 39
Settings

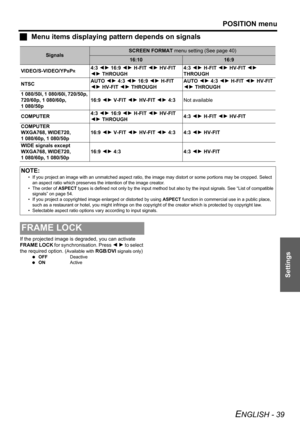

JMenu items displaying p attern depends on signals
If the projected image is degraded, you can activate
FRAME LOCK  for synchronisation. Press  I H  to select
the required option. (
Available with RGB/DVI signals only)
  OFF Deactive
  ON Active
SignalsSCREEN FORMAT  menu setting (See page 40)
16:1016:9
VIDEO/S-VIDEO/YP
BPR4:3  IH  16:9  IH  H-FIT  IH  HV-FIT
IH  THROUGH 4:3
 IH  H-FIT  IH  HV-FIT  IH
THROUGH
NTSC AUTO
 IH  4:3  IH  16:9  IH  H-FIT
IH  HV-FIT...

ENGLISH - 40
Settings

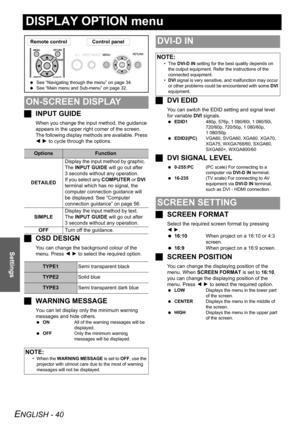

DISPLAY OPTION menu
JINPUT GUIDE
When you change the input method, the guidance
appears in the upper right corner of the screen.
The following display methods  are available. Press
I  H  to cycle through the options.
J OSD DESIGN
You can change the background colour of the
menu. Press  I H  to select the required option.
J WARNING MESSAGE
You can let display only the minimum warning
messages and hide others.
 ON All of the warning messages will be
displayed.
  OFF Only the...
