Panasonic Pt Lb51nte Projector Operating Instructions

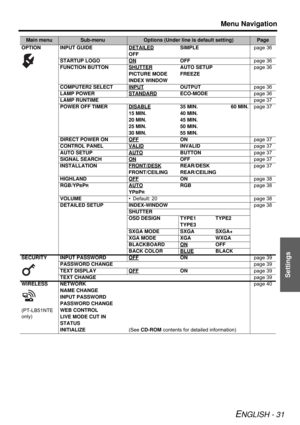

Menu Navigation
ENGLISH - 31
Settings
Main menuSub-menuOptions (Under line is default setting)Page
OPTION INPUT GUIDE DETAILED
SIMPLEpage 36
OFF
STARTUP LOGO ON
OFFpage 36
FUNCTION BUTTON SHUTTER
AUTO SETUPpage 36
PICTURE MODE FREEZE
INDEX WINDOW
COMPUTER2 SELECT INPUT
OUTPUTpage 36
LAMP POWER STANDARD
ECO-MODEpage 36
LAMP RUNTIMEpage 37
POWER OFF TIMER DISABLE
35 MIN.                        60 MIN.page 37
15 MIN. 40 MIN.
20 MIN. 45 MIN.
25 MIN. 50 MIN.
30 MIN. 55 MIN.
DIRECT POWER ON OFF
ONpage 37...

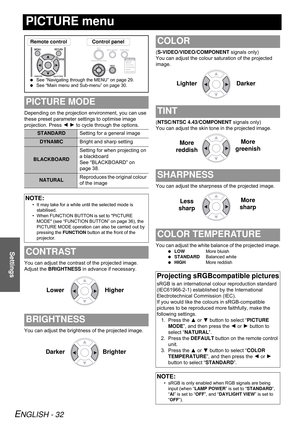

ENGLISH - 32
Settings
PICTURE menu
Depending on the projection environment, you can use
these preset parameter settings to optimise image
projection. Press I H to cycle through the options.
You can adjust the contrast of the projected image.
Adjust the BRIGHTNESS in advance if necessary.
You can adjust the brightness of the projected image.(S-VIDEO/VIDEO/COMPONENT signals only)
You can adjust the colour saturation of the projected
image.
(NTSC/NTSC 4.43/COMPONENT signals only)
You can adjust the skin...

PICTURE menu

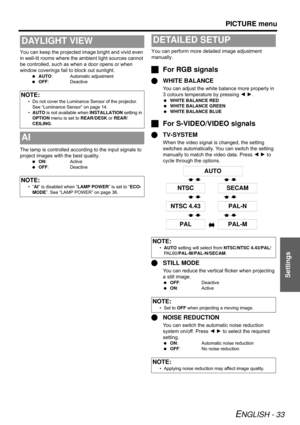

ENGLISH - 33
Settings
You can keep the projected image bright and vivid even
in well-lit rooms where the ambient light sources cannot
be controlled, such as when a door opens or when
window coverings fail to block out sunlight.
 AUTO: Automatic adjustment
 OFF:Deactive
The lamp is controlled according to the input signals to
project images with the best quality.
 ON: Active
 OFF:Deactive
You can perform more detailed image adjustment
manually.
JFor RGB signals
QWHITE BALANCE
You can...

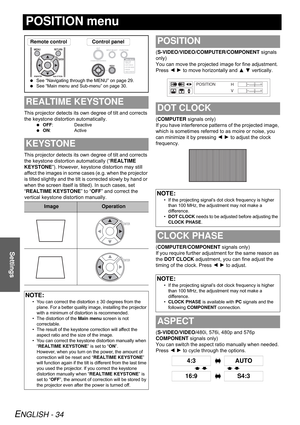

ENGLISH - 34
Settings
POSITION menu
This projector detects its own degree of tilt and corrects
the keystone distortion automatically.
 OFF: Deactive
 ON: Active
This projector detects its own degree of tilt and corrects
the keystone distortion automatically (“REALTIME
KEYSTONE”). However, keystone distortion may still
affect the images in some cases (e.g. when the projector
is tilted slightly and the tilt is corrected slowly by hand or
when the screen itself is tilted). In such cases, set...

LANGUAGE menu

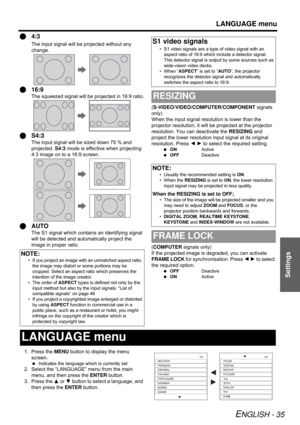

ENGLISH - 35
Settings
Q4:3
The input signal will be projected without any
change.
Q16:9
The squeezed signal will be projected in 16:9 ratio.
QS4:3
The input signal will be sized down 75 % and
projected. S4:3 mode is effective when projecting
4:3 image on to a 16:9 screen.
QAUTO
The S1 signal which contains an identifying signal
will be detected and automatically project the
image in proper ratio.(S-VIDEO/VIDEO/COMPUTER/COMPONENT signals
only)
When the input signal resolution is lower...

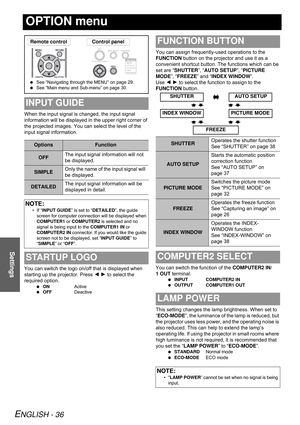

ENGLISH - 36
Settings
OPTION menu
When the input signal is changed, the input signal
information will be displayed in the upper right corner of
the projected images. You can select the level of the
input signal information.
You can switch the logo on/off that is displayed when
starting up the projector. Press I H to select the
required option.
 ONActive
 OFFDeactive
You can assign frequently-used operations to the
FUNCTION button on the projector and use it as a
convenient shortcut button. The...

OPTION menu

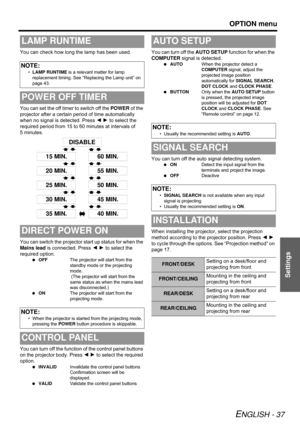

ENGLISH - 37
Settings
You can check how long the lamp has been used.
You can set the off timer to switch off the POWER of the
projector after a certain period of time automatically
when no signal is detected. Press I H to select the
required period from 15 to 60 minutes at intervals of
5 minutes.
You can switch the projector start up status for when the
Mains lead is connected. Press I H to select the
required option.
 OFFThe projector will start from the
standby mode or the projecting...

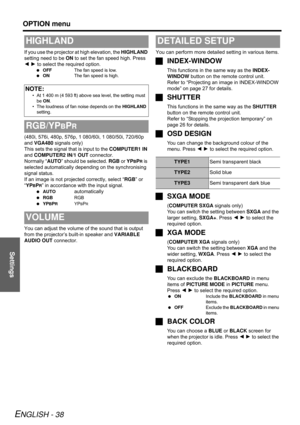

Settings
OPTION menu
ENGLISH - 38
If you use the projector at high elevation, the HIGHLAND
setting need to be ON to set the fan speed high. Press
I H to select the required option.
 OFFThe fan speed is low.
 ONThe fan speed is high.
(480i, 576i, 480p, 576p, 1 080/60i, 1 080/50i, 720/60p
and VGA480 signals only)
This sets the signal that is input to the COMPUTER1 IN
and COMPUTER2 IN/1 OUT connector.
Normally “AUTO” should be selected. RGB or YP
BPR is
selected automatically depending on the...

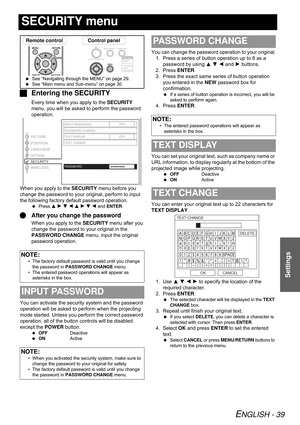

ENGLISH - 39
Settings
SECURITY menu
JEntering the SECURITY
Every time when you apply to the SECURITY
menu, you will be asked to perform the password
operation.
When you apply to the SECURITY menu before you
change the password to your original, perform to input
the following factory default password operation.
 Press F H G I F H G I and ENTER.
QAfter you change the password
When you apply to the SECURITY menu after you
change the password to your original in the
PASSWORD CHANGE menu, input the...

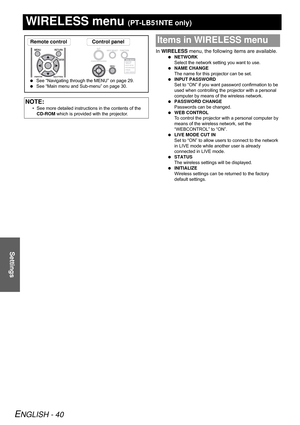

ENGLISH - 40
Settings
WIRELESS menu (PT-LB51NTE only)
In WIRELESS menu, the following items are available.
 NETWORK
Select the network setting you want to use.
 NAME CHANGE
The name for this projector can be set.
 INPUT PASSWORD
Set to “ON” if you want password confirmation to be
used when controlling the projector with a personal
computer by means of the wireless network.
 PASSWORD CHANGE
Passwords can be changed.
 WEB CONTROL
To control the projector with a personal computer by
means of the wireless...
