Panasonic Pt Vw430u Projector Specifications

PT-VW330 Series
PT-VW430
Series
PT-VW330U
PT-VX400NTU
PT-VX400U
PT-VW435NU
PT-VW430U
PT-VX505NU
PT-VX500U
LCD Projectors
Advanced Portable Projectors
with High Brightness, Wireless Functions,*
and Abundant Features.
* Wireless function: PT-VW435NU/VX505NU/VX400NTU only.

NEWNEW
3,000 lm
4,300 lm
2,000:1
3,500:1
4,000 lm
4,300 lm
4,000 lm
5,000 lm5,000 lm
2,000:1
3,500:1
2,000:1
4,000:14,000:1
Side-by-Side/P-in-P
Wireless Function
Wireless Function
Wireless Function
WXGA
WXGA
1.6x Zoom
1.6x Zoom
XGA
WXGA
XGA
XGAXGA
1.6x Zoom
1.6x Zoom
1.6x Zoom
1.6x Zoom1.6x Zoom
1
Presenting the PT-VW430 Series with its brighter,
crisper projection, and the PT-VW330 Series with its
versatile eco functions. Wireless-ready models are also
available in both series.
This wide-ranging...

2
Input signal levelLamp outputDark
Bright Normal mode
Eco mode
A Highly Bright Portable with 5,000 lm/4,300 lm*1
The PT-VX505NU/VX500U and PT-VW435NU/VW430U rank high in the portable
projector category with their high brightness of 5,000 lm and 4,300 lm,
respectively. All models also incorporate a variable iris that produces a high
contrast of 4,000:1/3,500:1.*
1 This all combines to provide brighter, sharper
projection for versatile situations.
4,000 lm/3,000 lm*2 of Brightness in a
Compact Body
A...

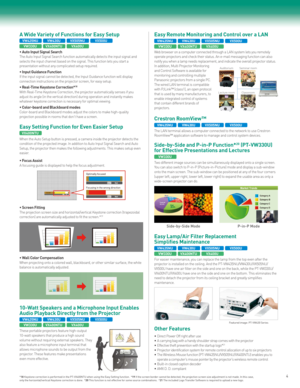

Convenient Functions for Portable and Ceiling-Mounted Applications
9 Multifunctional Application Software
The Wireless Manager ME 6.0/5.5*9 application provided with the projector allows
easy transfer*10 of data from the screen of a personal computer*11 through a PC’s
wireless LAN function.*12 It can be used to transfer audio files.*13 Screen images
from multiple computers can also be projected, and Multi-Live mode allows the
simultaneous projection of up to 16 computers. The newest Wireless Manager...

Easy Setting Function for Even Easier Setup
When the Auto Setup button is pressed, a camera inside the projector detects the
condition of the projected image. In addition to Auto Input Signal Search and Auto
Setup, the projector then makes the following adjustments. This makes setup even
easier.
A Wide Variety of Functions for Easy Setup
The Auto Input Signal Search function automatic ally detects the input signal and
selects the input channel based on the signal. This function lets you start a...

14-29/32 (379)12 (305)4-7/32 (107)
5

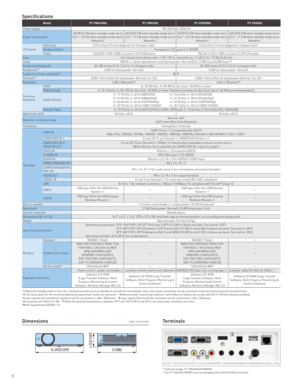

ModelPT-VW435NU PT-VW430UPT-VX505NU PT-VX500U
Power supply 100-240 V AC, 50/60 Hz
Power consumption 365 W (0.3 W when standby mode set to
Eco*
1, 12.9 W when standby mode set to  Network.) 365 W (0.3 W when standby mode set to
Eco*1, 11.5 W when standby mode set to  Network.) 365 W (0.3 W when standby mode set to
Eco*1, 12.9 W when standby mode set to  Network.) 365 W (0.3 W when standby mode set to
Eco*1, 11.5 W when standby mode set to  Network.)
LCD panel Panel...

13-3/4 (350)10-7/8 (277)3-7/8 (97)

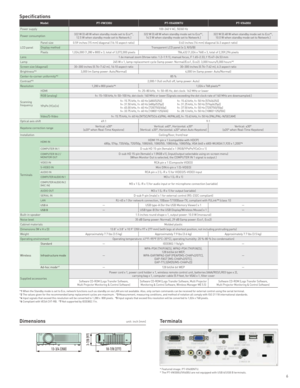

Model PT-VW330U PT-VX400NTU PT-VX400U
Power supply 100-240 V AC, 50/60 Hz
Power consumption 322 W (0.48 W when standby mode set to Eco*¹,
12.5 W when standby mode set to Network.) 322 W (0.48 W when standby mode set to Eco*¹,
14.5 W when standby mode set to Network.) 322 W (0.48 W when standby mode set to Eco*¹,
10.0 W when standby mode set to Network.)
LCD panel Panel size
0.59 inches (15 mm) diagonal (16:10 aspect ratio) 0.63 inches (16 mm) diagonal (4:3 aspect...

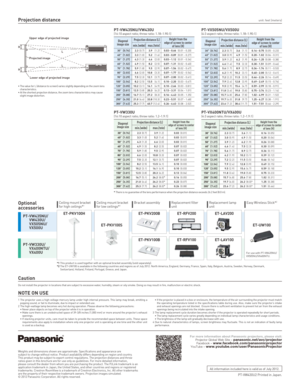

Lower edge of projected image
Upper edge of projected image
L
Projected image
L
H
H
Weights and dimensions shown are approximate. Specifications and appearance are
subject to change without notice. Product availability differs depending on region and country.
This product may be subject to export control regulations. The projection distances and throw
ratios given in this brochure are for use only as guidelines. For more detailed information,
please consult the dealer from whom you are purchasing the...
