Panasonic Pv Gs120 Operating Instructions Manual

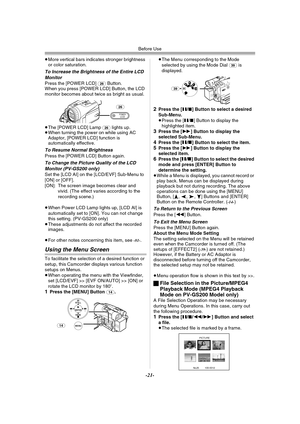

Before Use
-21-
≥More vertical bars indicates stronger brightness
or color saturation.
To Increase the Brightness of the Entire LCD
Monitor
Press the [POWER LCD] (26) Button.
When you press [POWER LCD] Button, the LCD
monitor becomes about twice as bright as usual.
≥The [POWER LCD] Lamp
(26) lights up.
≥When turning the power on while using AC
Adaptor, [POWER LCD] function is
automatically effective.
To Resume Normal Brightness
Press the [POWER LCD] Button again.
To Change the Picture Quality of...

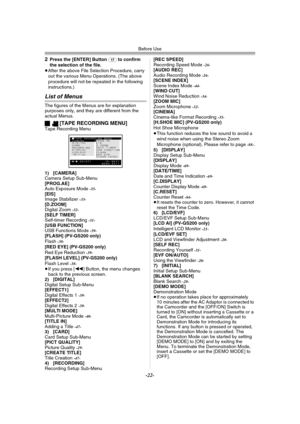

Before Use
-22-
2Press the [ENTER] Button (17) to confirm
the selection of the file.
≥After the above File Selection Procedure, carry
out the various Menu Operations. (The above
procedure will not be repeated in the following
instructions.)
List of Menus
The figures of the Menus are for explanation
purposes only, and they are different from the
actual Menus.
ª[TAPE RECORDING MENU]Tape Recording Menu
1) [CAMERA]
Camera Setup Sub-Menu
[PROG.AE]
Auto Exposure Mode
-35-[EIS]
Image Stabilizer...

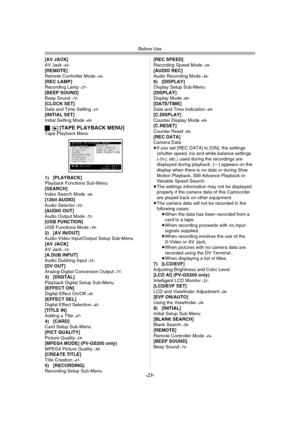

Before Use
-23-
[AV JACK]
AV Jack -82-[REMOTE]
Remote Controller Mode -16-[REC LAMP]
Recording Lamp -27-[BEEP SOUND]
Beep Sound -71-[CLOCK SET]
Date and Time Setting -25-[INITIAL SET]
Initial Setting Mode -69-
ª[TAPE PLAYBACK MENU]Tape Playback Menu
1) [PLAYBACK]
Playback Functions Sub-Menu
[SEARCH]
Index Search Mode
-44-[12bit AUDIO]
Audio Selector -52-[AUDIO OUT]
Audio Output Mode -75-[USB FUNCTION]
USB Functions Mode -59-2) [AV IN/OUT]
Audio-Video Input/Output Setup Sub-Menu
[AV JACK]
AV Jack...

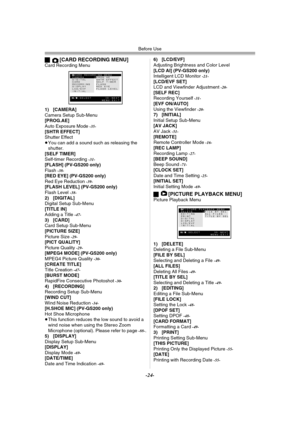

Before Use
-24-
ª[CARD RECORDING MENU]Card Recording Menu
1) [CAMERA]
Camera Setup Sub-Menu
[PROG.AE]
Auto Exposure Mode
-35-[SHTR EFFECT]
Shutter Effect
≥You can add a sound such as releasing the
shutter.
[SELF TIMER]
Self-timer Recording
-31-[FLASH] (PV-GS200 only)
Flash -38-[RED EYE] (PV-GS200 only)
Red Eye Reduction -39-[FLASH LEVEL] (PV-GS200 only)
Flash Level -38-2) [DIGITAL]
Digital Setup Sub-Menu
[TITLE IN]
Adding a Title
-47-3) [CARD]
Card Setup Sub-Menu
[PICTURE SIZE]
Picture Size...

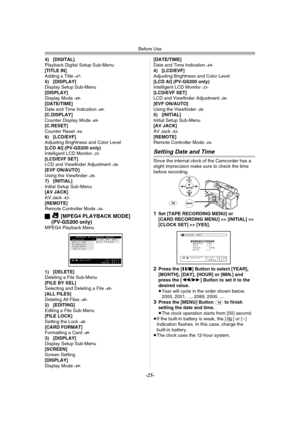

Before Use
-25-
4) [DIGITAL]
Playback Digital Setup Sub-Menu
[TITLE IN]
Adding a Title
-47-5) [DISPLAY]
Display Setup Sub-Menu
[DISPLAY]
Display Mode
-69-[DATE/TIME]
Date and Time Indication -69-[C.DISPLAY]
Counter Display Mode -69-[C.RESET]
Counter Reset -84-6) [LCD/EVF]
Adjusting Brightness and Color Level
[LCD AI] (PV-GS200 only)
Intelligent LCD Monitor
-21-[LCD/EVF SET]
LCD and Viewfinder Adjustment -20-[EVF ON/AUTO]
Using the Viewfinder -20-7) [INITIAL]
Initial Setup Sub-Menu
[AV JACK]
AV Jack...

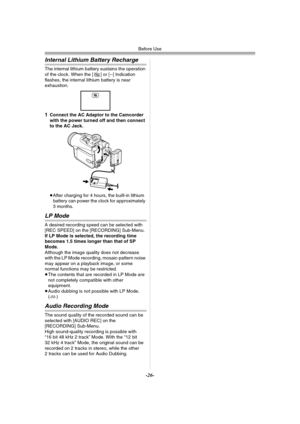

Before Use
-26-
Internal Lithium Battery Recharge
The internal lithium battery sustains the operation
of the clock. When the [0] or [--] Indication
flashes, the internal lithium battery is near
exhaustion.
1Connect the AC Adaptor to the Camcorder
with the power turned off and then connect
to the AC Jack.
≥After charging for 4 hours, the built-in lithium
battery can power the clock for approximately
3 months.
LP Mode
A desired recording speed can be selected with
[REC SPEED] on the [RECORDING]...

Recording Mode
-27-
Recording Mode
About Recording
When recording pictures on a tape, set the Mode
Dial to Tape Recording Mode [ ].
When recording still pictures or moving pictures
on a card, set the Mode Dial to Card Recording
Mode [ ]. (moving pictures on PV-GS200
Model only)
When recording with the
[AUTO/MANUAL/FOCUS] Switch
(35) set to
[AUTO], the Camcorder automatically adjusts the
focus and white balance. In some cases, they
cannot be adjusted automatically and need to be
adjusted...

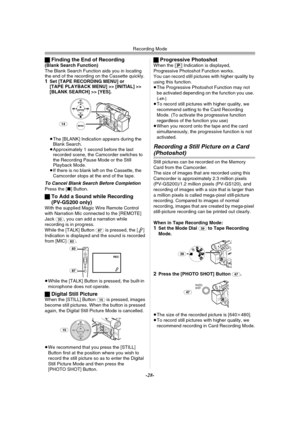

Recording Mode
-28-
ªFinding the End of Recording(Blank Search Function)
The Blank Search Function aids you in locating
the end of the recording on the Cassette quickly.
1Set [TAPE RECORDING MENU] or
[TAPE PLAYBACK MENU] >> [INITIAL] >>
[BLANK SEARCH] >> [YES].
≥The [BLANK] Indication appears during the
Blank Search.
≥Approximately 1 second before the last
recorded scene, the Camcorder switches to
the Recording Pause Mode or the Still
Playback Mode.
≥If there is no blank left on the Cassette, the...

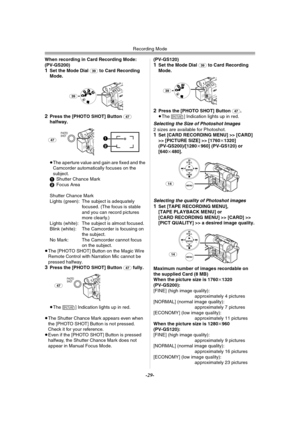

Recording Mode
-29-
When recording in Card Recording Mode:
(PV-GS200)
1Set the Mode Dial (39) to Card Recording
Mode.
2Press the [PHOTO SHOT] Button (47)
halfway.
≥The aperture value and gain are fixed and the
Camcorder automatically focuses on the
subject.
1Shutter Chance Mark
2Focus Area
Shutter Chance Mark
Lights (green): The subject is adequately
focused. (The focus is stable
and you can record pictures
more clearly.)
Lights (white): The subject is almost focused.
Blink (white): The Camcorder...

Recording Mode
-30-
When the picture size is 640k480:
[FINE] (high image quality):
approximately 45 pictures
[NORMAL] (normal image quality):
approximately 95 pictures
[ECONOMY] (low image quality):
approximately 190 pictures
≥These figures vary depending on the subject
being photographed.
ªRapidFire Consecutive PhotoshotThe still pictures can be recorded on a Card at
regular intervals.
≥Available only with [640k480] picture size.
1Set [CARD RECORDING MENU] >> [CARD]
>> [BURST MODE] >> [ON].
≥The [ ]...
