Panasonic Pv Gs2 Operating Instructions Manual
Here you can view all the pages of manual Panasonic Pv Gs2 Operating Instructions Manual. The Panasonic manuals for Digital Camcorder are available online for free. You can easily download all the documents as PDF.
Page 51

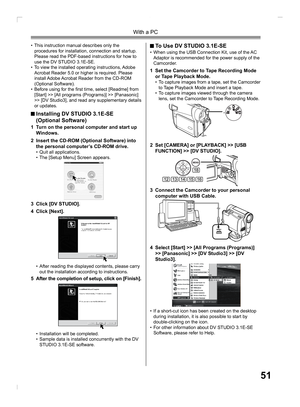

![Page 51
51
With a PC
Installing DV STUDIO 3.1E-SE
(Optional Software)
1 Turn on the personal computer and start up
Windows.
2 Insert the CD-ROM (Optional Software) into
the personal computer’s CD-ROM drive.
• Quit all applications.
• The [Setup Menu] Screen appears.
5 After the completion of setup, click on [Finish].
3 Click [DV STUDIO].
4 Click [Next].
• Installation will be completed.
• Sample data is installed concurrently with the DV
STUDIO 3.1E-SE software.
1 Set the Camcorder to Tape...](http://img.usermanuals.tech/thumb/58/64644/w300_pv-gs2_en_om_d-50.png "Page 51
51
With a PC
Installing DV STUDIO 3.1E-SE
(Optional Software)
1 Turn on the personal computer and start up
Windows.
2 Insert the CD-ROM (Optional Software) into
the personal computer’s CD-ROM drive.
• Quit all applications.
• The [Setup Menu] Screen appears.
5 After the completion of setup, click on [Finish].
3 Click [DV STUDIO].
4 Click [Next].
• Installation will be completed.
• Sample data is installed concurrently with the DV
STUDIO 3.1E-SE software.
1 Set the Camcorder to Tape...")
51 With a PC Installing DV STUDIO 3.1E-SE (Optional Software) 1 Turn on the personal computer and start up Windows. 2 Insert the CD-ROM (Optional Software) into the personal computer’s CD-ROM drive. • Quit all applications. • The [Setup Menu] Screen appears. 5 After the completion of setup, click on [Finish]. 3 Click [DV STUDIO]. 4 Click [Next]. • Installation will be completed. • Sample data is installed concurrently with the DV STUDIO 3.1E-SE software. 1 Set the Camcorder to Tape...
Page 52

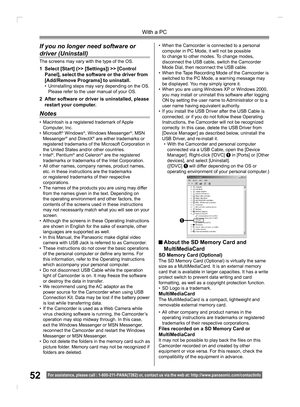

![Page 52
52
With a PC
For assistance, please call : 1- 800-211- PANA(7262) or, contact us via the web at: http://w w w.panasonic.com /contactinfo
If you no longer need software or
driver (Uninstall)
The screens may vary with the type of the OS.
1 Select [Start] (>> [Settings]) >> [Control
Panel], select the software or the driver from
[Add/Remove Programs] to uninstall.
• Uninstalling steps may vary depending on the OS.
Please refer to the user manual of your OS.
2 After software or driver is uninstalled,...](http://img.usermanuals.tech/thumb/58/64644/w300_pv-gs2_en_om_d-51.png "Page 52
52
With a PC
For assistance, please call : 1- 800-211- PANA(7262) or, contact us via the web at: http://w w w.panasonic.com /contactinfo
If you no longer need software or
driver (Uninstall)
The screens may vary with the type of the OS.
1 Select [Start] (>> [Settings]) >> [Control
Panel], select the software or the driver from
[Add/Remove Programs] to uninstall.
• Uninstalling steps may vary depending on the OS.
Please refer to the user manual of your OS.
2 After software or driver is uninstalled,...")
52 With a PC For assistance, please call : 1- 800-211- PANA(7262) or, contact us via the web at: http://w w w.panasonic.com /contactinfo If you no longer need software or driver (Uninstall) The screens may vary with the type of the OS. 1 Select [Start] (>> [Settings]) >> [Control Panel], select the software or the driver from [Add/Remove Programs] to uninstall. • Uninstalling steps may vary depending on the OS. Please refer to the user manual of your OS. 2 After software or driver is uninstalled,...
Page 53
![Page 53
53
With a PC
About the folder structure when using
the Memory Card in a personal
computer
• When a Card with data recorded on it is inserted
into a personal computer, folders will be displayed
as in the fi
gure.
[100CDPFP]:
The images (IMGA0001.JPG, etc.) in this folder are
recorded in the JPEG format.
[MISC]:Files in which DPOF Data has been set to the image
are in this folder.
[TITLE]:This contains the data of the original titles
(USR00001.TTL, etc.).
• [DCIM], [IM01CDPF], [PRIVATE],...](http://img.usermanuals.tech/thumb/58/64644/w300_pv-gs2_en_om_d-52.png "Page 53
53
With a PC
About the folder structure when using
the Memory Card in a personal
computer
• When a Card with data recorded on it is inserted
into a personal computer, folders will be displayed
as in the fi
gure.
[100CDPFP]:
The images (IMGA0001.JPG, etc.) in this folder are
recorded in the JPEG format.
[MISC]:Files in which DPOF Data has been set to the image
are in this folder.
[TITLE]:This contains the data of the original titles
(USR00001.TTL, etc.).
• [DCIM], [IM01CDPF], [PRIVATE],...")
53 With a PC About the folder structure when using the Memory Card in a personal computer • When a Card with data recorded on it is inserted into a personal computer, folders will be displayed as in the fi gure. [100CDPFP]: The images (IMGA0001.JPG, etc.) in this folder are recorded in the JPEG format. [MISC]:Files in which DPOF Data has been set to the image are in this folder. [TITLE]:This contains the data of the original titles (USR00001.TTL, etc.). • [DCIM], [IM01CDPF], [PRIVATE],...

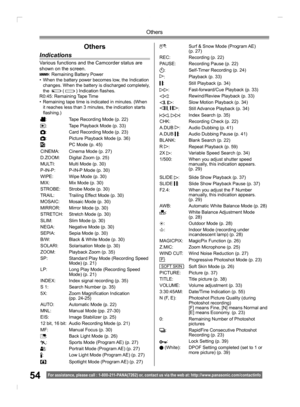

Page 54
54 Others For assistance, please call : 1- 800-211- PANA(7262) or, contact us via the web at: http://w w w.panasonic.com /contactinfo Others Indications Various functions and the Camcorder status are shown on the screen. : Remaining Battery Power • When the battery power becomes low, the Indication changes. When the battery is discharged completely, the ( ) Indication fl ashes. R0:45: Remaining Tape Time • Remaining tape time is indicated in minutes. (When it reaches less than 3 minutes, the...
Page 55

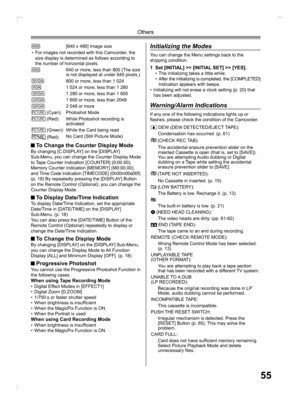

![Page 55
55
Others
640: [640 x 480] Image size
• For images not recorded with this Camcorder, the
size display is determined as follows according to
the number of horizontal pixels.
640: 640 or more, less than 800 (The size
is not displayed at under 640 pixels.)
SVGA: 800 or more, less than 1 024XGA: 1 024 or more, less than 1 280SXGA: 1 280 or more, less than 1 600UXGA: 1 600 or more, less than 2048QXGA: 2 048 or morePICTURE (Cyan):Photoshot ModePICTURE (Red): While Photoshot recording is
activated
PICTURE...](http://img.usermanuals.tech/thumb/58/64644/w300_pv-gs2_en_om_d-54.png "Page 55
55
Others
640: [640 x 480] Image size
• For images not recorded with this Camcorder, the
size display is determined as follows according to
the number of horizontal pixels.
640: 640 or more, less than 800 (The size
is not displayed at under 640 pixels.)
SVGA: 800 or more, less than 1 024XGA: 1 024 or more, less than 1 280SXGA: 1 280 or more, less than 1 600UXGA: 1 600 or more, less than 2048QXGA: 2 048 or morePICTURE (Cyan):Photoshot ModePICTURE (Red): While Photoshot recording is
activated
PICTURE...")
55 Others 640: [640 x 480] Image size • For images not recorded with this Camcorder, the size display is determined as follows according to the number of horizontal pixels. 640: 640 or more, less than 800 (The size is not displayed at under 640 pixels.) SVGA: 800 or more, less than 1 024XGA: 1 024 or more, less than 1 280SXGA: 1 280 or more, less than 1 600UXGA: 1 600 or more, less than 2048QXGA: 2 048 or morePICTURE (Cyan):Photoshot ModePICTURE (Red): While Photoshot recording is activated PICTURE...
Page 56

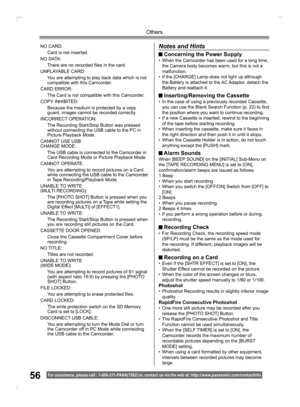

![Page 56
56
Others
For assistance, please call : 1- 800-211- PANA(7262) or, contact us via the web at: http://w w w.panasonic.com /contactinfo
Notes and Hints
Concerning the Power Supply• When the Camcorder has been used for a long time,
the Camera body becomes warm, but this is not a
malfunction.
• If the [CHARGE] Lamp does not light up although
the Battery is attached to the AC Adaptor, detach the
Battery and reattach it.
Inserting/Removing the Cassette• In the case of using a previously recorded...](http://img.usermanuals.tech/thumb/58/64644/w300_pv-gs2_en_om_d-55.png "Page 56
56
Others
For assistance, please call : 1- 800-211- PANA(7262) or, contact us via the web at: http://w w w.panasonic.com /contactinfo
Notes and Hints
Concerning the Power Supply• When the Camcorder has been used for a long time,
the Camera body becomes warm, but this is not a
malfunction.
• If the [CHARGE] Lamp does not light up although
the Battery is attached to the AC Adaptor, detach the
Battery and reattach it.
Inserting/Removing the Cassette• In the case of using a previously recorded...")
56 Others For assistance, please call : 1- 800-211- PANA(7262) or, contact us via the web at: http://w w w.panasonic.com /contactinfo Notes and Hints Concerning the Power Supply• When the Camcorder has been used for a long time, the Camera body becomes warm, but this is not a malfunction. • If the [CHARGE] Lamp does not light up although the Battery is attached to the AC Adaptor, detach the Battery and reattach it. Inserting/Removing the Cassette• In the case of using a previously recorded...
Page 57
![Page 57
57
Others
• If you repeatedly record or erase pictures, intervals
between recorded pictures may become large. In
this case, back up your important data on a PC, and
format your card using this Camcorder.
Quick Start• During the Quick Start Standby Mode, a minute
amount of electricity is consumed.
• When the Camcorder is left in the Recording Pause
Mode for 5 minutes, it will be turned into the Quick
Start Standby Mode. To turn the Camcorder on
again, set the [OFF/ON] Switch to [OFF] and then
set...](http://img.usermanuals.tech/thumb/58/64644/w300_pv-gs2_en_om_d-56.png "Page 57
57
Others
• If you repeatedly record or erase pictures, intervals
between recorded pictures may become large. In
this case, back up your important data on a PC, and
format your card using this Camcorder.
Quick Start• During the Quick Start Standby Mode, a minute
amount of electricity is consumed.
• When the Camcorder is left in the Recording Pause
Mode for 5 minutes, it will be turned into the Quick
Start Standby Mode. To turn the Camcorder on
again, set the [OFF/ON] Switch to [OFF] and then
set...")
57 Others • If you repeatedly record or erase pictures, intervals between recorded pictures may become large. In this case, back up your important data on a PC, and format your card using this Camcorder. Quick Start• During the Quick Start Standby Mode, a minute amount of electricity is consumed. • When the Camcorder is left in the Recording Pause Mode for 5 minutes, it will be turned into the Quick Start Standby Mode. To turn the Camcorder on again, set the [OFF/ON] Switch to [OFF] and then set...

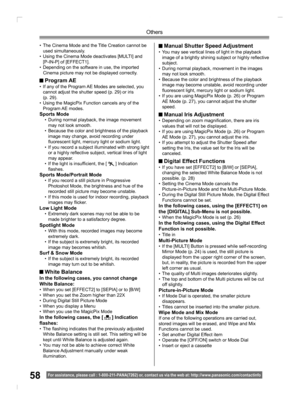

Page 58
58 Others For assistance, please call : 1- 800-211- PANA(7262) or, contact us via the web at: http://w w w.panasonic.com /contactinfo Manual Shutter Speed Adjustment• You may see vertical lines of light in the playback image of a brightly shining subject or highly refl ective subject. • During normal playback, movement in the images may not look smooth. • Because the color and brightness of the playback image may become unstable, avoid recording under fl uorescent light, mercury light or sodium...
Page 59

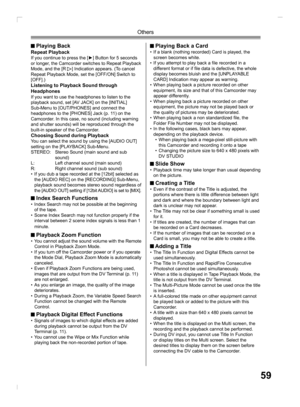

![Page 59
59
Others
Playing Back Repeat PlaybackIf you continue to press the [►] Button for 5 seconds
or longer, the Camcorder switches to Repeat Playback
Mode, and the [R
] Indication appears. (To cancel
Repeat Playback Mode, set the [OFF/ON] Switch to
[OFF].)
Listening to Playback Sound through
Headphones
If you want to use the headphones to listen to the
playback sound, set [AV JACK] on the [INITIAL]
Sub-Menu to [OUT/PHONES] and connect the
headphones to the [PHONES] Jack (p. 11) on the
Camcorder....](http://img.usermanuals.tech/thumb/58/64644/w300_pv-gs2_en_om_d-58.png "Page 59
59
Others
Playing Back Repeat PlaybackIf you continue to press the [►] Button for 5 seconds
or longer, the Camcorder switches to Repeat Playback
Mode, and the [R
] Indication appears. (To cancel
Repeat Playback Mode, set the [OFF/ON] Switch to
[OFF].)
Listening to Playback Sound through
Headphones
If you want to use the headphones to listen to the
playback sound, set [AV JACK] on the [INITIAL]
Sub-Menu to [OUT/PHONES] and connect the
headphones to the [PHONES] Jack (p. 11) on the
Camcorder....")
59 Others Playing Back Repeat PlaybackIf you continue to press the [►] Button for 5 seconds or longer, the Camcorder switches to Repeat Playback Mode, and the [R ] Indication appears. (To cancel Repeat Playback Mode, set the [OFF/ON] Switch to [OFF].) Listening to Playback Sound through Headphones If you want to use the headphones to listen to the playback sound, set [AV JACK] on the [INITIAL] Sub-Menu to [OUT/PHONES] and connect the headphones to the [PHONES] Jack (p. 11) on the Camcorder....
Page 60
![Page 60
60
Others
For assistance, please call : 1- 800-211- PANA(7262) or, contact us via the web at: http://w w w.panasonic.com /contactinfo
DPOF• Perform the DPOF Settings with your Camcorder.
• Verifying the DPOF Settings may take a little time.
Wait until the Card Access Lamp goes out.
Lock Setting• The Lock Setting carried out by this Camcorder is
only effective for this Camcorder.
• The SD Memory Card has a write protection switch
on it. If the switch is moved to the [LOCK] side, you
cannot write to...](http://img.usermanuals.tech/thumb/58/64644/w300_pv-gs2_en_om_d-59.png "Page 60
60
Others
For assistance, please call : 1- 800-211- PANA(7262) or, contact us via the web at: http://w w w.panasonic.com /contactinfo
DPOF• Perform the DPOF Settings with your Camcorder.
• Verifying the DPOF Settings may take a little time.
Wait until the Card Access Lamp goes out.
Lock Setting• The Lock Setting carried out by this Camcorder is
only effective for this Camcorder.
• The SD Memory Card has a write protection switch
on it. If the switch is moved to the [LOCK] side, you
cannot write to...")
60 Others For assistance, please call : 1- 800-211- PANA(7262) or, contact us via the web at: http://w w w.panasonic.com /contactinfo DPOF• Perform the DPOF Settings with your Camcorder. • Verifying the DPOF Settings may take a little time. Wait until the Card Access Lamp goes out. Lock Setting• The Lock Setting carried out by this Camcorder is only effective for this Camcorder. • The SD Memory Card has a write protection switch on it. If the switch is moved to the [LOCK] side, you cannot write to...
