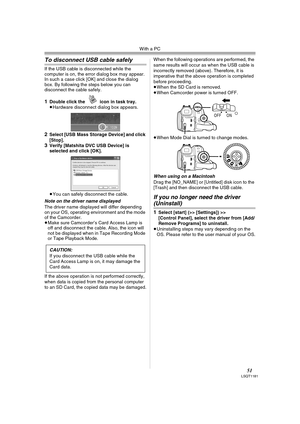

With a PC
51LSQT1181
To disconnect USB cable safely
If the USB cable is disconnected while the
computer is on, the error dialog box may appear.
In such a case click [OK] and close the dialog
box. By following the steps below you can
disconnect the cable safely.
1Double click the   icon in task tray.≥Hardware disconnect dialog box appears.
2Select [USB Mass Storage Device] and click
[Stop].
3Verify [Matshita DVC USB Device] is
selected and click [OK].
≥You can safely disconnect the cable.
Note on...

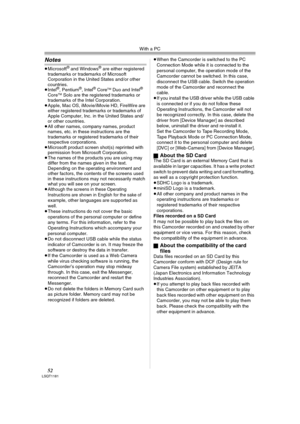

With a PC
52LSQT1181
Notes
≥Microsoft® and Windows® are either registered
trademarks or trademarks of Microsoft
Corporation in the United States and/or other
countries.
≥Intel
®, Pentium®, Intel® CoreTM Duo and Intel®
CoreTM Solo are the registered trademarks or
trademarks of the Intel Corporation.
≥Apple, Mac OS, iMovie/iMovie HD, FireWire are
either registered trademarks or trademarks of
Apple Computer, Inc. in the United States and/
or other countries.
≥All other names, company names, product...

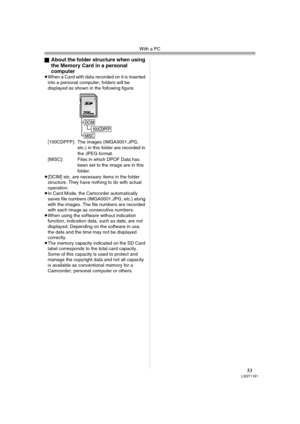

With a PC
53LSQT1181
ªAbout the folder structure when using
the Memory Card in a personal
computer
≥When a Card with data recorded on it is inserted
into a personal computer, folders will be
displayed as shown in the following figure.
[100CDPFP]: The images (IMGA0001.JPG,
etc.) in this folder are recorded in
the JPEG format.
[MISC]: Files in which DPOF Data has
been set to the image are in this
folder.
≥[DCIM] etc. are necessary items in the folder
structure. They have nothing to do with actual...

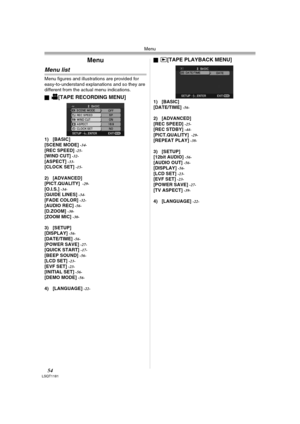

Menu
54LSQT1181
Menu
Menu list
Menu figures and illustrations are provided for
easy-to-understand explanations and so they are
different from the actual menu indications.
ª
[TAPE RECORDING MENU]
1) [BASIC]
[SCENE MODE] -34-[REC SPEED] -25-[WIND CUT] -32-[ASPECT] -33-[CLOCK SET] -15-
2) [ADVANCED]
[PICT.QUALITY]  -29-[O.I.S.] -34-[GUIDE LINES] -34-[FADE COLOR] -32-[AUDIO REC] -56-[D.ZOOM] -30-[ZOOM MIC] -30-
3) [SETUP]
[DISPLAY] -56-[DATE/TIME] -56-[POWER SAVE] -27-[QUICK START] -17-[BEEP SOUND]...

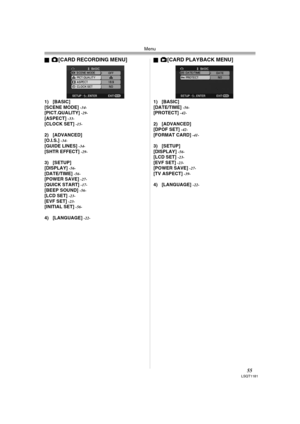

Menu
55LSQT1181
ª[CARD RECORDING MENU]
1) [BASIC]
[SCENE MODE] -34-[PICT.QUALITY] -29-[ASPECT] -33-[CLOCK SET] -15-
2) [ADVANCED]
[O.I.S.] -34-[GUIDE LINES] -34-[SHTR EFFECT] -29-
3) [SETUP]
[DISPLAY] -56-[DATE/TIME] -56-[POWER SAVE] -27-[QUICK START] -17-[BEEP SOUND] -56-[LCD SET] -23-[EVF SET] -23-[INITIAL SET] -56-
4) [LANGUAGE] -22-
ª[CARD PLAYBACK MENU]
1) [BASIC]
[DATE/TIME] -56-[PROTECT] -42-
2) [ADVANCED]
[DPOF SET] -42-[FORMAT CARD] -41-
3) [SETUP]
[DISPLAY] -56-[LCD SET] -23-[EVF SET]...

Menu

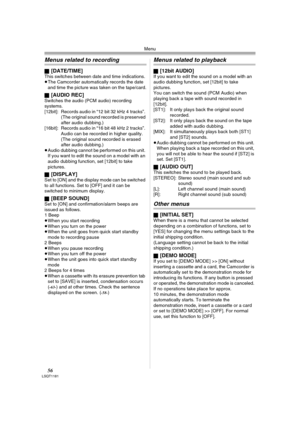

56LSQT1181
Menus related to recording
ª[DATE/TIME]This switches between date and time indications.
≥The Camcorder automatically records the date
and time the picture was taken on the tape/card.
ª
[AUDIO REC]Switches the audio (PCM audio) recording
systems.
[12bit]: Records audio in “12 bit 32 kHz 4 tracks”.
(The original sound recorded is preserved
after audio dubbing.)
[16bit]: Records audio in “16 bit 48 kHz 2 tracks”.
Audio can be recorded in higher quality.
(The original sound recorded is...

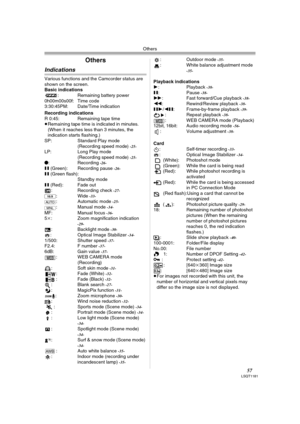

Others
57LSQT1181
Others
Indications
Various functions and the Camcorder status are
shown on the screen.
Basic indications
: Remaining battery power
0h00m00s00f: Time code
3:30:45PM: Date/Time indication
Recording indications
R 0:45: Remaining tape time
≥Remaining tape time is indicated in minutes.
(When it reaches less than 3 minutes, the
indication starts flashing.)
SP: Standard Play mode
(Recording speed mode)
-25-LP: Long Play mode
(Recording speed mode) -25-¥: Recording -26-; (Green):...

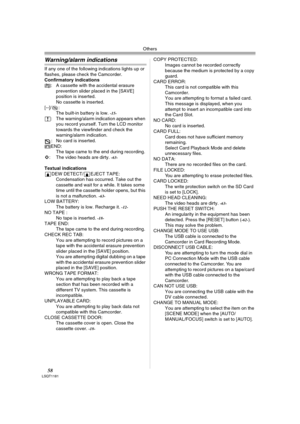

Others
58LSQT1181
Warning/alarm indications
If any one of the following indications lights up or
flashes, please check the Camcorder.
Confirmatory indicationsY: A cassette with the accidental erasure
prevention slider placed in the [SAVE]
position is inserted.
No cassette is inserted.
[--]/0:
The built-in battery is low.
-15-°: The warning/alarm indication appears when
you record yourself. Turn the LCD monitor
towards the viewfinder and check the
warning/alarm indication.
: No card is inserted....

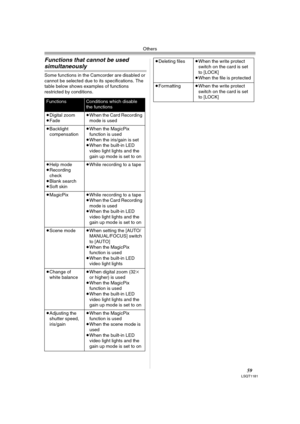

Others
59LSQT1181
Functions that cannot be used
simultaneously
Some functions in the Camcorder are disabled or
cannot be selected due to its specifications. The
table below shows examples of functions
restricted by conditions.
FunctionsConditions which disable
the functions
≥Digital zoom
≥Fade≥When the Card Recording
mode is used
≥Backlight
compensation≥When the MagicPix
function is used
≥When the iris/gain is set
≥When the built-in LED
video light lights and the
gain up mode is set to on...

Others

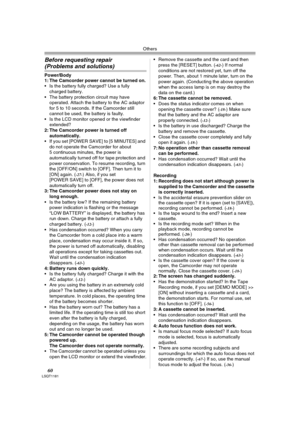

60LSQT1181
Before requesting repair
(Problems and solutions)
Power/Body
1: The Camcorder power cannot be turned on.
 Is the battery fully charged? Use a fully
charged battery.
 The battery protection circuit may have
operated. Attach the battery to the AC adaptor
for 5 to 10 seconds. If the Camcorder still
cannot be used, the battery is faulty.
 Is the LCD monitor opened or the viewfinder
extended?
2: The Camcorder power is turned off
automatically.
 If you set [POWER SAVE] to [5 MINUTES]...
