    Page 1 INTRODUCTION This antenna system, with the equipment supplied, can receive signals simultaneously from satellites located at 101°and 119° West longitude orbital locations. This antenna system also has a r e s e rved position for a satellite located at 110°W for additional services. If such services are of f e red in your local area, you will be notified. The installation pr o c e d u res listed in this manual r e q u i re basic knowledge in construction, assembly and wiring. In or d e r to safely...

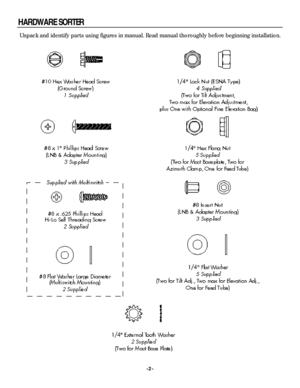

    Page 2 -2- HARDWARE SORTERUnpack and identify parts using figures in manual. Read manual thoroughly before beginning installation.

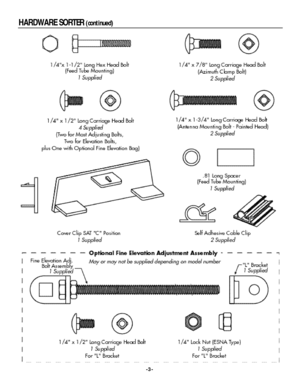

    Page 3 -3- HARDWARE SORTER(continued)

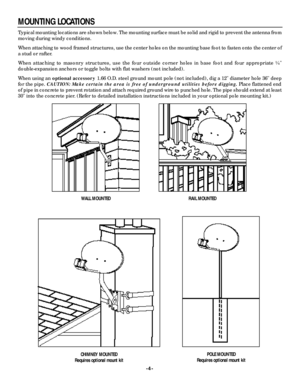

    Page 4 -4-MOUNTING LOCATIONS Typical mounting locations are shown below. The mounting surface must be solid and rigid to prevent the antenna from moving during windy conditions. When attaching to wood framed structures, use the center holes on the mounting base foot to fasten onto the center of a stud or rafter. When attaching to masonry stru c t u res, use the four outside corner holes in base foot and four appropriate Z v double-expansion anchors or toggle bolts with flat washers (not...
