Panasonic Sc Xh185 Operating Instructions

[GS]RQT9686-G
Operating Instructions
DVD Home Theater Sound System
Model No.SC-XH185
until
2012/04/02
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Please keep this manual for future reference.
The illustrations shown may differ from your unit.
Region number
The player plays DVD-Video marked with labels containing the region number “2” or “ALL”.
Example:
2ALL3
4 2
The illustration shows SC-PT70.
Obrázek představuje model SC-PT70.
Na...

2
RQT9686
(When using the moulded three pin mains plug)
How to replace the fuse
The location of the fuse differ according to the type of AC mains plug (figures A and B).
Confirm the AC mains plug fitted and follow the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
2. Replace the fuse and close or attach the fuse cover.
SystemSC-XH185
Main unitSA-XH185
Speaker system Front speakersSB-HF185
Center speakerSB-HC185
Surround...

3
RQT9686
	The circled numbers indicated in the operating instructions (e.g. Press [Í]1) correspond to the circled numbers in the above.
RETURN
VOL
STOP
VOL
TVINPUTAV
SKIPSLOW
PAUSE
SEARCHSEARCHPLAY
DVDRADIOEXT-IN
EXIT
– REPEAT
PLAY MODE
–W.SRDSOUND
SURROUND MIC VOL ECHO
123
456
78
0
9
1010CANCEL
FUNCTIONS
MUTE
MENU
START
 TOP MENU
OK
SKIP
– SLEEP – CH SELECT –FL DISPLAY







 








  


1-MIC-2



SC-XH185 GS_RQT9686-G_eng.book  Page 3  Tuesday, January 10, 2012  8:31...

4
RQT9686
Other Panasonic audio/video equipment may start functioning when you
operate the unit using the supplied remote control.
You can operate this unit in another mode by setting the remote control
operating mode to “REMOTE 2”.
The main unit and remote control must be set to the same mode.
1 Press [EXT-IN]4 to select “AUX”.
2 Press and hold [< OPEN/CLOSE]2 on the main unit and [2] on the
remote control until the main unit’s display shows “REMOTE 2”.
3 Press and hold [OK]8 and [2] on the remote...

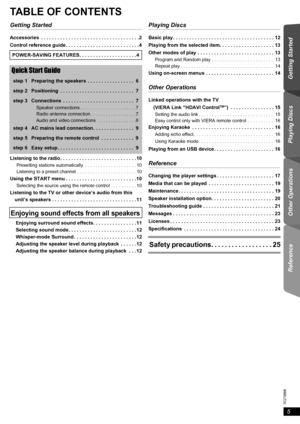

5
Getting Started Playing Discs Other Operations Reference
RQT9686
TABLE OF CONTENTS
Getting Started
Accessories  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Control reference guide . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Quick Start Guide
step 1 Preparing the speakers  . . . . . . . . . . . . . . . . .  6
step 2 Positioning  . . . . . . . . . . . . . . . . . . . . . . . . . . .  7
step 3 Connections  . . . . . . . . . . . . . . . . . . . . . . . . . .  7...

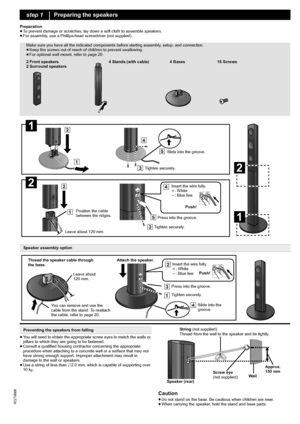

6
RQT9686
Preparation
≥To prevent damage or scratches, lay down a soft cloth to assemble speakers.
≥For assembly, use a Phillips-head screwdriver (not supplied).
≥You will need to obtain the appropriate screw eyes to match the walls or
pillars to which they are going to be fastened.
≥Consult a qualified housing contractor concerning the appropriate
procedure when attaching to a concrete wall or a surface that may not
have strong enough support. Improper attachment may result in
damage to the wall or...

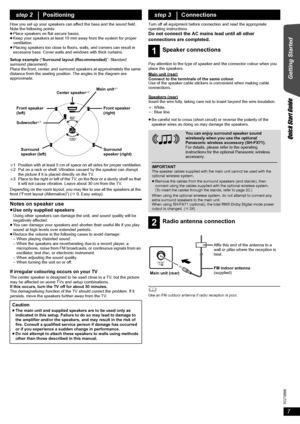

7
RQT9686
Getting Started
Quick Start Guide
How you set up your speakers can affect the bass and the sound field.
Note the following points:
≥Place speakers on flat secure bases.
≥Keep your speakers at least 10 mm away from the system for proper
ventilation.
≥Placing speakers too close to floors, walls, and corners can result in
excessive bass. Cover walls and windows with thick curtains.
Setup example (“Surround layout (Recommended)”: Standard
surround placement)
Place the front, center, and surround...

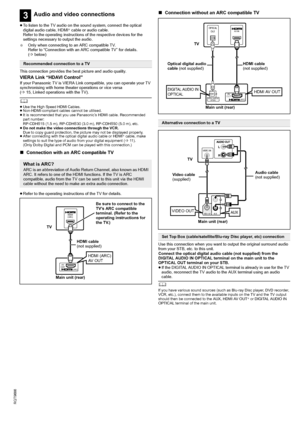

8
RQT9686
≥To listen to the TV audio on the sound system, connect the optical
digital audio cable, HDMI§ cable or audio cable.
Refer to the operating instructions of the respective devices for the
settings necessary to output the audio.
§Only when connecting to an ARC compatible TV.
Refer to “Connection with an ARC compatible TV” for details.
(Bbelow)
This connection provides the best picture and audio quality.
VIERA Link “HDAVI Control”If your Panasonic TV is VIERA Link compatible, you can operate...

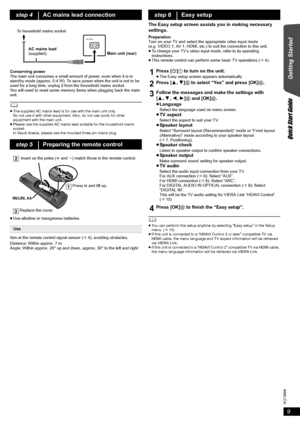

9
RQT9686
Getting Started
Quick Start Guide
Conserving power
The main unit consumes a small amount of power, even when it is in
standby mode (approx. 0.4 W). To save power when the unit is not to be
used for a long time, unplug it from the household mains socket.
You will need to reset some memory items when plugging back the main
unit.
	≥The supplied AC mains lead is for use with the main unit only.
Do not use it with other equipment. Also, do not use cords for other
equipment with the main unit....

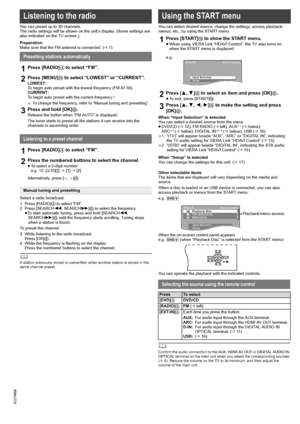

10
RQT9686
You can preset up to 30 channels.
The radio settings will be shown on the unit’s display. (Some settings are
also indicated on the TV screen.)
Preparation
Make sure that the FM antenna is connected. (B7)
Select a radio broadcast.
1 Press [RADIO]4 to select “FM”.
2 Press [SEARCH6, SEARCH5]? to select the frequency.
≥To start automatic tuning, press and hold [SEARCH6,
SEARCH5]? until the frequency starts scrolling. Tuning stops
when a station is found.
To preset the channel
3 While listening...
