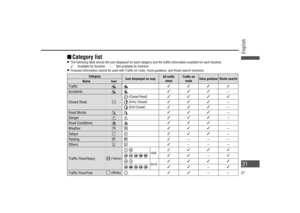

 Category  list   The following table shows the icon displayed for each category and the traffi c information available for each function.
  :  Available for function   :  Not available for function
   Forecast information cannot be used with Traffi c on route, Voice guidance, and Route search functions.
Category
Icon displayed on mapAll traffi c
eventTraffi c on
routeVoice guidanceRoute search
Name Icon
Traffi c
Accidents


Closed Road
 (Closed Road)
 (Entry Closed)

 (Exit Closed)...

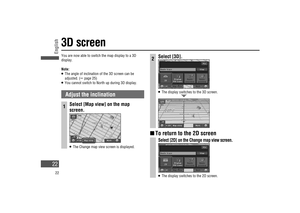

3D screen
You are now able to switch the map display to a 3D
display.
Note:
   The angle of inclination of the 3D screen can be
adjusted. (
 page 25)   You cannot switch to North up during 3D display.
Adjust the inclination
1Select [Map view] on the map
screen.
   The Change map view screen is displayed.
2Select [3D].
   The display switches to the 3D screen.
  To return to the 2D screen
Select [2D] on the Change map view screen.
   The display switches to the 2D screen.
English
22
22...

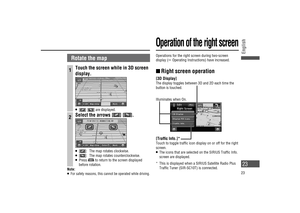

 Rotate the map
1Touch the screen while in 3D screen
display.
  [] [] are displayed.
2Select the arrows [] [].
  []:  The map rotates clockwise.  []:  The map rotates counterclockwise.  Press  to return to the screen displayed
before rotation.
Note:
  For safety reasons, this cannot be operated while driving.
Operations for the right screen during two-screen
display (
 Operating Instructions) have increased.
  Right screen operation
Operation of the right screen
[3D Display]
The display...

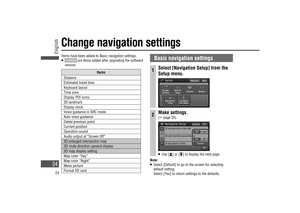

Change navigation settings
Basic navigation settings
1Select [Navigation Setup] from the
Setup menu.
2Make settings.( page 25)
  Use [] or [] to display the next page.
Note:
   Select [Default] to go to the screen for selecting
default setting.
   Select [Yes] to return settings to the defaults.
Items
Distance
Estimated travel time
Keyboard layout
Time zone
Display POI icons
3D landmark
Display clock
Voice guidance in SRC mode
Auto voice guidance
Delete previous point
Current position
Operation...

Items Settings

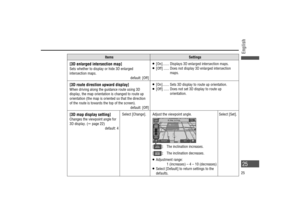

[3D enlarged intersection map]
Sets whether to display or hide 3D enlarged
intersection maps.
 default: [Off]
   [On] ....... Displays 3D enlarged intersection maps.   [Off] ......  Does not display 3D enlarged intersection
maps.
[3D route direction upward display]
When driving along the guidance route using 3D
display, the map orientation is changed to route up
orientation (the map is oriented so that the direction
of the route is towards the top of the screen).
 default: [Off]
...

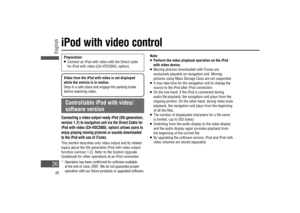

iPod with video control
Controllable iPod with video/
software version
Connecting a video-output-ready iPod (5th generation,
version 1.2) to navigation unit via the Direct Cable for
iPod with video (CA-VDC300U, option) allows users to
enjoy playing moving pictures or sounds downloaded
to the iPod with use of iTunes.
This section describes only video output and its related
topics about the 5th generation iPod with video output
function (version 1.2). Refer to the System Upgrade
Guidebook for other...

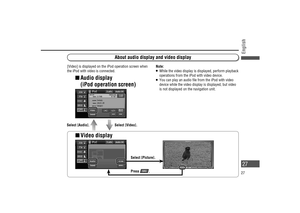

About audio display and video display
  Audio  display
(iPod operation screen)
Note:   While the video display is displayed, perform playback
operations from the iPod with video device.
   You can play an audio fi le from the iPod with video
device while the video display is displayed, but video
is not displayed on the navigation unit.
  Video  display
[Video] is displayed on the iPod operation screen when
the iPod with video is connected.
Select [Video]. Select [Audio].
Select [Picture].
Press...

iPod with video control (continued)

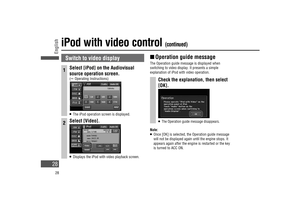

Switch to video display
1Select [iPod] on the Audiovisual
source operation screen.
( Operating Instructions)
   The iPod operation screen is displayed.
2Select [Video].
   Displays the iPod with video playback screen.
  Operation guide message
The Operation guide message is displayed when
switching to video display. It presents a simple
explanation of iPod with video operation.
Check the explanation, then select
[OK].
  The Operation guide message...

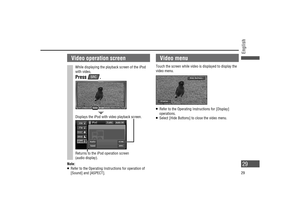

Video menu
Touch the screen while video is displayed to display the
video menu.
   Refer to the Operating Instructions for [Display]
operations.
  Select [Hide Buttons] to close the video menu.
Video operation screen
While displaying the playback screen of the iPod
with video,
Press .
Note:   Refer to the Operating Instructions for operation of
[Sound] and [ASPECT].
Displays the iPod with video playback screen.
Returns to the iPod operation screen
(audio display).
English
29
29...

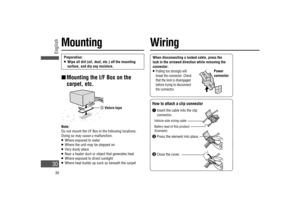

Mounting
When disconnecting a locked cable, press the
lock in the arrowed direction while removing the
connector.
  Pulling too strongly will
break the connector. Check
that the lock is disengaged
before trying to disconnect
the connector.Power
connector
How to attach a clip connector

  Insert the cable into the clip
connector.
Vehicle-side wiring cable
Battery lead of this product
(Example)

  Press the element into place.

  Close the cover.
  Mounting the I/F Box on the
carpet, etc....
