Panasonic Small Digital Business System 308/616 Installation Instructions

DBS SECTION 400 (Version 3.0)

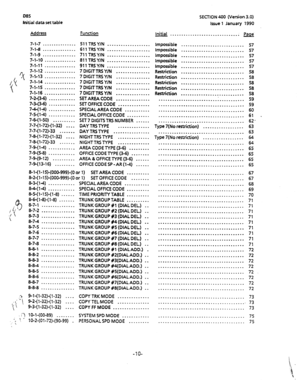

Initial data set table
Issue 1 January 1990
Address Function
7-l-7 ...............
7-l-8
...............
7-l-9
...............
7-l-10 ..............
7-l-l 1
..............
7-l-12 ..............
/‘( ? 7-l-13 ..............
7-l-14 ..............
t 7-l-15
..............
7-l-16 ..............
7-2-(3-6) ............
7-3-(3-6)
............
74(1-p) ............
7-S-( l-4) ............
7-6-(l-SO) ..........
7-7-(l-72)-(1-32) ....
7-7-(l-72)-33 ..........

SECTION 400 (Version 3.0)
Issue 1 January 1990 DBS
FF-1 System mode

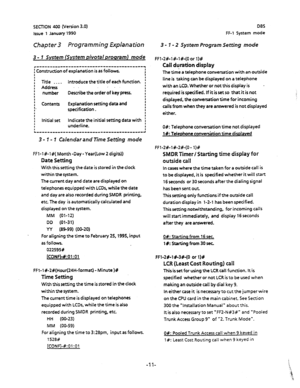

Chapter 3 Programming Explanation
3 - 1 System (System kvotal prowam) mode
c---““““---“-“-“-“-““--““““------”~
: Construction of explanation is as follows.
I i
: 8
1 Title _.._ Introduce the title of each function. !
Address I
: .
I
I number Describe the order of key press. i
I
I I
: Contents Explanation setting data and I
I.
I specification. :
I
: :
I
: Initial set indicatethe initial setting data with t...

DBS SECTION 400 (Version 3.0)
FF-1 System mode Issue 1 January 1990

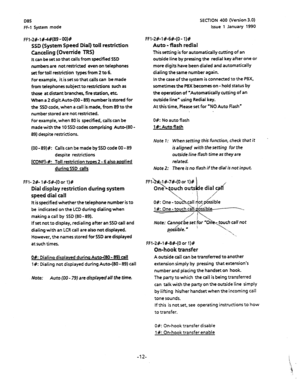

FFI-2C1#-4#(89 - OO)#
SSD (System Speed Dial) toil restriction
canceling (Override TRS)
It can be set so that calls from specified SSD
numbers are not restricted even
on telephones
set fortoll restriction types from 2 to 6.
For example, it is set so that calls can be made
from telephones subjectto restrictions such as
those at distant branches, fire station, etc
When a 2 digit Auto-(00 - 89) number is stored for
the SSD...

SECTION 400 (Version 3.0)
issue 1 January 1990 DBS
FF-1 System mode

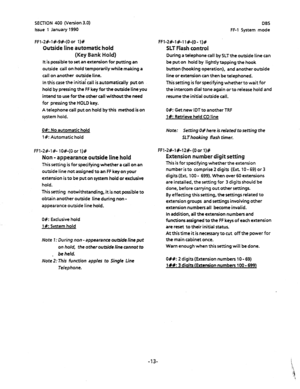

FFl-2#-l#-9#-(0 or l)#
Outside line automatic hold
(Key Bank Hold)
It is possible to set an extension for putting an
outside call on hold temporarily while making a
call on another outside line.
In this case the initiaicail is automatically put on
hold by pressing the FF key for the outside line you
intend to use for the other call without the need
for pressing the HOLD key.
A telephone call
put on hold by this method is on...

DBS
FF-1 System mode SECTION 400 (Version 3.0)
Issue 1 January 1990

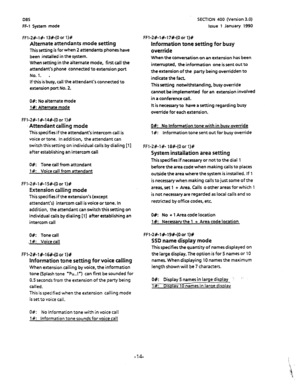

FFl-2#-l#- 13#-(0 of I)#
Alternate attendants mode setting
This setting is for when 2 attendants phones have
been installed in the system.
When setting in the alternate mode, first call the
attendant’s phone connected to extension port
No. 1. .
If this is busy, call the attendant’s connected to
extension pon No. 2.
OB: No alternate mode
1 R: Alternate mode
FFI-t#-I#-14#-(0 or I)#
Attendant calling mode
This specifies if...

SECTION 400 (Version 3.0)
Issue 1 January 1990 DBS
FF-1 System mode

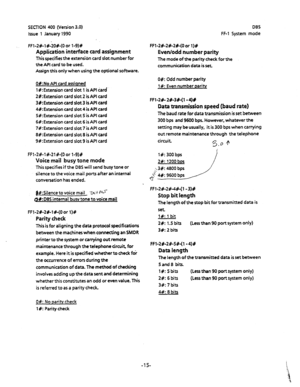

FFl-2#-1P20#-(0 or l-9)#
Application interface card assignment
This specifies the extension card slot number for
the API card to be used.
Assign this only when using the optional software.
O#:No API card assianed
1B:Extension card slot 1 is API card
2P: Extension card slot 2 is API card
3#: Extension card slot 3 is API card
48: Extension card slot 4 is API
card
f#:Extension card slot 5 is API card
6B:Extension card slot 6...

CBS
FF-1 System mode SECTION 400 (Version 3.0)
Issue 1 January 1990

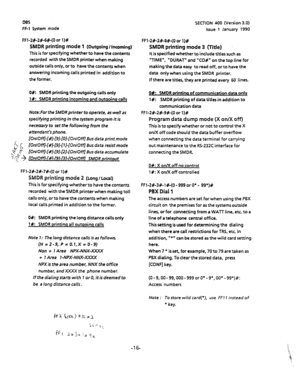

FEI-2#-2#-6#-(0 or l)#
SMDR printing mode 1 (Outgoing/ Incoming)
This is for specifying whether to have the contents
recorded with the SMDR printer when making
outside calls only, or to have the contents when
answering incoming calls printed in addition to
the former.
OC: SMDR printing the outgoing calls only
1 f: SMDR orintina incomina and outaoina calls
NoterFor the SMDR printer to operate, as we// as
specifying printing...

SECTION 400 (Version 3.0)
Issue 1 January 1990 DBS
FF-1 System mode

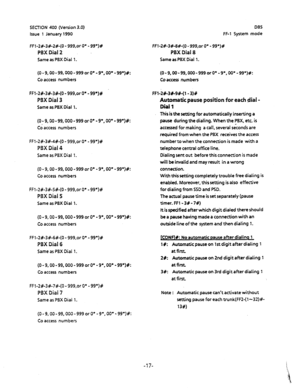

FFl-2#-3#-2#-(0 - 999,0r 0’ - 99’)#
PBX Dial 2
Same as PBX Dial 1.
(0 - 9,00 - 99,000 - 999 or 0’ - 9*, OO* - 99*)#:
Co access numbers
FFl-2#-3#-3#-(0 - 999,0r 0’ - 99*)#
PBX Dial 3
Same as PBX Dial 1.
(0 - 9,QO - 99,000 - 999 or 0’ - 9’,00’ - 99’)#:
Co access numbers
FFl-2#-3#-4#-(0 - 999,0r 0’ - 99*)#
PBX Dial 4
Same as PBX Dial l_
(0 - 9,00 - 99,000 - 999 or 0’ - 9*, 00” - 99’)#:
Co access numbers
FFl-2#-3#-5#-(0 -...

DBS
FF-1 System mode SECTION 400 (Version 3.0)
Issue 1 January 1990

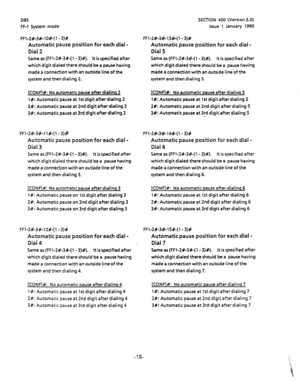

FFl-2#-3#-lO#-(1 - 3)#
Automatic pause position for each dial -
Dial 2
Same as (FFl-2#-3#-(1- 3)#). lt is specified after
which digit dialed there should be
a pause having
made a connection with an outside line of the
system and then dialing 2. FFl-t#-3#-13#-(1 - 3)#
Automatic pause position for each dial -
Dial 5
Same as (FFl-2#-3#-(l- 3)#). It is specified after
which digit dialed there should be a pause having
made a...

SECTION 400 (Version3.0)
Issue 1 January 1990 DBS
FF-1 System mode

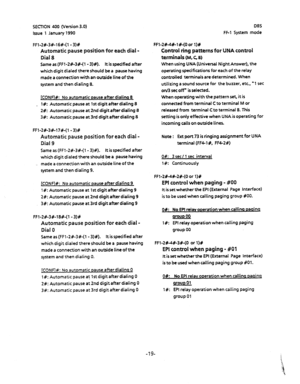

FFl-2#-3#-16#-(1 - 3)#
Automatic pause position for each dial -
Dial 8
Same as (FFl-2#-3#-(1 - 3)#).
It is specified after
which digit dialed there should be
a pause having
made a connection with an outside line of the
system and then dialing 8.
[CONFI#: No automatic cause after dialina 8
_ l#: Automatic pause at 1st digit after dialing 8
t#: Automatic pause at 2nd digit
afkerdialing 8
3#: Automatic pause at 3rd digit...
