Panasonic Th 50px60u Operating Instructions
Here you can view all the pages of manual Panasonic Th 50px60u Operating Instructions. The Panasonic manuals for Television are available online for free. You can easily download all the documents as PDF.

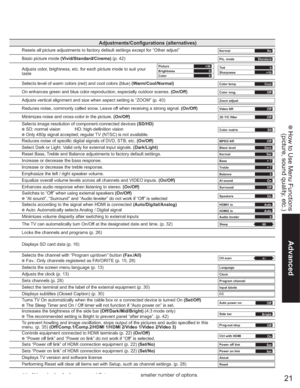

Page 21
21 Advanced How to Use Menu Functions (picture, sound quality, etc.) Adjustments/Configurations (alternatives) Resets all picture adjustments to factory default settings except for “Other adjust”No Normal Basic picture mode (Vivid/Standard/Cinema) (p. 42)Standard Pic. mode Adjusts color, brightness, etc. for each picture mode to suit your taste+30 0 0 Picture Brightness Color0 +10 Tint Sharpness Selects level of warm colors (red) and cool colors (blue) (Warm/Cool/Normal)Cool Color temp On enhances...

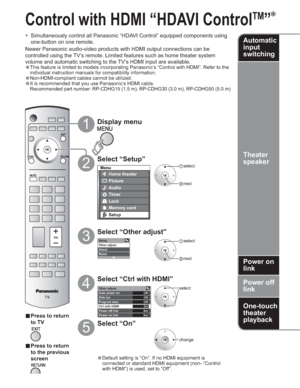

Page 22
22 - Setup Other adjust About Reset Other adjust Auto power on Side barOff Off Prog-out stop OffOn Set Set Ctrl with HDMI Power off link Power on link Menu Home theater Picture Audio Lock Setup Memory card Timer select next Control with HDMI “HDAVI Control TM ” Simultaneously control all Panasonic “HDAVI Control” equipped components using one-button on one remote. Newer Panasonic audio-video products with HDMI output connections can be controlled using the TV’s remote. Limited features such as...

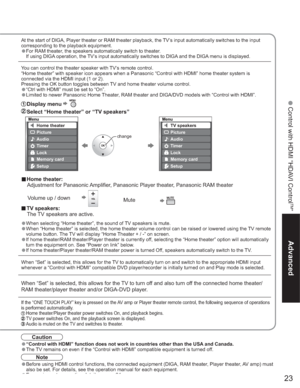

Page 23
23 Advanced Control with HDMI “HDAVI Control TM ” Menu Home theater Picture Audio Lock Setup Memory card Timer Menu TV speakers Picture Audio Lock Setup Memory card Timer At the start of DIGA, Player theater or RAM theater playback, the TV’s input automatically switches to the input corresponding to the playback equipment. •For RAM theater, the speakers automatically switch to theater. If using DIGA operation, the TV’s input automatically switches to DIGA and the DIGA menu is displayed. You can...

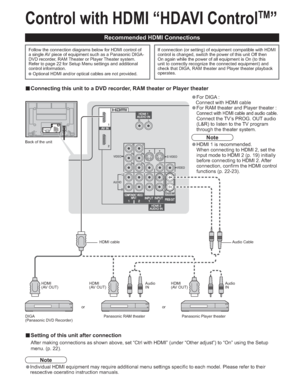

Page 24
24 Note •Individual HDMI equipment may require additional menu settings specific to each model. Please refer to their respective operating instruction manuals. Control with HDMI “HDAVI Control TM ” vSetting of this unit after connection After making connections as shown above, set “Ctrl with HDMI” (under “Other adjust”) to “On” using the Setup menu. (p. 22). Audio INAudio Cable HDMI cable HDMI (AV OUT)HDMI (AV OUT)HDMI (AV OUT)Audio IN DIGA (Panasonic DVD Recorder)Panasonic RAM theater Panasonic...

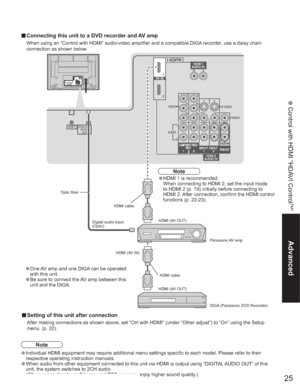

Page 25
25 Advanced Control with HDMI “HDAVI Control TM ”HDMI cable vSetting of this unit after connection After making connections as shown above, set “Ctrl with HDMI” (under “Other adjust”) to “On” using the Setup menu. (p. 22). Note Optic fiber Digital audio input (Optic)HDMI (AV OUT) HDMI (AV IN) HDMI (AV OUT) DIGA (Panasonic DVD Recorder) HDMI cablePanasonic AV amp vConnecting this unit to a DVD recorder and AV amp When using an “Control with HDMI” audio-video amplifier and a compatible DIGA recorder,...

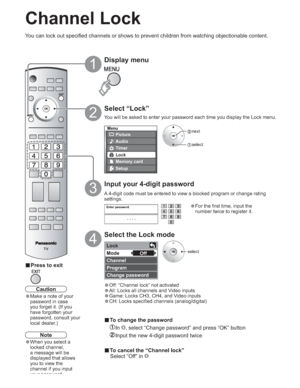

Page 26
26 - Menu Picture Audio Lock Setup Memory card Timer Enter password. ---- Lock Mode Channel Program Change password Off Channel Lock Select “Lock” 2 next select select Display menu 1 Input your 4-digit password 3 Select the Lock mode 4 vPress to exit You can lock out specified channels or shows to prevent children from watching objectionable content. Caution •Make a note of your password in case you forget it. (If you have forgotten your password, consult your local dealer.) •For the first time,...

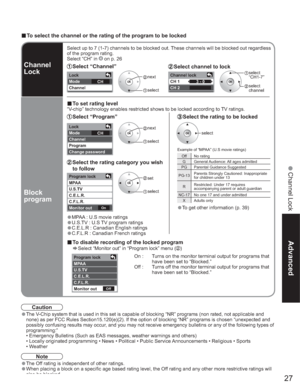

Page 27
27 Advanced Channel Lock Lock Mode ChannelCHChannel lock CH 1 CH 2 3 - 0 Lock Mode Channel Program Change passwordCH On Program lock MPAA U.S.TV C.E.L.R. C.F.L.R. Monitor out Off Program lock MPAA U.S.TV C.E.L.R. C.F.L.R. Monitor out next select Block program Channel Lock Select channel to lock select “CH1-7” select channel vTo set rating level “V-chip” technology enables restricted shows to be locked according to TV ratings. Select “Program” Select the rating category you wish to...

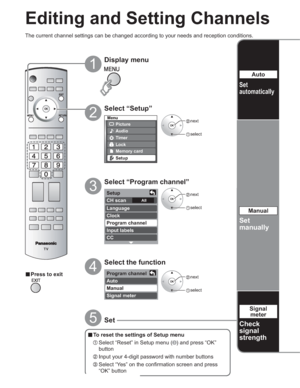

Page 28
28 - Menu Picture Audio Lock Setup Memory card Timer Setup CH scan Language Clock Program channel Input labels CC All Program channel Auto Manual Signal meter Editing and Setting Channels Select “Setup” 2 Display menu 1 3 4vPress to exit The current channel settings can be changed according to your needs and reception conditions. vTo reset the settings of Setup menu Select “Reset” in Setup menu () and press “OK” button Input your 4-digit password with number buttons Select “Yes” on the...

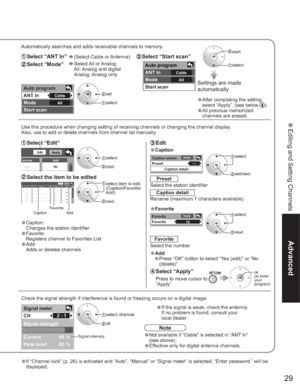

Page 29
29 Advanced Editing and Setting Channels Apply Caption detail --- Caption select Preset Auto program ANT In Mode Start scan All Cable Edit - - - FavoriteApply No Add Edit CH 1 2 3 4 5- - - 2 - - - - - - - - - FavoriteApply - - - - - - - - - - - - Caption No Ye s No No No Add Signal meter CH Signal strength Current Peak level 85 % 85 % 2 - 1 Apply 12 Favorite Favorite Auto program ANT In Mode Start scan All Cable Check the signal strength if interference is found or freezing occurs on a digital...

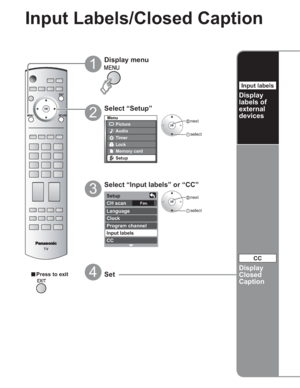

Page 30
30 - Menu Picture Audio Lock Setup Memory card Timer Fav. Setup CH scan Language Clock Program channel Input labels CC Input Labels/Closed Caption Select “Setup” 2 next select Display menu 1 3 4vPress to exitSet Select “Input labels” or “CC” Display labels of external devices Input labels Display Closed Caption CC next select
