41
Disc Operation
No display
DVD Functions Window
0:50  XP 6/8 10:15.00 PM
 T2     0:05.14  XP
 T1     0:00.10  SPRemain
By using the DVD Functions window you may access the main
functions quickly and easily.
„ To exit the DVD Functions window
Press RETURN.
Status messages (Disc)
Status messages appear on the television when you operate the
unit to show the condition of the unit.
1  Press DISPLAY in play mode.•  The display changes each time you press the button.
Disc indication
2%#
0,!9
,2 $6$
2!-...

42For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

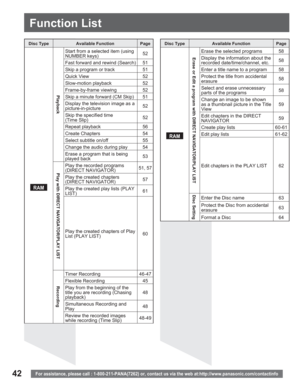

Disc Type Available Function Page
RAM
Playback
Start from a selected item (using
NUMBER keys)52
Fast forward and rewind (Search) 51
Skip a program or track 51
Quick View 52
Slow-motion playback 52
Frame-by-frame viewing 52
Skip a minute forward (CM Skip) 51
Display the television image as a
picture-in-picture52
Skip the specified time
(Time Slip)52
Repeat playback 56
Create Chapters...

43
Disc Operation

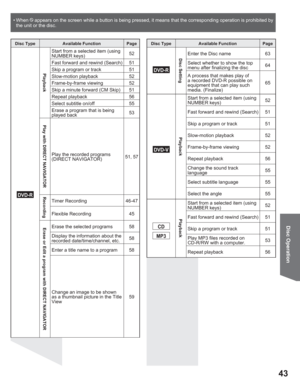

Disc Type Available Function Page
DVD-R
Playback
Start from a selected item (using
NUMBER keys)52
Fast forward and rewind (Search) 51
Skip a program or track 51
Slow-motion playback 52
Frame-by-frame viewing 52
Skip a minute forward (CM Skip) 51
Repeat playback 56
Select subtitle on/off 55
Erase a program that is being
played back53
Play with DIRECT NAVIGATOR
Play the recorded programs
(DIRECT NAVIGATOR)51, 57
Recording
Timer Recording 46-47
Flexible Recording 45
Erase or Edit a...

44For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo
•  It is not possible to record continuously from one side of a double sided
disc to the other. You will need to eject the disc and turn it over.
•  When using 8 cm (3
Ž) DVD-RAM, remove the disc from the cartridge.
•  You can record up to 99 titles on one disc.
•  You can record digital broadcasts that allow “one time only recording”
when using CPRM (p. 74) compatible DVD-RAM discs....

45
Disc Operation
Recording modes and approximate recording
times
Depending on the content being recorded, the recording times may
become shorter than indicated.
*2  When “Recording time in EP mode” (p. 68) is set to “EP (6 Hour)” in the
SETUP menu. The sound quality is better when using “EP (6 Hour)” than
when using “EP (8 Hour)”.
Note:•  When recording to DVD-RAM using “EP (8 Hour)” mode, play may not be
possible on DVD players that are compatible with DVD-RAM. In this case
use “EP (6 Hour)”...

46For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo

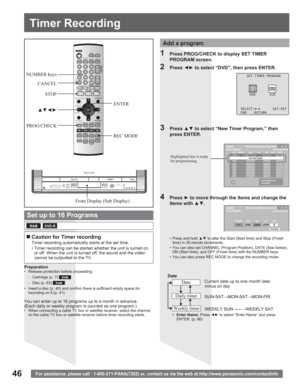

Timer Recording
ENTER
REC MODE NUMBER keys
CANCEL
STOP

x
z
{
y
PROG/CHECK
Front Display (Sub Display)
You can enter up to 16 programs up to a month in advance.
(Each daily or weekly program is counted as one program.)
•  When connecting a cable TV box or satellite receiver, select the channel
on the cable TV box or satellite receiver before timer recording starts.
3 Press
x
z to...

47
Disc Operation

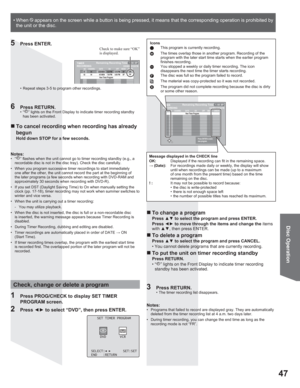

1:58 SP Remaining Recording Time3/29 MON 12:53.00 PMTIMER
RECORDING
MODE
OFF ON CHANNEL DATE64
New Timer Program5:10 PM 4:20 PM SPCHECKOKNO
01 3/29 MON
64 8:00 PM7:00 PM SP
OK02 4/5 MON
Notes:• “” flashes when the unit cannot go to timer recording standby (e.g., a
recordable disc is not in the disc tray). Check the disc carefully.
•  When you program successive timer recordings to start immediately
one after the other, the unit cannot record the part at the beginning of
the later...

48For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo
NUMBER keys
STOP

x
z
{
y
REC MODE DVD REC RETURN ENTER PAUSE
1  Press PLAY/×1.3 while recording or timer recording.•  TIME SLIP Indicator on the unit lights.

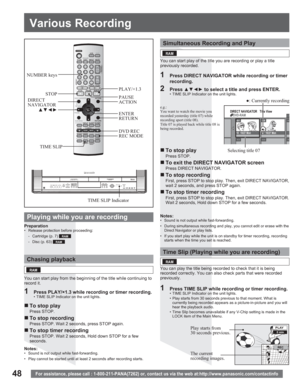

Chasing playback
You can start play from the beginning of the title while continuing to
record it.
„ To stop play
Press STOP.
„ To stop recording
Press STOP. Wait 2 seconds, press STOP again.
„ To stop timer recording
Press STOP....

49
Disc Operation

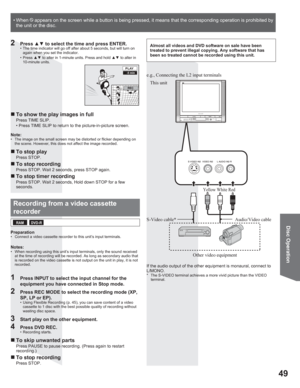

2 Press
x
z to select the time and press ENTER.•  The time indicator will go off after about 5 seconds, but will turn on
again when you set the indicator.
• Press
x
z to alter in 1-minute units. Press and hold
x
z to alter in
10-minute units.
„ To stop play
Press STOP.
„ To stop recording
Press STOP. Wait 2 seconds, press STOP again.
„ To stop timer recording
Press STOP. Wait 2 seconds, Hold down STOP for a few
seconds.
-5 minPLAY
REC
„ To show the play images in full
Press TIME...

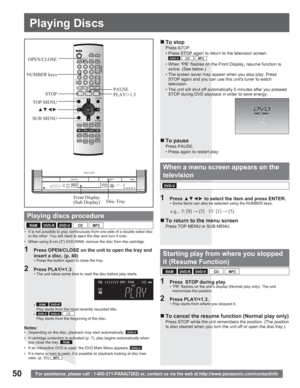

50For assistance, please call : 1-800-211-PANA(7262) or, contact us via the web at:http://www.panasonic.com/contactinfo
•  It is not possible to play continuously from one side of a double sided disc
to the other. You will need to eject the disc and turn it over.
•  When using 8 cm (3
Ž) DVD-RAM, remove the disc from the cartridge.
1  Press OPEN/CLOSE on the unit to open the tray and
insert a disc. (p. 40)
•  Press the button again to close the tray.
2 Press PLAY/×1.3.•  The unit takes some time to...
