Panasonic Tv Dvd Vcr Combination Pv Df2003 Operating Instructions

21
Basic Operation
  Please read the disc jacket for operation information.
  If a single sided disc is placed in upside down, “THIS
TYPE OF DISC CANNOT BE PLAYED. PLEASE
INSERT A DIFFERENT DISC” is displayed.
  Remove disc and press unit POWER off when not in
use.
  Disc continues to rotate with menu displayed even
after play is done. Press STOP to clear menu display
when  nished with menu.
■  Forward/Reverse rapid scene search
     ➞ Press FF/SLOW+ or REW/SLOW-
during play.

➞ Press PLAY...

22For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

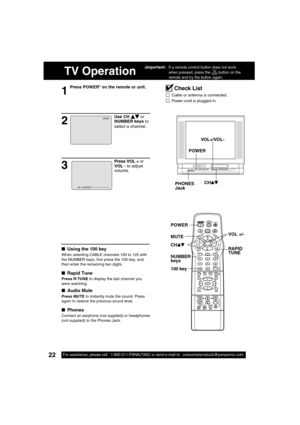

TV Operation
1
Press POWER* on the remote or unit.
■ Using the 100 key
When selecting CABLE channels 100 to 125 with
the NUMBER keys,  rst press the 100 key, and
then enter the remaining two digits.
■ Rapid Tune
Press R-TUNE to display the last channel you
were watching.
■  Audio Mute
Press MUTE to instantly mute the sound. Press
again to restore the previous sound level.
■ Phones
Connect an...

23
TV Operation

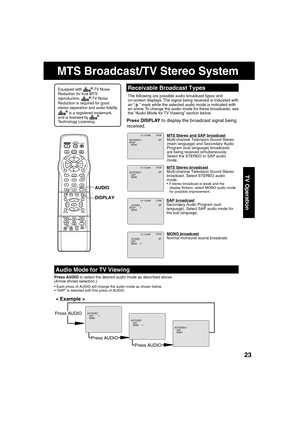

MTS Broadcast/TV Stereo System
Receivable  Broadcast Types
The following are possible audio broadcast types and
on-screen displays. The signal being received is indicated with
an “
   ” mark while the selected audio mode is indicated with
an arrow. To change the audio mode for these broadcasts, see
the “Audio Mode for TV Viewing” section below.
Press DISPLAY to display the broadcast signal being
received.
MTS Stereo and SAP broadcastMulti-channel Television Sound Stereo
(main...

24For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

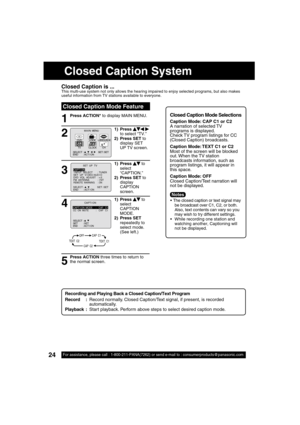

  Closed Caption Mode Feature
1
Closed Caption is ...This multi-use system not only allows the hearing impaired to enjoy selected programs, but also makes
useful information from TV stations available to everyone.
Press ACTION* to display MAIN MENU.Closed Caption Mode Selections
Caption Mode: CAP C1 or C2
A narration of selected TV
programs is displayed.
Check TV program listings for CC
(Closed...

25
TV Operation
1
  Caption On Mute Feature
Closed Caption narration, if available, is displayed when
MUTE button is pressed for silence.
Press ACTION to display MAIN MENU.
  When a disc supporting closed caption is
used, the subtitle and the closed caption
may overlap. In this case, turn the subtitle
or caption on mute mode off. (See page
48.)
2
1) Press

 to select
“TV.”
2) Press SET to display
SET UP TV screen.
6
Press ACTION three times to return to the normal
screen.
7
Press MUTE to...

26For assistance, please call : 1-800-211-PANA(7262) or send e-mail to :\
 [email protected]

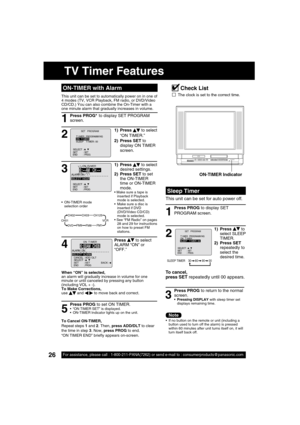

TV Timer Features
1
ON-TIMER with Alarm
This unit can be set to automatically power on in one of
4 modes (TV, VCR Playback, FM radio, or DVD/Video
CD/CD.) You can also combine the On-Timer with a
one minute alarm that gradually increases in volume.
  If no button on the remote or unit (including a  button used to turn off the alarm) is pressed
within 60 minutes after unit turns itself on, it...

27
TV Operation

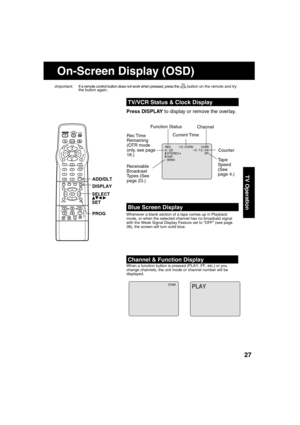

TV/VCR Status & Clock Display
Press DISPLAY to display or remove the overlay.

Blue Screen Display
When a function button is pressed (PLAY, FF, etc.) or you
change channels, the unit mode or channel number will be
displayed.
  Channel & Function Display
PLAY
Whenever a blank section of a tape comes up in Playback
mode, or when the selected channel has no broadcast signal
with the Weak Signal Display Feature set to “OFF” (see page
38), the screen will turn solid blue.
REC         1 2...

28For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

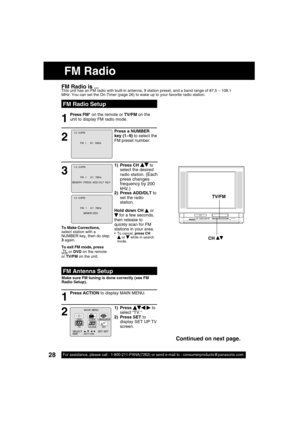

1) Press CH  to
select the desired
radio station.
(Each
press changes
frequency by 200
kHz.)
2) Press ADD/DLT to
set the radio
station.
FM Radio
FM  1     87.  5MHz
1 2 : 0 0PM
FM  1     8 7. 7MHz
MEMORY : PRESS  ADD / DLT  KEY
1 2 : 0 0PM
FM  1     8 7. 7MHz
MEMOR I ZED
1 2 : 0 0PM
M A I N  MENU
DVDLOCK
CH
CLOCKTV
LANGUAGE
END         : ACT I ON SELECT  :                            SET : SET...

29

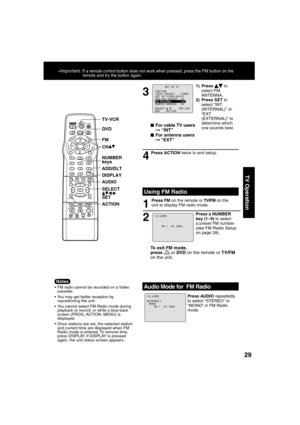

TV Operation
3
4
■For cable TV users➞ “INT”
■For antenna users
➞ “EXT”
2 1
To exit FM mode,
press  or DVD on the remote or TV/FM
on the unit.
Press a NUMBER
key (1~9) to select
a preset FM number
(see FM Radio Setup
on page 28).
Using FM Radio
Press ACTION twice to end setup.
Press FM on the remote or TV/FM on the
unit to display FM radio mode.
 FM radio cannot be recorded on a Video
cassette.
 You may get better reception by
repositioning the unit.
 You cannot select FM Radio mode during...

30For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

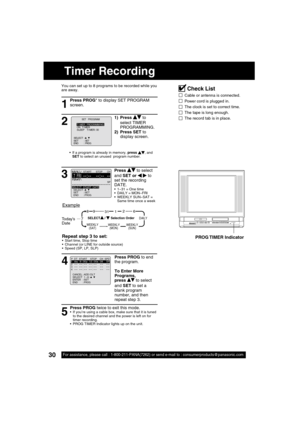

Timer Recording
Press PROG to end
the program.
To Enter More
Programs,
press
 to select
and SET to set a
blank program
number, and then
repeat step 3.
Press PROG twice to exit this mode.  If you’re using a cable box, make sure that it is tuned
to the desired channel and the power is left on for
timer recording.
  PROG TIMER Indicator lights up on the unit.
You can set up to 8 programs to...
