Panasonic Tv Dvd Vcr Combination Pv Df203 Operating Instructions

3131

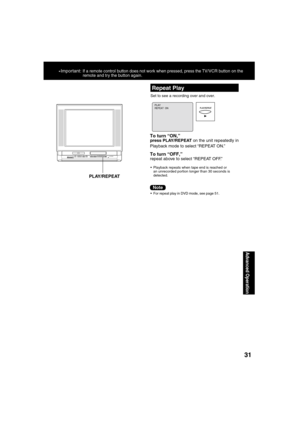

Advanced Operation
*Important: If a remote control button does not work when pressed, press the TV/VCR button on the
remote and try the button again.
  Repeat Play
Set to see a recording over and over.
PLAY REPEAT  ON
To turn “ON,”press PLAY/REPEAT on the unit repeatedly in
Playback mode to select “REPEAT ON.”
To turn “OFF,”repeat above to select “REPEAT OFF.”
  Playback repeats when tape end is reached or
an unrecorded portion longer than 30 seconds is
detected.
  For repeat play in DVD mode,...

32For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected] assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

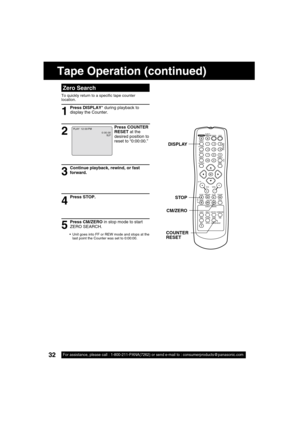

Tape Operation (continued)
  Zero Search
To quickly return to a speci c tape counter
location.
1
2
Press STOP.
4
5 3
Continue playback, rewind, or fast
forward.
Press COUNTER
RESET at the
desired position to
reset to “0:00:00.”
Press DISPLAY* during playback to
display the Counter.
Press...

3333

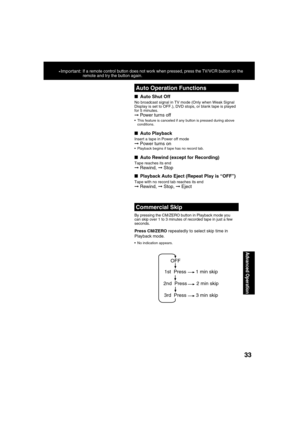

Advanced Operation
Press CM/ZERO repeatedly to select skip time in
Playback mode.
  Commercial Skip
By pressing the CM/ZERO button in Playback mode you
can skip over 1 to 3 minutes of recorded tape in just a few
seconds.
  No indication appears.
■  Auto Shut Off
No broadcast signal in TV mode (Only when Weak Signal
Display is set to OFF.), DVD stops, or blank tape is played
for 5 minutes.
➞ Power turns off   This feature is canceled if any button is pressed during above
conditions.
■  Auto...

34For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected] assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

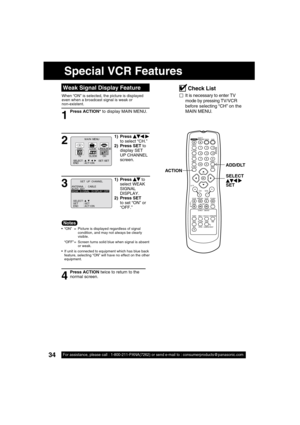

When “ON” is selected, the picture is displayed
even when a broadcast signal is weak or
non-existent.
  Weak Signal Display Feature
1
2
3
  “ON”  =  Picture is displayed regardless of signal
condition, and may not always be clearly
visible.
  “OFF” =  Screen turns solid blue when signal is absent...

3535

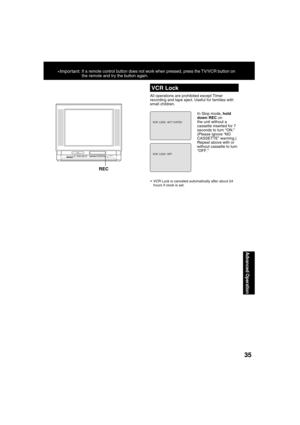

Advanced Operation
  VCR Lock
All operations are prohibited except Timer
recording and tape eject. Useful for families with
small children.
In Stop mode, hold
down REC on
the unit without a
cassette inserted for 7
seconds to turn “ON.”
(Please ignore “NO
CASSETTE” warning.)
Repeat above with or
without cassette to turn
“OFF.”
  VCR Lock is canceled automatically after about 24
hours if clock is set.
*Important: If a remote control button does not work when pressed, press the TV/VCR...

36For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected] assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

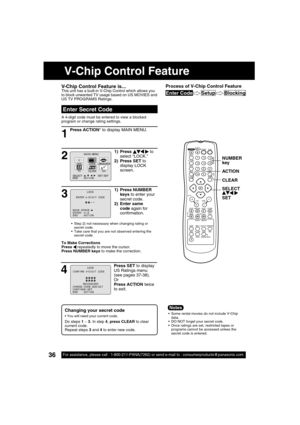

Press ACTION* to display MAIN MENU.

Enter Secret Code
A 4-digit code must be entered to view a blocked
program or change rating settings.
1
  Some rental movies do not include V-Chip
data.
  DO NOT forget your secret code.
  Once ratings are set, restricted tapes or
programs cannot be accessed...

3737

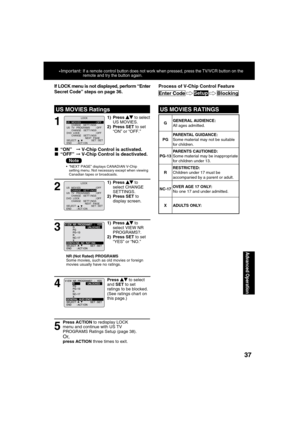

Advanced Operation
1
1) Press  to select
US MOVIES.
2) Press SET to set
“ON” or “OFF.”
If LOCK menu is not displayed, perform “Enter
Secret Code” steps on page 36.
■ “ON”
➞ V-Chip Control is activated.
■ “OFF” ➞ V-Chip Control is deactivated.

US MOVIES RatingsUS MOVIES RATINGS
*Important: If a remote control button does not work when pressed, press the TV/VCR button on the
remote and try the button again.
2
1) Press  to
select CHANGE
SETTINGS.
2) Press SET to
display screen.
3
1) Press  to...

38For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected] assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]

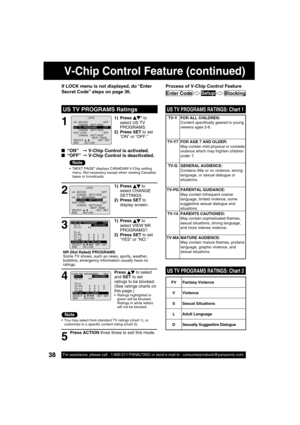

US TV PROGRAMS RATINGS: Chart 1
US TV PROGRAMS RATINGS: Chart 2
1
1) Press    * to
select US TV
PROGRAMS.
2) Press SET to set
“ON” or “OFF.”
  US TV PROGRAMS Ratings
If LOCK menu is not displayed, do “Enter
Secret Code” steps on page 36.
US   MOV I ES                       : OFF
       CHANGE...

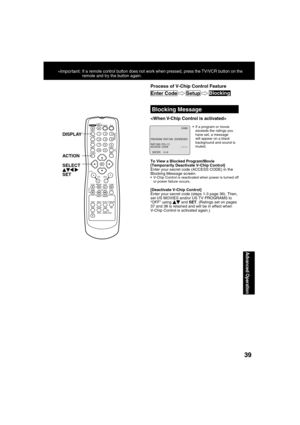

3939
Advanced Operation
*Important: If a remote control button does not work when pressed, press the TV/VCR button on the
remote and try the button again.
  Blocking Message
  If a program or movie
exceeds the ratings you
have set, a message
will appear on a black
background and sound is
muted.

To View a Blocked Program/Movie
[Temporarily Deactivate V-Chip Control]
Enter your secret code (ACCESS CODE) in the
Blocking Message screen.
  V-Chip Control is reactivated when power is turned off
or...

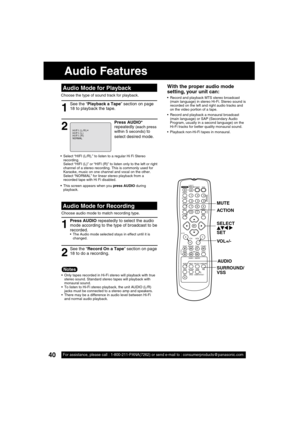

40For assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected] assistance, please call : 1-800-211-PANA(7262) or send e-mail to : [email protected]
With the proper audio mode
setting, your unit can:
 Record and playback MTS stereo broadcast
(main language) in stereo Hi-Fi. Stereo sound is
recorded on the left and right audio tracks and
on the video portion of a tape.
  Record and playback a monaural broadcast
(main language) or SAP...
