Panasonic Uf 7000 Operating Instructions Manual

11
Getting To Know
Your Machine

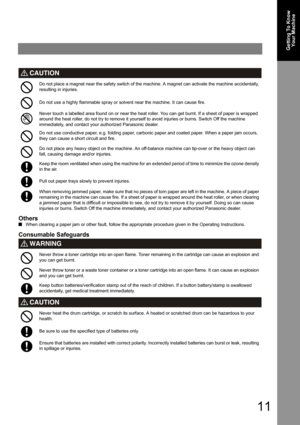

CAUTION!
Others
QWhen clearing a paper jam or other fault, follow the appropriate procedure given in the Operating Instructions.
Consumable Safeguards
WARNING!
CAUTION!
Do not place a magnet near the safety switch of the machine. A magnet can activate the machine accidentally,
resulting in injuries.
Do not use a highly flammable spray or solvent near the machine. It can cause fire.
Never touch a labelled area found on or near the heat roller. You can get burnt. If a...

12
Getting To Know Your Machine
Precautions

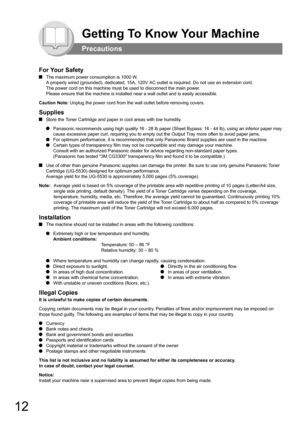

For Your Safety
QThe maximum power consumption is 1000 W.
A properly wired (grounded), dedicated, 15A, 120V AC outlet is required. Do not use an extension cord.
The power cord on this machine must be used to disconnect the main power.
Please ensure that the machine is installed near a wall outlet and is easily accessible.
Caution Note: Unplug the power cord from the wall outlet before removing covers.
Supplies
QStore the Toner Cartridge and paper in cool...

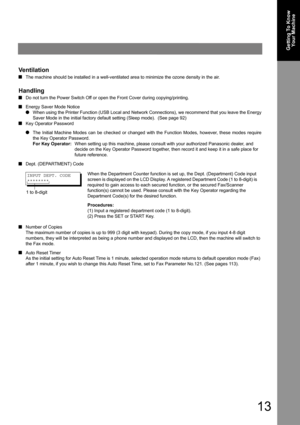

13
Getting To Know
Your Machine
Ventilation
QThe machine should be installed in a well-ventilated area to minimize the ozone density in the air.
Handling
QDo not turn the Power Switch Off or open the Front Cover during copying/printing.
QEnergy Saver Mode Notice
OWhen using the Printer Function (USB Local and Network Connections), we recommend that you leave the Energy
Saver Mode in the initial factory default setting (Sleep mode).
 (See page 92)
QKey Operator Password
OThe Initial Machine Modes can...

14
Getting To Know Your Machine
Precautions

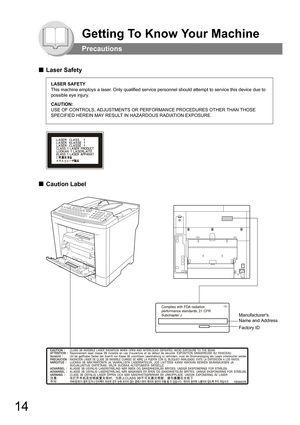

QLaser Safety
QCaution Label
LASER SAFETY
This machine employs a laser. Only qualified service personnel should attempt to service this device due to
possible eye injury.
CAUTION:
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
Manufacturers
Name and Address
Factory ID

15
Getting To Know
Your Machine

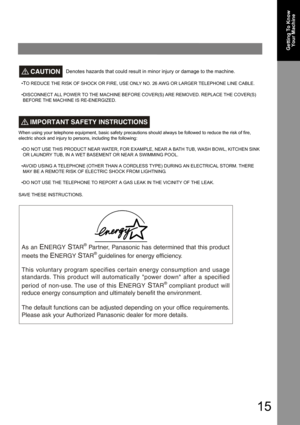

  Denotes hazards that could result in minor injury or damage to the machine.
•TO REDUCE THE RISK OF SHOCK OR FIRE, USE ONLY NO. 26 AWG OR LARGER TELEPHONE LINE CABLE.
•DISCONNECT ALL POWER TO THE MACHINE BEFORE COVER(S) ARE REMOVED. REPLACE THE COVER(S)
BEFORE THE MACHINE IS RE-ENERGIZED.
When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire,
electric shock and injury to persons, including the following:
•DO...

16
Getting To Know Your Machine
Precautions

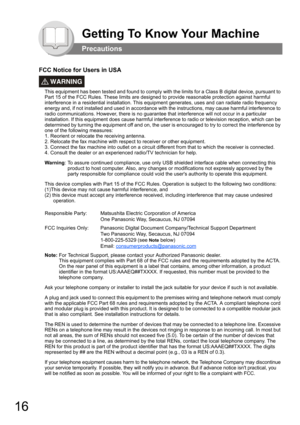

FCC Notice for Users in USA
WARNING!
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to...

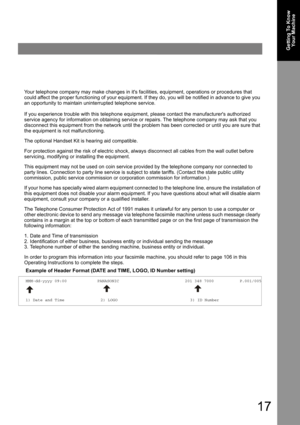

17
Getting To Know
Your Machine
see_P17
Your telephone company may make changes in its facilities, equipment, operations or procedures that
could affect the proper functioning of your equipment. If they do, you will be notified in advance to give you
an opportunity to maintain uninterrupted telephone service.
If you experience trouble with this telephone equipment, please contact the manufacturers authorized
service agency for information on obtaining service or repairs. The telephone company may ask...

18
Getting To Know Your Machine
Precautions

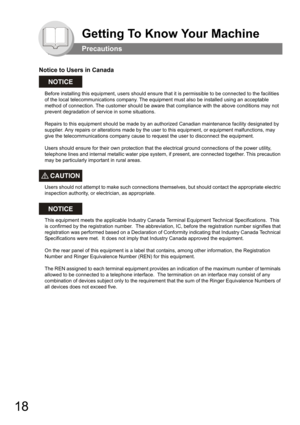

Notice to Users in Canada
NOTICE
Before installing this equipment, users should ensure that it is permissible to be connected to the facilities
of the local telecommunications company. The equipment must also be installed using an acceptable
method of connection. The customer should be aware that compliance with the above conditions may not
prevent degradation of service in some situations.
Repairs to this equipment should be made by an authorized Canadian...

19
Getting To Know
Your Machine

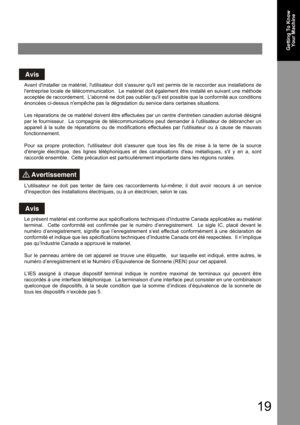

Avant dinstaller ce matériel, lutilisateur doit sassurer quil est permis de le raccorder aux installations de
lentreprise locale de télécommunication.  Le matériel doit également être installé en suivant une méthode
acceptée de raccordement.  Labonné ne doit pas oublier quil est possible que la conformité aux conditions
énoncées ci-dessus nempêche pas la dégradation du service dans certaines situations.


Les réparations de ce matériel doivent être effectuées par un...

20
Getting To Know Your Machine

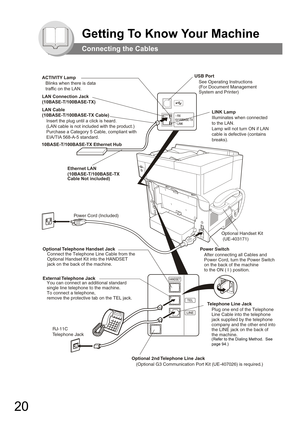

Connecting the Cables
Power Cord (Included)
Plug one end of the Telephone
Line Cable into the telephone
jack supplied by the telephone
company and the other end into
the LINE jack on the back of
the machine. After connecting all Cables and
Power Cord, turn the Power Switch
on the back of the machine
to the ON ( I ) position.
Telephone Line Jack Power Switch
(Optional G3 Communication Port Kit (UE-407026) is required.) Optional 2nd Telephone Line Jack
See Operating...
