Philips 46pfl8505h User Manual

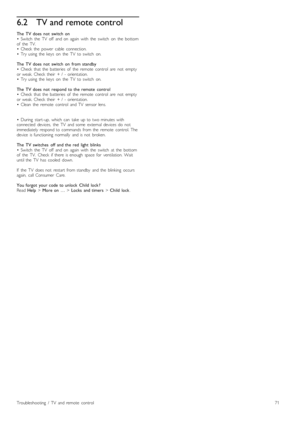

6.2TV and remote control
The   TV  does   not   switch   on•   Switch   the   TV   off   and  on   again  with   the   switch   on   the   bottomof   the   TV.•   Check   the   power   cable   connection.•   Try  using   the   keys   on   the   TV   to  switch   on.
The   TV  does   not   switch   on   from  standby•   Check   that  the   batteries   of   the   remote   control   are   not   emptyor  weak.  Check   their   +  /   -  orientation.•   Try  using   the   keys   on   the   TV   to  switch...

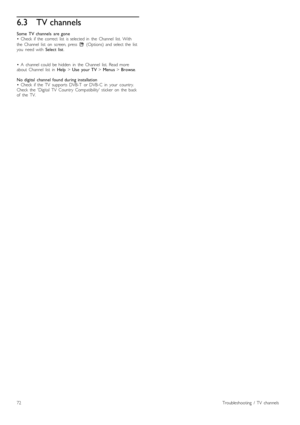

6.3TV channels
Some   TV  channels   are  gone•   Check   if  the   correct   list   is  selected  in   the   Channel   list.  With
the   Channel   list   on   screen,  press  o  (Options)  and  select  the   listyou   need  with  Select  list.
•   A   channel  could   be  hidden   in   the   Channel   list.  Read  moreabout   Channel   list   in  Help > Use   your  TV > Menus > Browse.
No  digital   channel  found  during  installation•   Check   if  the   TV   supports  DVB-T   or  DVB-C   in   your...

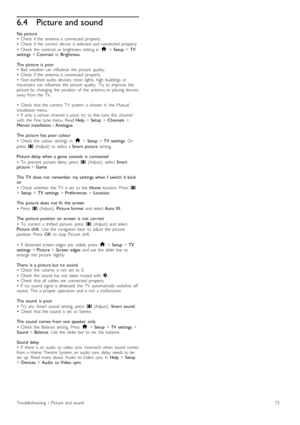

6.4Picture and sound
No  picture•   Check   if  the   antenna  is  connected   properly.•   Check   if  the   correct   device   is  selected  and  connected   properly.
•   Check   the   contrast   or  brightness   setting  in  h > Setup > TVsettings > Contrast  or Brightness.
The   picture  is   poor•   Bad   weather  can   influence   the   picture   quality.•   Check   if  the   antenna  is  connected   properly.•   Non -earthed   audio   devices,   neon   lights,   high   buildings   ormountains...

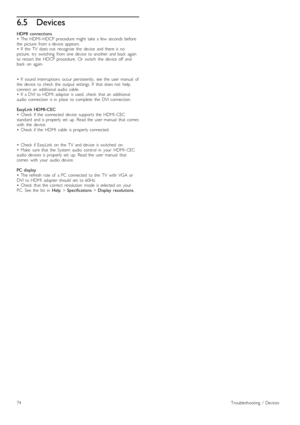

6.5Devices
HDMI  connections•   The  HDMI -HDCP  procedure  might  take  a  few  seconds   beforethe   picture   from  a  device   appears.•   If   the   TV   does  not   recognise   the   device   and  there  is  nopicture,   try   switching   from  one  device   to  another  and  back   againto  restart  the   HDCP  procedure.   Or   switch   the   device   off   andback   on   again.
•   If   sound   interruptions   occur  persistently,   see  the   user  manual   ofthe   device   to  check   the...

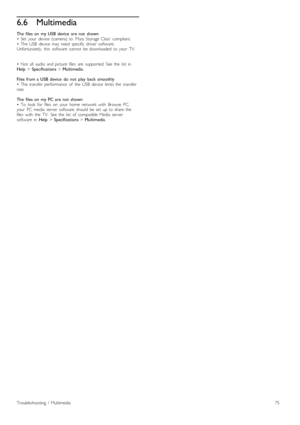

6.6Multimedia
The   files  on   my  USB  device   are  not   shown•   Set   your   device   (camera)  to  ‘Mass  Storage  Class’  compliant.•   The  USB   device   may   need  specific   driver   software.Unfortunately,   this   software   cannot   be  downloaded   to  your   TV.
•   Not   all   audio   and  picture   files   are   supported.  See  the   list   inHelp > Specifications > Multimedia.
Files  from  a  USB  device   do  not   play   back  smoothly•   The  transfer  performance   of   the...

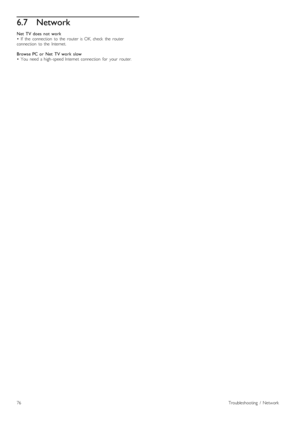

6.7Network
Net   TV  does   not   work•   If   the   connection   to  the   router   is  OK,  check   the   routerconnection   to  the   Internet.
Browse  PC  or   Net   TV  work   slow•   You   need  a  high -speed  Internet  connection   for   your   router.
76Troubleshooting   /   Network

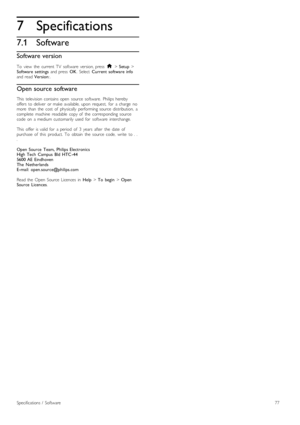

7
7.1
Specifications
Software
Software version
To   view   the   current  TV   software   version,  press  h > Setup >Software   settings  and  press  OK.  Select  Current  software  infoand  read Version:.
Open source software
This   television  contains open   source   software.  Philips  herebyoffers  to  deliver   or  make  available,  upon   request,   for   a  charge   nomore   than   the   cost   of   physically   performing  source   distribution,   acomplete   machine   readable   copy  of   the...

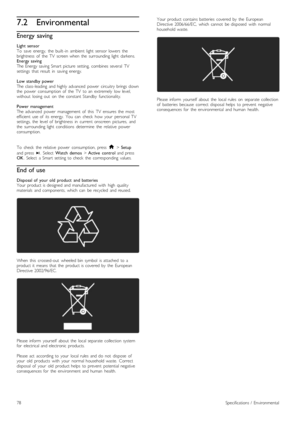

7.2Environmental
Energy saving
Light  sensorTo   save   energy,   the   built -in   ambient   light   sensor  lowers   thebrightness   of   the   TV   screen  when   the   surrounding  light   darkens.Energy  savingThe  Energy  saving  Smart  picture   setting,   combines  several   TVsettings   that  result   in   saving  energy.
Low  standby  powerThe  class-leading   and  highly  advanced   power   circuitry  brings  downthe   power   consumption  of   the   TV   to  an   extremely   low...

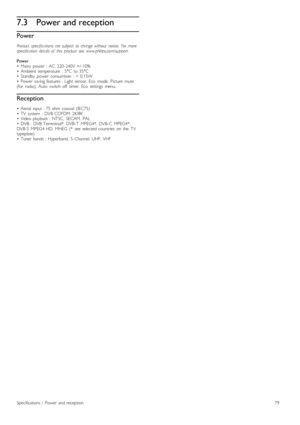

7.3Power and reception
Power
Product   specifications  are  subject   to  change  without   notice.   For   morespecification  details   of   this   product   see   www.philips.com/support.
Power•   Mains   power   :  AC   220 -240V  +/ -10%•   Ambient  temperature   :  5°C   to  35°C•   Standby   power   consumtion   :  <  0.15W•   Power   saving  features  :  Light  sensor,  Eco   mode,   Picture   mute(for   radio),  Auto   switch -off   timer,   Eco   settings   menu.
Reception
•   Aerial   input  :...

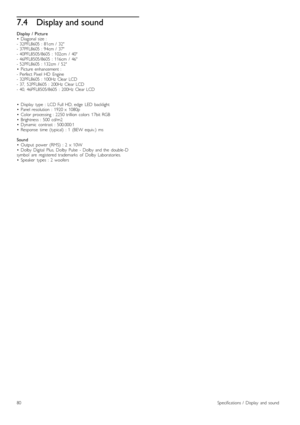

7.4Display and sound
Display   /   Picture•   Diagonal  size  :-  32PFL8605  :  81cm  /   32-  37PFL8605  :  94cm  /   37-  40PFL8505/8605   :  102cm   /   40-  46PFL8505/8605   :  116cm   /   46-  52PFL8605  :  132cm   /   52•   Picture   enhancement  :-  Perfect  Pixel  HD   Engine-  32PFL8605  :  100Hz   Clear  LCD-  37,  52PFL8605  :  200Hz   Clear  LCD-  40,  46PFL8505/8605   :  200Hz   Clear  LCD
•   Display   type   :  LCD  Full  HD,  edge   LED   backlight•   Panel  resolution   :  1920  x...
