Philips 47pfl7403d User Manual

ENGLISH
FRANÇAISE
ESPAÑOL
EN-9

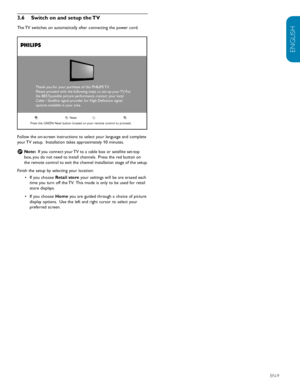

3.6  Switch	on	and	setup	the	 TV
The TV switches on automatically after connecting the power cord.

Press the GREEN Next button located on your remote control to proceed.
Thank you for your purchase of this PHILIPS TV.
Please proceed with the following steps to set-up  your TV .  Fo r
the BESTpossible picture performanc e, contact  your local
Cable / Satellite signal pr ovider for High Definition signal
options  available in yo ur area.
Next
Follow the on-screen...

EN-10
ENGLISH
FRANÇAISE
ESPAÑOL

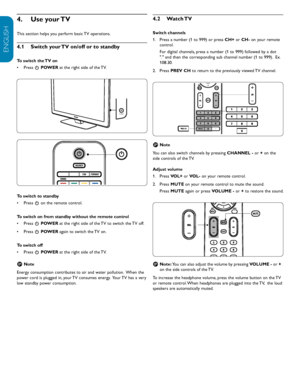

Use your TV
4.
This section helps you perform basic TV operations.
Switch	your	 TV	on/off	or	to	standby
4.1
To	switch	the	 TV	on
Press
•	 . POWER  at the right side of the TV.
POWER
To	switch	to	standby
Press
•	 . on the remote control.
To	switch	on	from	standby	without	the	remote	 control
Press
•	 . POWER  at the right side of the TV to switch the TV off.
Press
•	 . POWER  again to switch the TV on.
To	switch	off Press
•	 . POWER  at the right side of the...

ENGLISH
FRANÇAISE
ESPAÑOL
EN-11

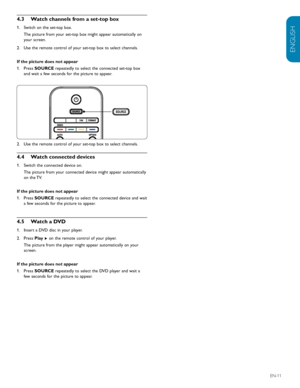

Watch channels from a set-top box
4.3
Switch on the set-top box.
1.
The picture from your set-top box might appear automatically on
your screen.
Use the remote control of your set-top box to select channels.
2.
If the picture does not appear Press 1.
  SOURCE repeatedly to select the connected set-top box
and wait a few seconds for the picture to appear.
Use the remote control of your set-top box to select channels.
2.
4.4  Watch connected devices
Switch the...

EN-12
ENGLISH
FRANÇAISE
ESPAÑOL

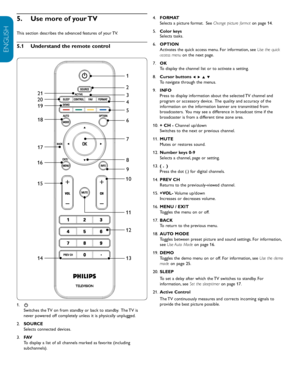

5.   Use more of your TV
This section describes the advanced features of your TV.
5.1  Understand the remote control
21
4
2
3
9
15 6
12 13
16
18
14 1
11
19
8 7
17
10
20
5
.
1.
Switches the TV on from standby or back to standby.  The TV is
never powered off completely unless it is physically unplugged.
SOURCE
2.
Selects connected devices.
FAV
3.
To display a list of all channels marked as favorite (including
subchannels).  FORMAT
4.
Selects a picture...

ENGLISH
FRANÇAISE
ESPAÑOL

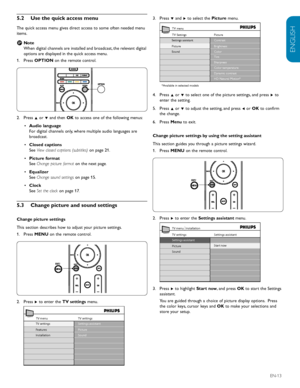

EN-13
5.2  Use	the	quick	access	menu
The quick access menu gives direct access to some often needed menu
items.
Note

D
When digital channels are installed and broadcast, the relevant digital
options are displayed in the quick access menu.
Press 1.
  OPTION on the remote control.
Press 2.
  Î or ï and then  OK to access one of the following menus:
Audio language
•
For digital channels only, where multiple audio languages are
broadcast.
Closed captions
•
See  View...

EN-14
ENGLISH
FRANÇAISE
ESPAÑOL

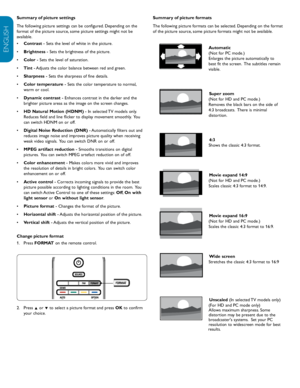

Summary of picture settings
The following picture settings can be configured. Depending on the
format of the picture source, some picture settings might not be
available.
•	 Contrast - Sets the level of white in the picture.
•	 Brightness  - Sets the brightness of the picture.
•	 Color  - Sets the level of saturation.
•	 Tint - Adjusts the color balance between red and green.
•	 Sharpness  - Sets the sharpness of fine details.
•	 Color temperature  - Sets the color...

ENGLISH
FRANÇAISE
ESPAÑOL
EN-15
Change sound settings
This section describes how to adjust your sound settings.
Press 1.
  MENU on the remote control and select  TV settings >
Sound.
Sound
Equalizer
Balance
Digital audio language
Alternate audio
Mono/Stereo
Incredible surround
AVL
BBE
TV Settings TV menu
Settings assistant
Sound
Press 2.
  Î or ï to highlight a sound setting and press  Æ to select the
setting.
Press 3.
  Î or ï to adjust the setting, and press  OK to confirm the
change....

EN-16
ENGLISH
FRANÇAISE
ESPAÑOL

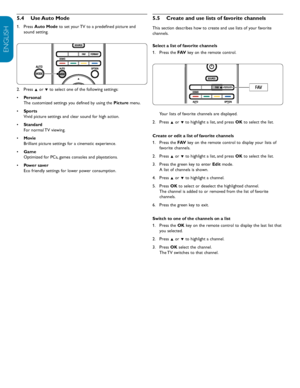

5.5  Create and use lists of favorite channels
This section describes how to create and use lists of your favorite
channels.
Select a list of favorite channels
Press the
1.   FAV key on the remote control.
Your lists of favorite channels are displayed.
Press 2.
  Î or ï to highlight a list, and press  OK to select the list.
Create or edit a list of favorite channels Press the
1.   FAV key on the remote control to display your lists of
favorite channels.
Press 2.
  Î...

ENGLISH
FRANÇAISE
ESPAÑOL
EN-17

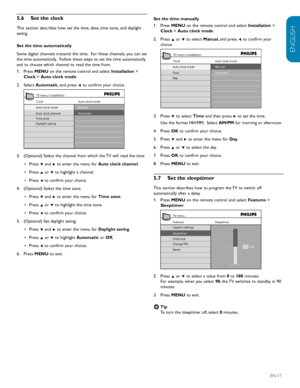

5.6  Set the clock
This section describes how set the time, date, time zone, and daylight
saving.
Set the time automatically
Some digital channels transmit the time.  For these channels, you can set
the time automatically.  Follow these steps to set the time automatically
and to choose which channel to read the time from.
Press1.
   MENU on the remote control and select  Installation >
Clock >  Auto clock mode.
Select 2.
  Automatic, and press  Í to confirm your...

EN-18
ENGLISH
FRANÇAISE
ESPAÑOL

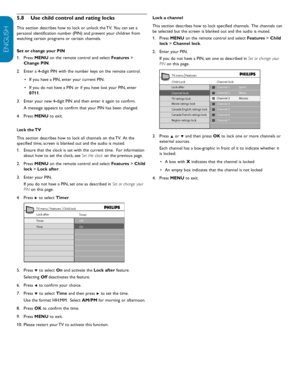

Use child control and rating locks
5.8
This section describes how to lock or unlock the TV.  You can set a
personal identification number (PIN) and prevent your children from
watching certain programs or certain channels.
Set or change your PIN
Press1.
   MENU  on the remote control and select  Features >
Change PIN.
Enter a 4-digit PIN with the number keys on the remote control.
2.
If you have a PIN, enter your current PIN.
•
If you do not have a PIN or if you have...
