User Manual BDL6531ERETURN TO THE CONTENTS

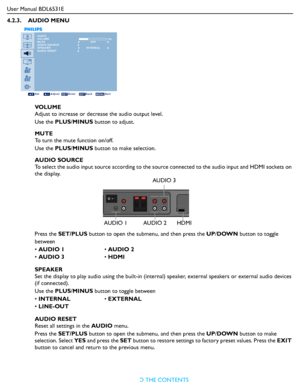

4.2.3.    AUDIO MENU
AUDIO
VOLUME
MUTE
AUDIO SOURCE
SPEAKER
AUDIO RESET  30
Sel Adjust Enter Back Quit
OFF
INTERNAL
VO L U M E
Adjust to increase or decr
ease the audio output level.
Use the  PLUS/MINUS  button to adjust.
MUTE
To turn the mute function on/off.
Use the  PLUS/MINUS  button to make selection.
AUDIO SOURCE
To select the audio input source ac cording to the source connected to th e audio input and HDMI sockets on
the display.
Press the  SET/PLUS...

User Manual BDL6531E
RETURN TO THE CONTENTS

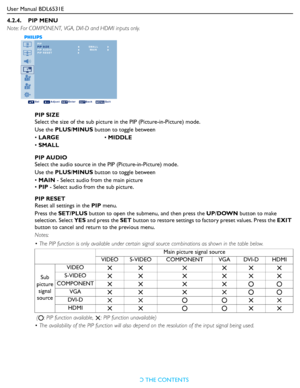

4.2.4.    PIP MENU
Note: For COMPONENT, VGA, DVI-D and HDMI inputs only.
PIP SIZE
Select the size of the sub picture in the PIP (Picture-in-Picture) mode.
Use the PLUS/MINUS button to toggle between
PIP AUDIO
Select the audio source in the PIP (Picture-in-Picture) mode.
Use the PLUS/MINUS button to toggle between
• MAIN - Select audio from the main picture
• PIP - Select audio from the sub picture.
PIP RESET
Reset all settings in the PIP menu.
Press the...

User Manual BDL6531ERETURN TO THE CONTENTS

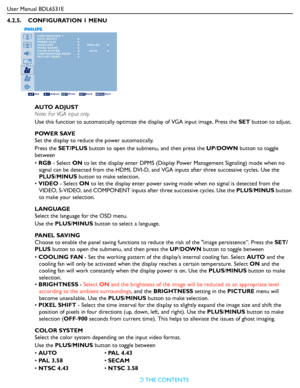

4.2.5.    CONFIGURATION 1 MENU
CONFIGURATION 1
AUTO ADJUST
POWER SAVE
LANGUAGE
PANEL SAVING
COLOR SYSTEM
CONFIGURATION RESET
FACTORY RESET
Sel Adjust Enter Back Quit
AUTO
ENGLISH
AUTO ADJUST
Note: For VGA input only.
Use this function to automatically optimize the display of VGA input image. Press the SET button to adjust.
POWER SAVE
Set the display to reduce the power automatically.
Press the  SET/PLUS  button to open the subm enu, and then press the UP/DOWN...

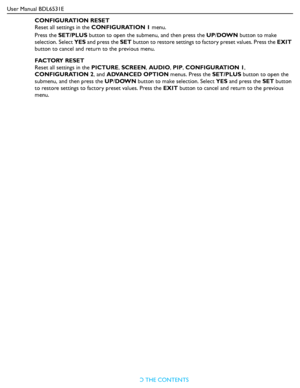

User Manual BDL6531E
RETURN TO THE CONTENTS
CONFIGURATION RESET
Reset all settings in the CONFIGURATION 1 menu.
Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to make
selection. Select YES and press the SET button to restore settings to factory preset values. Press the EXIT
button to cancel and return to the previous menu.
FACTORY RESET
Reset all settings in the PICTURE, SCREEN, AUDIO, PIP, CONFIGURATION 1,
CONFIGURATION 2, and ADVANCED OPTION menus. Press the...

User Manual BDL6531ERETURN TO THE CONTENTS

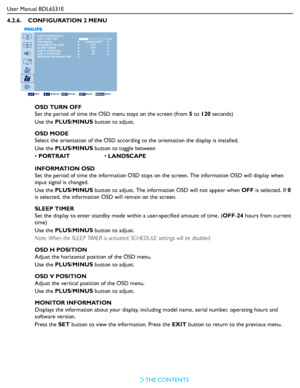

4.2.6.    CONFIGURATION 2 MENU
CONFIGURATION 2
OSD TURN OFF
OSD MODE
INFORMATION OSD
SLEEP TIMER
OSD H POSITION
OSD V POSITION
MONITOR INFORMATION
Sel Adjust Enter Back Quit
LANDSCAPE 60
5050
OFFOFF
OSD TURN OFF
Set the period of time the OSD
menu stays on the screen (from 5 to  120  seconds)
Use the  PLUS/MINUS  button to adjust.
OSD MODE
Select the orientation of the OSD according  to the orientation the display is installed.
Use the  PLUS/MINUS  button to...

User Manual BDL6531ERETURN TO THE CONTENTS

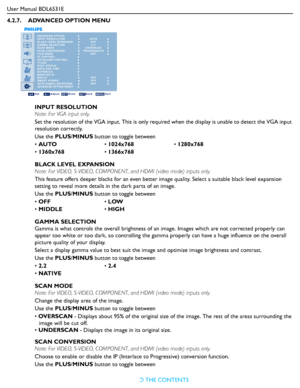

4.2.7.    ADVANCED OPTION MENU
ADVANCED OPTION
MONITOR ID INPUT RESOLUTION
BLACK LEVEL EXPANSION
GAMMA SELECTION
SCAN MODE
SCAN CONVERSION
FILM MODE
IR CONTROL
KEYBOARD CONTROL
TILING
H E AT  S TAT U S
DATE AND TIME
SCHEDULE
Sel Adjust Enter Back Quit
OFF
PROGRESSIVEOFF
2.2OVERSCAN
SMART POWER  DDC/CI
ADVANCED OPTION RESET AUTO SIGNAL DETECTION
AUTO
OFFOFFOFF
INPUT RESOLUTION
Note: For VGA input only.
Set the resolution of the VGA input. This is only required...

User Manual BDL6531E
RETURN TO THE CONTENTS
• PROGRESSIVE - Enable the IP conversion function (recommended). Once enabled, the interlace input
signal will be converted to progressive format for better display quality.
• INTERLACE: Disable the IP function. This mode is suitable for displaying motion pictures, but it increases
the chance of image retention.
FILM MODE
Note: For VIDEO, S-VIDEO, COMPONENT, and HDMI (video mode) inputs only.
Choose to turn on or off the film mode frame conversion function....

User Manual BDL6531E
RETURN TO THE CONTENTS

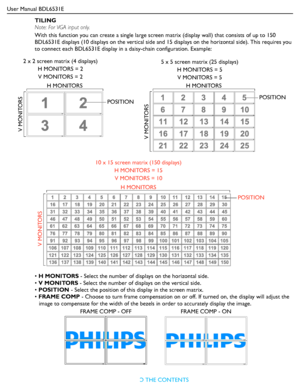

TILING
Note: For VGA input only.
With this function you can create a single large screen matrix (display wall) that consists of up to 150
BDL6531E displays (10 displays on the vertical side and 15 displays on the horizontal side). This requires you
to connect each BDL6531E display in a daisy-chain configuration. Example:
• H MONITORS - Select the number of displays on the horizontal side.
• V MONITORS - Select the number of displays on the vertical side.
•...

User Manual BDL6531E
RETURN TO THE CONTENTS

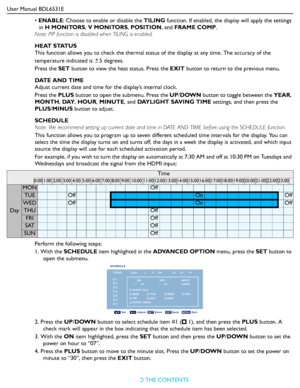

• ENABLE: Choose to enable or disable the TILING function. If enabled, the display will apply the settings
in H MONITORS, V MONITORS, POSITION, and FRAME COMP.
Note: PIP function is disabled when TILING is enabled.
H E AT  S TAT U S
This function allows you to check the thermal status of the display at any time. The accuracy of the
temperature indicated is  5 degrees.
Press the SET button to view the heat status. Press the EXIT button to return to the...

User Manual BDL6531E
RETURN TO THE CONTENTS

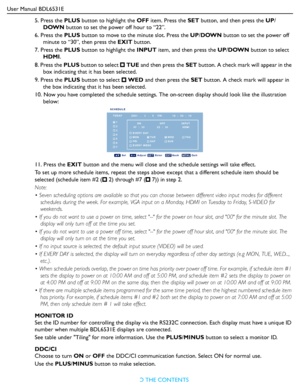

5. Press the PLUS button to highlight the OFF item. Press the SET button, and then press the UP/
DOWN button to set the power off hour to “22”.
6. Press the PLUS button to move to the minute slot. Press the UP/DOWN button to set the power off
minute to “30”, then press the EXIT button.
7. Press the PLUS button to highlight the INPUT item, and then press the UP/DOWN button to select
HDMI.
8. Press the PLUS button to select  TUE and then press the SET button. A...
