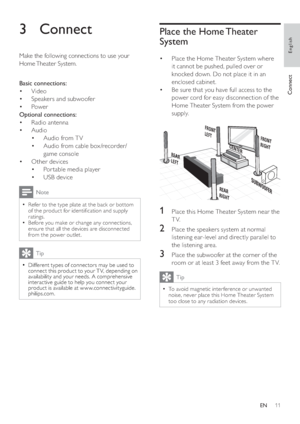

Place the Home Theater
System



Place the Home Theater System where  •
it cannot be pushed, pulled over or
knocked down. Do not place it in an
enclosed cabinet.



Be sure that you have full access to the  •
power cord for easy disconnection of the
Home Theater System from the power
supply.











1  Place this Home Theater System near the
TV.



2  Place the speakers system at normal
listening ear-level and directly parallel to
the listening area.



3...

12

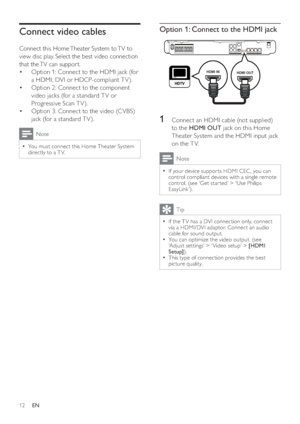

Option 1: Connect to the HDMI jack
1  Connect an HDMI cable (not supplied)
to the  HDMI OUT
 jack on this Home
Theater System and the HDMI input jack
on the T V.
Note
  If your device suppor ts HDMI CEC , you can   •
control compliant devices with a single remote
control. (see ‘Get star ted’ > ‘Use Philips
EasyLink’).
Tip
  If the T V has a DVI connection only, connect   •
via a HDMI/DVI adaptor. Connect an audio
cable for sound output.

You can optimize the video output. (see
  •
‘Adjust...

13

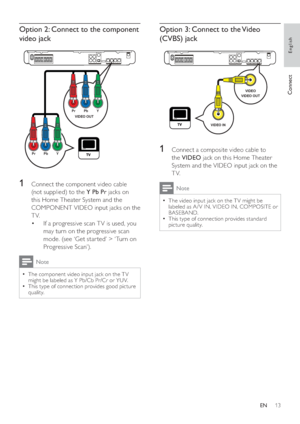

Option 3: Connect to the Video
(CVBS) jack
1  Connect a composite video cable to
the  VIDEO
 jack on this Home Theater
System and the VIDEO input jack on the
TV.
Note
  The video input jack on the T V might be   •
labeled as A / V IN, VIDEO IN, COMPOSITE or
BASEBAND.

This type of connection provides standard
  •
picture quality.






VIDEO
VIDEO OUT
VIDEO IN
Option 2: Connect to the component
video jack
1  Connect the component video cable
(not supplied) to the  Y Pb Pr
 jacks on...

14







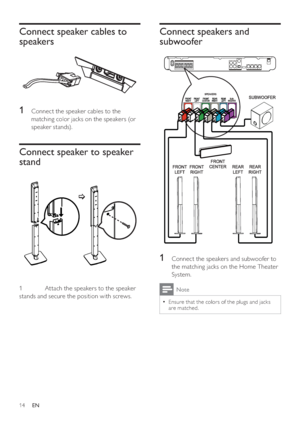

Connect speakers and
subwoofer









1  Connect the speakers and subwoofer to
the matching jacks on the Home Theater
System.
  Note

Ensure that the colors of the plugs and jacks   •
are matched.
Connect speaker cables to
speakers







1  Connect the speaker cables to the
matching color jacks on the speakers (or
speaker stands).







Connect speaker to speaker
stand



1  Attach the speakers to the speaker
stands and secure the...

15

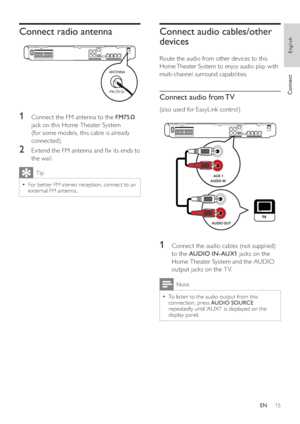

Connect audio cables/other
devices

Route the audio from other devices to this
Home Theater System to enjoy audio play with
multi-channel surround capabilities.
Connect audio from TV

(also used for EasyLink control)
1  Connect the audio cables (not supplied)
to the  AUDIO IN-AUX1
 jacks on the
Home Theater System and the AUDIO
output jacks on the T V.
Note
  To listen to the audio output from this   •
connection, press  AUDIO SOURCE

repeatedly until ‘AUX1’ is displayed on the...

16

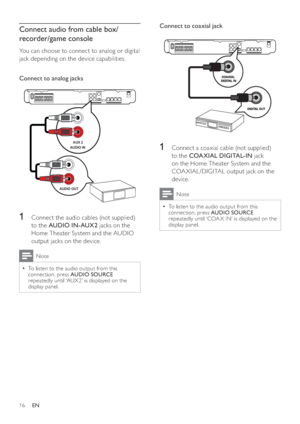

Connect to coaxial jack
1  Connect a coaxial cable (not supplied)
to the  COA XIAL DIGITAL-IN
 jack
on the Home Theater System and the
COA XIAL /DIGITAL output jack on the
device.
Note
  To listen to the audio output from this   •
connection, press  AUDIO SOURCE

repeatedly until ‘COA X IN’ is displayed on the
display panel.


Connect audio from cable box/
recorder/game console

You can choose to connect to analog or digital
jack depending on the device capabilities.


Connect to...

17

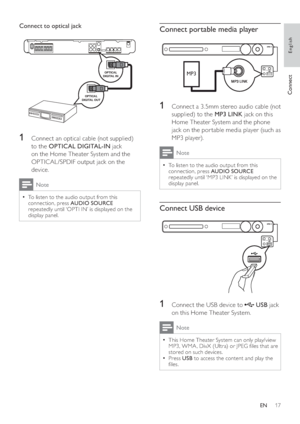

Connect portable media player
1  Connect a 3. 5mm stereo audio cable (not
supplied) to the  MP3 LINK
 jack on this
Home Theater System and the phone
jack on the por table media player (such as
MP3 player).
Note
  To listen to the audio output from this   •
connection, press  AUDIO SOURCE

repeatedly until ‘MP3 LINK’ is displayed on the
display panel.
Connect USB device
1  Connect the USB device to


 USB
 jack
on this Home Theater System.
Note
  This Home Theater System can only...

18

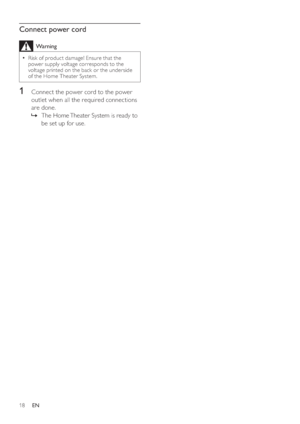

Connect power cord
Warning
  Risk of product damage! Ensure that the   •
power supply voltage corresponds to the
voltage printed on the back or the underside
of the Home Theater System.
1  Connect the power cord to the power
outlet when all the required connections
are done.



The Home Theater System is ready to    »
be set up for use.
EN


19

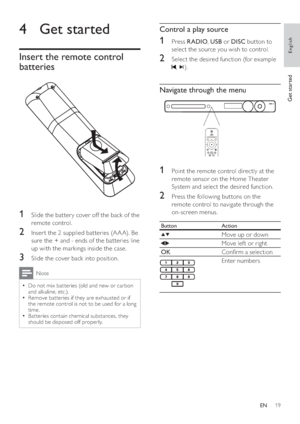

Control a play source



1 Press

RADIO
,  USB
 or  DISC
 button to
select the source you wish to control.



2  Select the desired function (for example

,
).







Navigate through the menu







1  Point the remote control directly at the
remote sensor on the Home Theater
System and select the desired function.



2  Press the following buttons on the
remote control to navigate through the
on-screen menus.
  Button  Action



Move up or down...

20

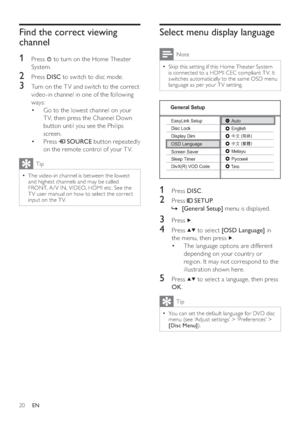

Select menu display language
Note
  Skip this set ting if this Home Theater System   •
is connected to a HDMI CEC compliant T V. It
switches automatically to the same OSD menu
language as per your T V set ting.
1 Press  DISC
.
2 Press

 SETUP
.



    »[General Setup]
 menu is displayed.
3 Press
.
4 Press

 to select  [OSD Language]
 in
the menu, then press
  .



The language options are different  •
depending on your countr y or
region. It may not correspond to the...
