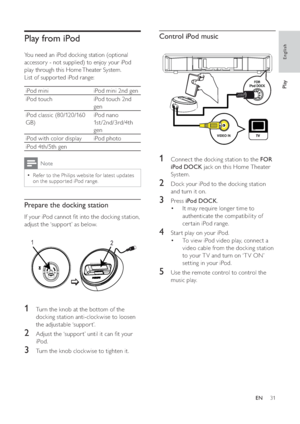

31






Control iPod music











1  Connect the docking station to the  FOR
iPod DOCK
 jack on this Home Theater
System.



2  Dock your iPod to the docking station
and turn it on.



3 Press  iPod DOCK
.



It may require longer time to  •
authenticate the compatibility of
cer tain iPod range.





4  Star t play on your iPod.



To view iPod video play, connect a  •
video cable from the docking station
to your T V and turn on ‘T V ON’...

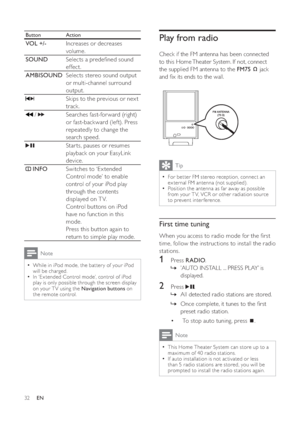

32





Play from radio


Check if the FM antenna has been connected
to this Home Theater System. If not, connect
the supplied FM antenna to the  FM75


 jack
and  x its ends to the wall.




Tip

For bet ter FM stereo reception, connect an   •
ex ternal FM antenna (not supplied).

Position the antenna as far away as possible
  •
from your T V, VCR or other radiation source
to prevent interference.




First time tuning


When you access to radio mode for the  rst...

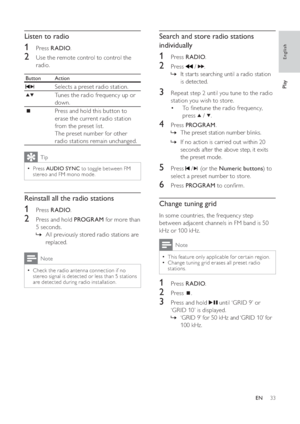

33




Search and store radio stations
individually



1 Press  RADIO
.




2 Press
 /
.



It star ts searching until a radio station    »
is detected.





3  Repeat step 2 until you tune to the radio
station you wish to store.



To  netune the radio frequency,  •
press
   /
.






4 Press  PROGRAM
.



The preset station number blinks.   »



If no action is carried out within 20    »
seconds after the above step, it exits
the preset...

34

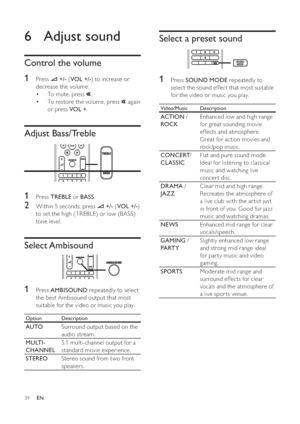

Select a preset sound







1 Press  SOUND MODE
 repeatedly to
select the sound effect that most suitable
for the video or music you play.
  Video/Music   Description


ACTION
 /
  ROCK  Enhanced low and high range
for great sounding movie
effects and atmosphere.
Great for action movies and
rock/pop music.

CONCERT


/
  CLASSIC  Flat and pure sound mode.
Ideal for listening to classical
music and watching live
concer t disc.

DRAMA
 /
  JAZZ  Clear mid and...

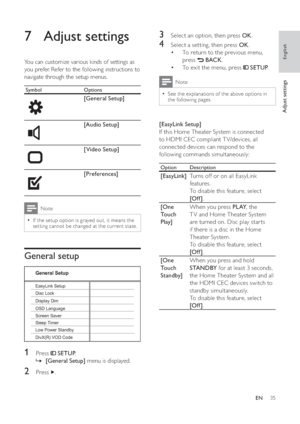

35



3  Select an option, then press  OK
.




4  Select a setting, then press  OK
.



To return to the previous menu,  •
press

 BACK
.



To exit the menu, press   •


 SETUP
.

Note

See the explanations of the above options in   •
the following pages.










[EasyLink Setup]

If this Home Theater System is connected
to HDMI CEC compliant T V/devices, all
connected devices can respond to the
following commands simultaneously:
  Option...

36

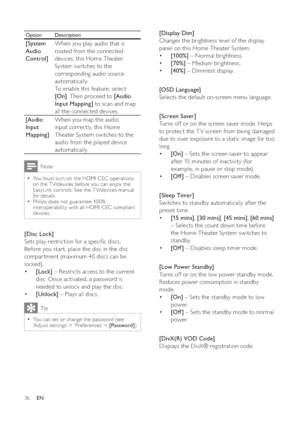

[Display Dim]

Changes the brightness level of the display
panel on this Home Theater System.



  • [10 0%]
– Normal brightness.



  • [70%]
– Medium brightness.



  • [4 0%]
 – Dimmest display.










[OSD Language]

Selects the default on-screen menu language.








[Screen Saver]

Turns off or on the screen saver mode. Helps
to protect the T V screen from being damaged
due to over exposure to a static image for too
long....

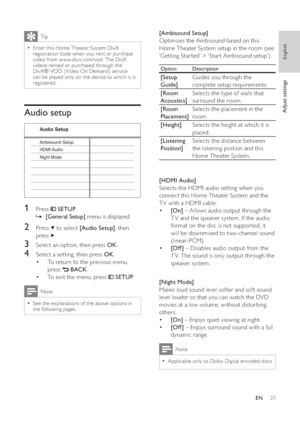

37




[Ambisound Setup]

Optimizes the Ambisound based on this
Home Theater System setup in the room (see
‘Getting Star ted’ > ‘Star t Ambisound setup’).
  Option  Description


[Setup
Guide]  Guides you through the
complete setup requirements.

[Room
Acoustics]  Selects the type of walls that
surround the room.

[Room
Placement]  Selects the placement in the
room.

[Height]
Selects the height at which it is
placed.

[Listening
Position]  Selects the distance between...

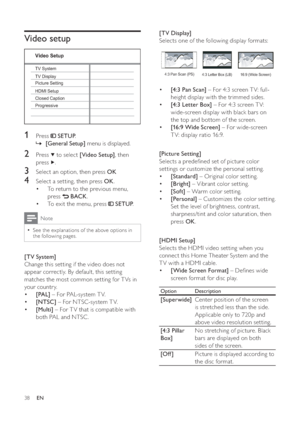

38




[TV Display]

Selects one of the following display formats:







  • [4:3 Pan Scan]
 – For 4:3 screen T V: full-
height display with the trimmed sides.



  • [4:3 Let ter Box]
 – For 4:3 screen T V:
wide-screen display with black bars on
the top and bottom of the screen.



  • [16:9 Wide Screen]
 – For wide-screen
T V: display ratio 16:9.









[Picture Setting]

Selects a prede ned set of picture color
settings or customize the personal...

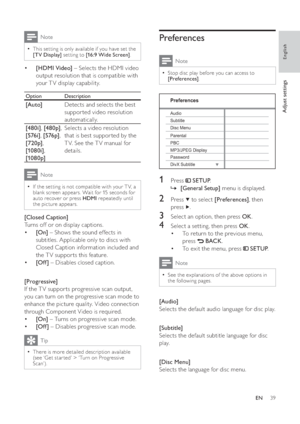

39





Preferences

Note

Stop disc play before you can access to   •

[Preferences]
.











1 Press

 SETUP
.



    »[General Setup]
 menu is displayed.






2 Press
 to select  [Preferences]
, then
press
  .




3  Select an option, then press  OK
.




4  Select a setting, then press  OK
.



To return to the previous menu,  •
press

 BACK
.



To exit the menu, press   •


 SETUP
.

Note

See the explanations of...

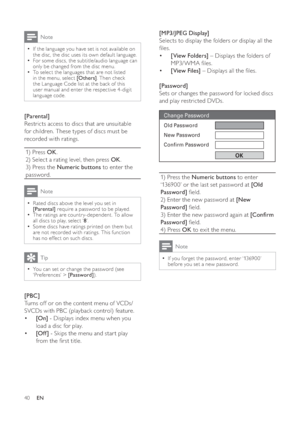

40




[MP3/JPEG Display]

Selects to display the folders or display all the
 les.



  • [View Folders]
 – Displays the folders of
MP3/WMA  les.



  • [View Files]
 – Displays all the  les.






[Password]

Sets or changes the password for locked discs
and play restricted DVDs.



1) Press the  Numeric buttons
 to enter
‘136900’ or the last set password at  [Old
Password]
  eld.

2) Enter the new password at  [New
Password]
  eld.

3) Enter...
