Planar Pd8150 Projector User Manual

Installation
Planar PD8130/PD8150 Installation/Operation Manual 27
PRELI
MINAR
Y
RS-232 Controller
Connection
Connect a PC or home theater control/automation system (if present) to the
RS-232 port on the PD8130/PD8150; see
Figure 3-11. Use a standard, 9-pin serial
cable, wired straight-through.
For more information about using this connection, refer to Serial
Communications on page 67.
Figure 3-11. RS-232 Control System Connection
12345
7896
to Automation/
Control System
or PC
2 Transmit Data
3...

Installation
28 Planar PD8130/PD8150 Installation/Operation Manual
PRELI
MINAR
Y
Connecting 12-Volt
Trigger Output to External
Theater Equipment
If your home theater contains a retractable screen, screen mask or other 12-volt
trigger-activated equipment, connect it to the 12-volt trigger output(s) as
shown in
Figure 3-12.
Figure 3-12. 12-Volt Trigger Output Connection
Connecting an External IR
Receiver
If infrared signals from the remote control cannot reach the projector due to
excessive...

Installation
Planar PD8130/PD8150 Installation/Operation Manual 29
PRELI
MINAR
Y

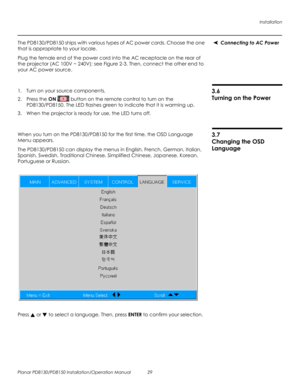

Connecting to AC PowerThe PD8130/PD8150 ships with various types of AC power cords. Choose the one
that is appropriate to your locale.
Plug the female end of the power cord into the AC receptacle on the rear of
the projector (AC 100V ~ 240V); see
Figure 2-3. Then, connect the other end to
your AC power source.
3.6
Turning on the Power
1. Turn on your source components.
2. Press the ON  button on the remote control...

Installation
30 Planar PD8130/PD8150 Installation/Operation Manual
PRELI
MINAR
Y
3.8
Adjusting the Picture
Orientation
If the PD8130/PD8150 is installed behind the screen, you must change the
picture orientation to match the installation method. To do this, press MENU on
the remote control. Then, select
System from the Main Menu.
Rear ProjectionIf the projector is used in a rear-projection application (see Figure 3-6), press
repeatedly to select Rear Projection from the System Menu. Press  or  to...

Installation
Planar PD8130/PD8150 Installation/Operation Manual 31
PRELI
MINAR
Y
2. Carefully lift the badge up, then
away from the projector.







Vertical Lens Shift: To shift the projected
image vertically, insert the provided hex
wrench into the hole at the top of the
projector (directly above the lens). Then,
turn the wrench as shown to shift the lens
in the desired direction.





Horizontal Lens Shift (PD8150 only): To
shift the projected image horizontally,
insert the...

Installation
32 Planar PD8130/PD8150 Installation/Operation Manual
PRELI
MINAR
Y
Notes:

Operation
Planar PD8130/PD8150 Installation/Operation Manual 33
PRELI
MINAR
Y
4.1
Selecting Video Memory
Press M1, M2 or M3 to recall settings from a memory preset. Then, press ENTER to
confirm your selection. Or, to cancel the operation, press
 to select Cancel
and press ENTER.
You can assign each of these three buttons to any
of four memory presets. For more information, refer
to
M1 Key / M2 Key / M3 Key on page 57.
4.2
Selecting an Aspect
Ratio
Press the aspect ratio () button to select...

Operation
34 Planar PD8130/PD8150 Installation/Operation Manual
PRELI
MINAR
Y
4.4
Using Picture-In-Picture
(PIP)
For PIP purposes, there are three groups of inputs
separated by their display modes:
• Video (SD) group: Video, S-Video and SCART
inputs.
• Graphic (HD) group:  Component 1, Component 2 and RGB inputs.
• Digital Video group:  HDMI 1 and HDMI 2 inputs.
PIP shows one input from any of these groups within or beside one input from
either of the other two groups.
•Press PIP to enable the PIP...

Operation
Planar PD8130/PD8150 Installation/Operation Manual 35
PRELI
MINAR
Y
4.5
Using the On-Screen
Menus
1. Press the MENU button on the remote control or system keypad to display
the Main Menu.
2. There are six menus. Press  or  to select a sub-menu.
3. Press  or  to select a sub-menu item.
4. For each sub-menu item, the currently-selected value appears in white text
or is otherwise highlighted. Press
 or  to choose a setting for that item, or
press ENTER to go to another sub-menu.
5. Press...

Operation
36 Planar PD8130/PD8150 Installation/Operation Manual
PRELI
MINAR
Y
Figure 4-1. PD8130/PD8150 OSD Menu Structure
Main
Aspect Ratio16:9, 4:3, Letterbox, 4:3
Narrow or Native
MemoryRecall Memory
Save Settings
Save ISF
Brightness
0 ... 50* ... 100 Contrast
Color Saturation
Color Tint
SharpnessSharpness
Sharpness Mode
(Simple or Advanced)
Horizontal Sharpness
Vertical Sharpness
Diagonal Sharpness
Sharpness Overshoot
Horizontal Texture
Vertical Texture
Diagonal Texture
Texture Overshoot
Noise...
